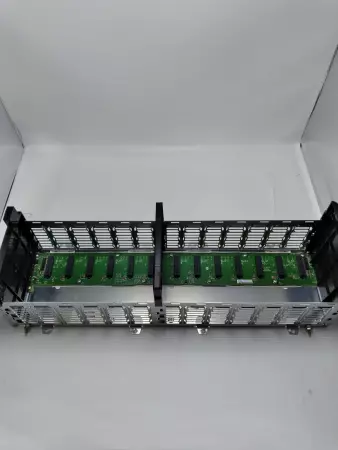

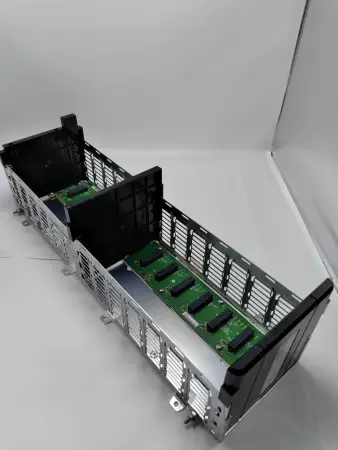

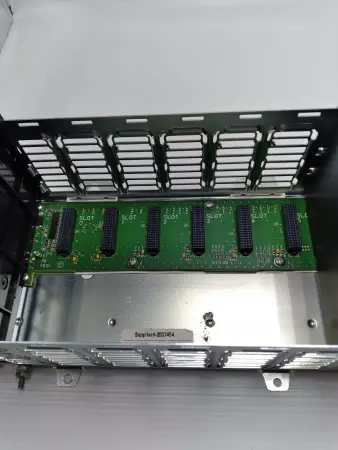

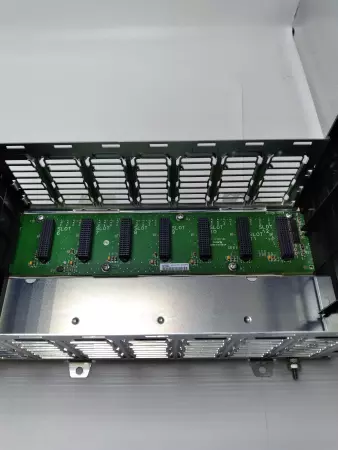

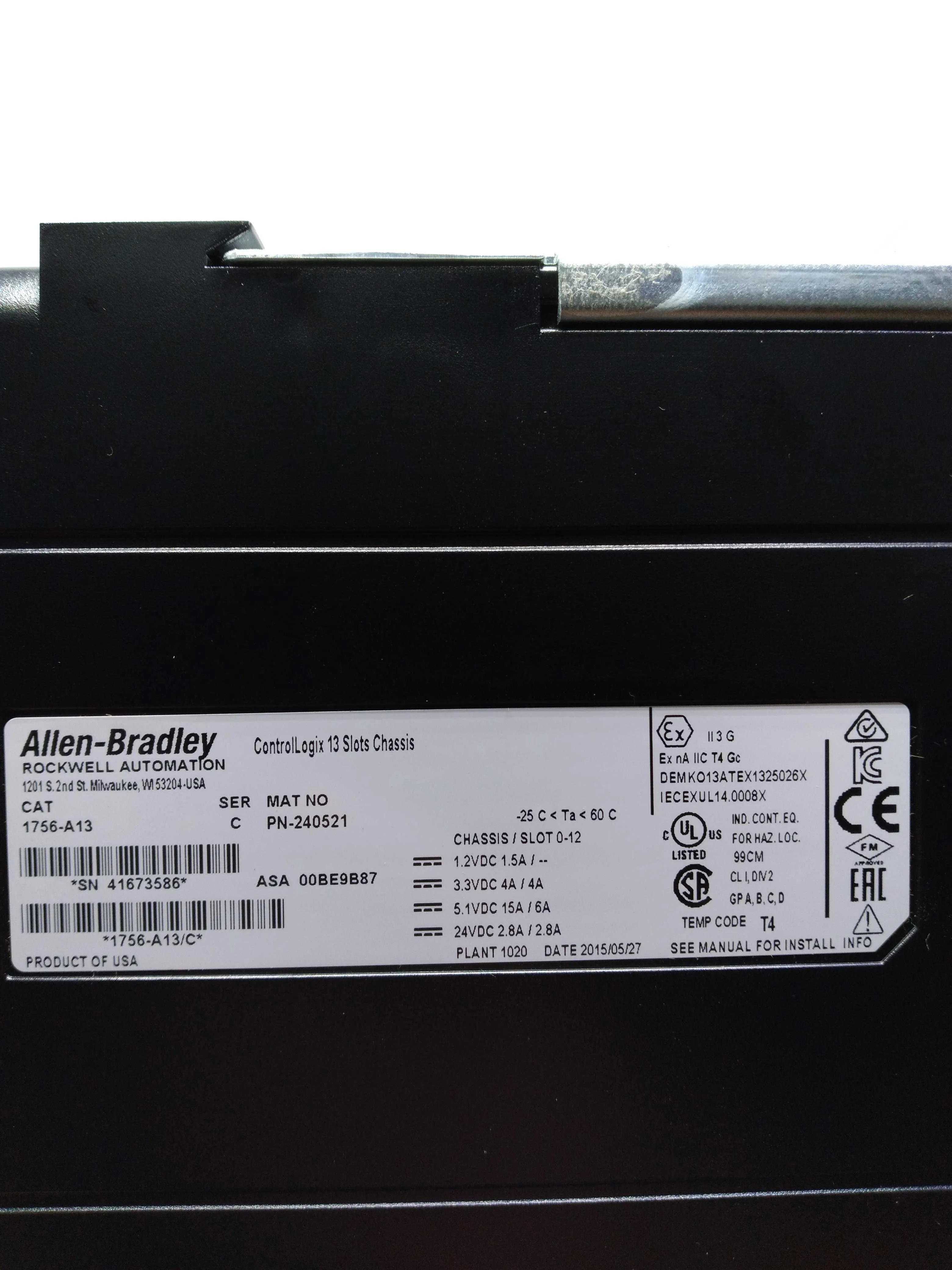

Allen-Bradley 1756-A13 SER. C ControlLogix 13-Slot Chassis

The Allen-Bradley 1756-A13 Series C is a 13-slot chassis used in the ControlLogix platform. It provides a backplane for mounting ControlLogix modules such as processors, communication adapters, I/O, and power supplies, forming the backbone of Rockwell Automation's modular control systems. Technical Information: Manufacturer: Allen-Bradley (Rockwell Automation) Model Number: 1756-A13 Series: C Chassis Type: ControlLogix 13-slot chassis Number of Slots: 13 module slots (1 power supply slot + 13 for modules) Backplane Current (max): 1.5 A @ 1.2V DC, 4 A @ 3.3V DC, 15 A @ 5.1V DC, 2.8 A @ 24V DC Power Supply Location: Left end slot (requires 1756-PA72, 1756-PB72, 1756-PA75, or similar) Mounting: Panel or DIN rail mounting (DIN clips required) Dimensions: Approx. 24 X 30 X 8 inches Operating Temperature: 0°C to 60°C (32°F to 140°F) Storage Temperature: -40°C to 85°C (-40°F to 185°F) Relative Humidity: 5% to 95% non-condensing Shock Rating: 30 g operational, 50 g non-operational Vibration: 10–500 Hz, 2 g Certifications: UL, CE, CSA, ATEX (depending on module combination) Applications: Large-scale automation systems, process control, motion, safety, and integrated communication networks

Condition: Used

Weight:   17.00

Depth:   12.00

Length:   24.00

Width:   12.00

SKU:   54053 4.R2.5.6, 4.S3.8.4, 4.S4.16.5, 4.S5.2.4, 4.S8.16.5
