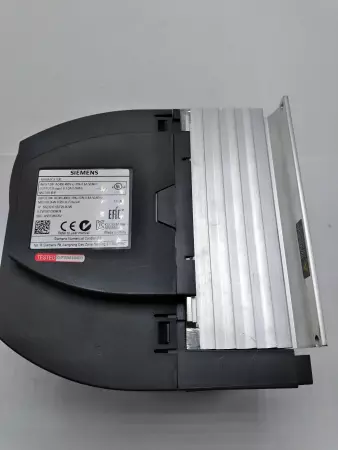

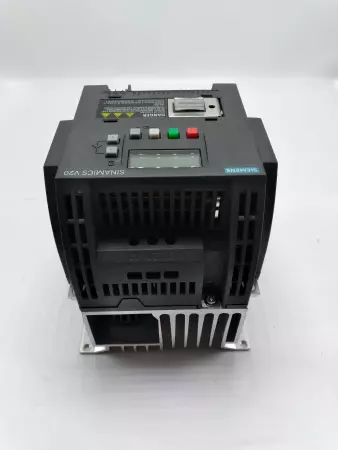

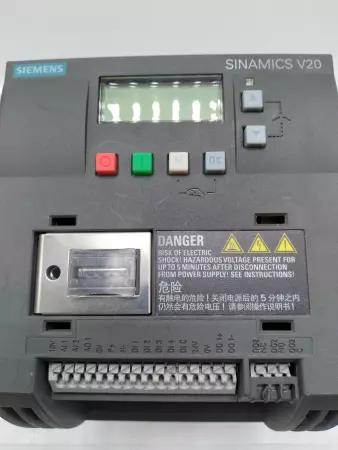

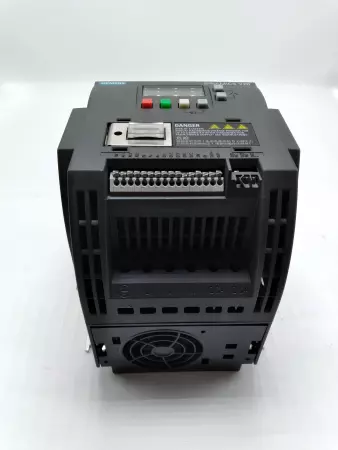

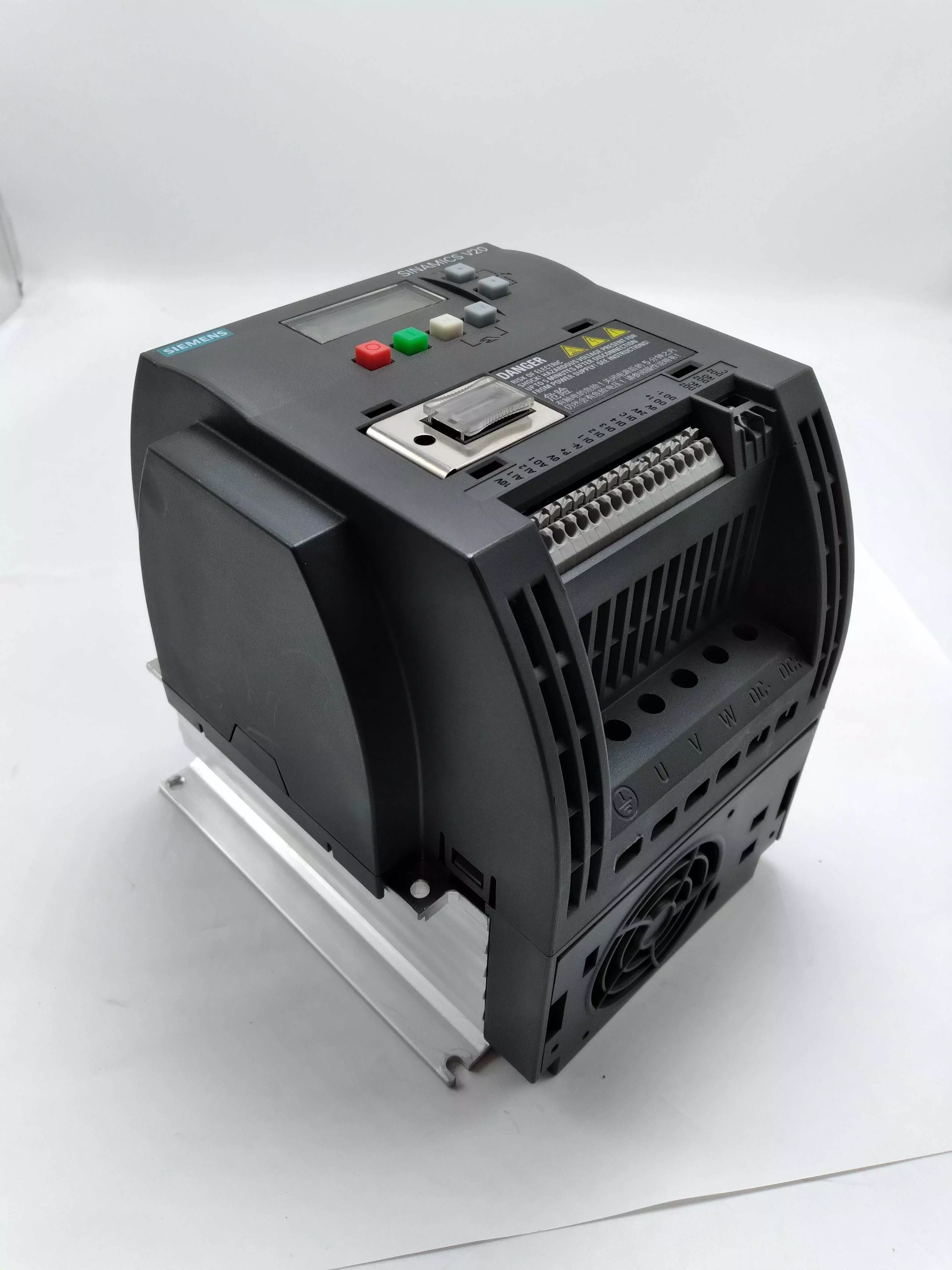

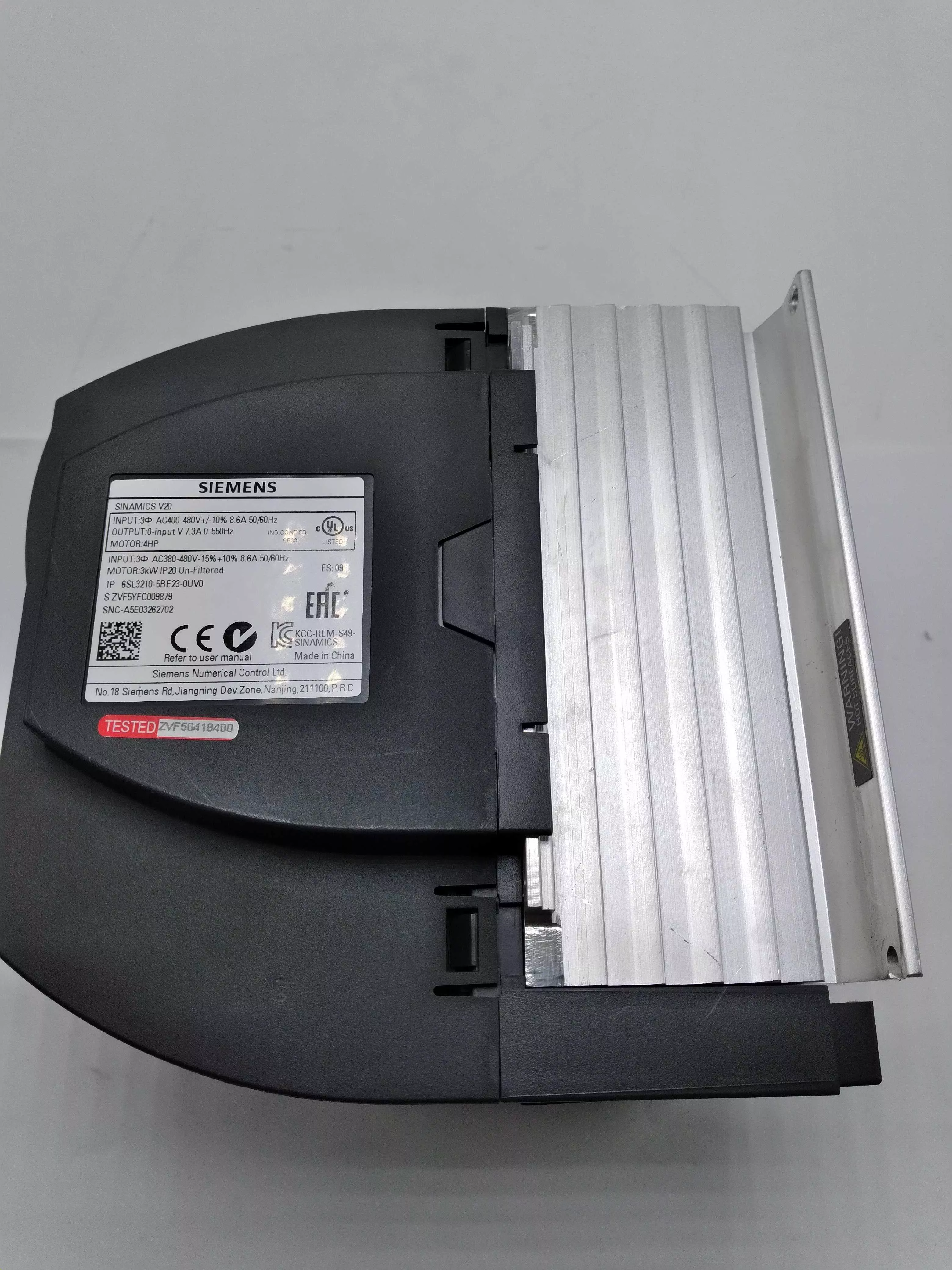

Siemens 6L3210-5BE23-0UV0 SINAMICS V20 AC Drive

Siemens 6L3210-5BE23-0UV0 is a SINAMICS V20 series AC drive designed for basic motor control applications. It offers reliable performance, easy setup, and energy efficiency in a compact design, suitable for pumps, fans, and conveyor systems. Product Type: AC Drive (VFD – Variable Frequency Drive) Series: SINAMICS V20 Part Number: 6L3210-5BE23-0UV0 Input Voltage: 3-phase 380–480 VAC ±10% and 8.6 amp Input Frequency: 47–63 Hz Output Power: 3.0 kW (4.0 HP) Output Current: 7.3 A Output Frequency: 0–550 Hz Control Method: V/f (Volts per Hertz), FCC (Flux Current Control) Motor Type Supported: Asynchronous (Induction) motors Overload Capacity: 150% for 60 seconds Enclosure Type: IP20 Cooling: Internal fan-cooled Display: Integrated LED keypad Communication: Optional modules (USS/Modbus RTU, CANopen, PROFIBUS via add-ons) Ambient Temperature: -10 to +60 °C (with derating above 40 °C) Mounting: Wall or panel mount Dimensions (HxWxD): Approx. 196 x 142 x 170 mm Certifications: CE, UL, cUL, RoHS

Condition: Used

Weight:   7.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   54235 4.S5.9.3
