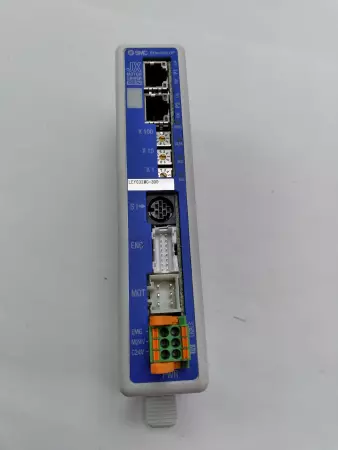

SMC JXC918-LEYG32MC-300 Ethernet/IP Direct Connect Electric Actuator Controller

The JXC918-LEYG32MC-300 is an Ethernet/IP direct control driver for the LEYG32MC-300 electric actuator. It offers precise position control, real-time communication, and seamless integration into industrial Ethernet/IP networks. Model: JXC918-LEYG32MC-300 Compatible Actuator: LEYG32MC-300 Protocol: Ethernet/IP Power Supply: 24 VDC ±10% Current Consumption: 130 mA max (controller only) Operating Temp: 0°C to 40°C (S1/S2), up to 55°C (S3/V3 or later) Humidity: 90% RH or less (non-condensing) Communication Speed: 10/100 Mbps (auto negotiation) Communication Mode: Full/Half duplex (auto negotiation) IP Configuration: Via rotary switches or DHCP Cable Length: Up to 20 meters Mounting: Direct mount or DIN rail Weight: ~210 g (direct mount), ~230 g (DIN mount) Cooling: Natural air convection Encoder Support: Incremental A/B phase, 800 P/R Status LEDs: PWR, ALM, MS, NS, L/A1 Safety Feature: Forced lock release terminal

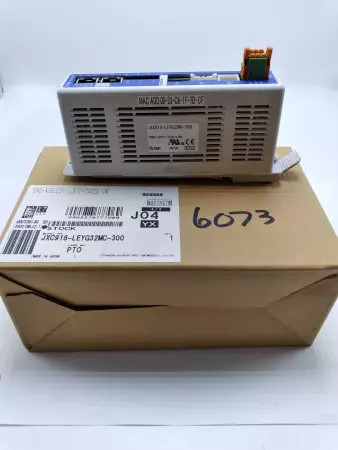

Condition: New – Open box

Weight:   3.00

Depth:   5.00

Length:   9.00

Width:   12.00

SKU:   54449 4.S5.12.2
