SENS 205540 REV.B Circuit Board

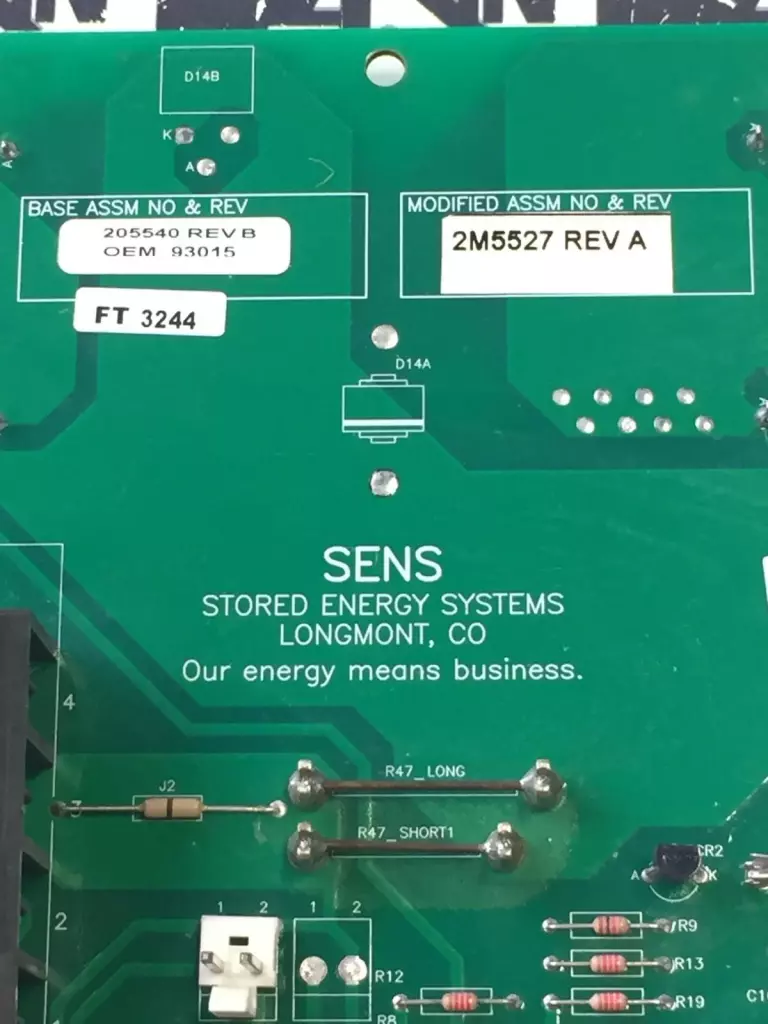

SENS 205540 REV.B is a circuit board module manufactured by SENS (Stored Energy Systems, LLC), typically used in industrial battery charger systems for monitoring, control, and alarm interfacing. This specific board is likely part of a control assembly for a DC power or standby power system. Description: This board includes analog and digital components designed for voltage sensing, system control logic, alarm triggers, and interface connectivity. It is usually mounted inside a battery charger enclosure to handle logic, metering, or protection functions. Technical Specifications (based on visual inspection and typical SENS application): Manufacturer: SENS (Stored Energy Systems, LLC) Model: 205540 Revision: B Function: Control/monitoring PCB for battery charger or DC power system Connectors: – Screw terminals for high-current or control wiring – Header connectors for signal or logic interfacing Main components: – Resistors, capacitors, and trimmers for calibration – Relay driver circuits – Voltage reference and logic ICs Board labeling: “Universal Microcontroller Charger Interface Circuit” Mounting: Standoff or enclosure panel mount Application: SENS MicroGenius chargers, standby DC power systems, industrial rectifiers Please review pictures carefully and let us know if you have any questions!
