In stock 1 available

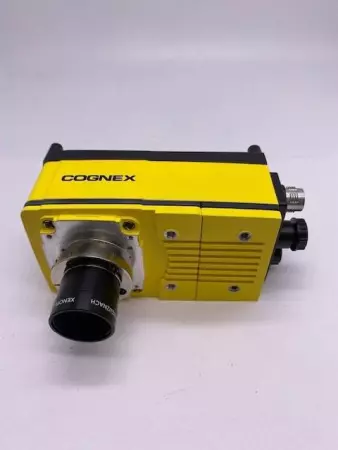

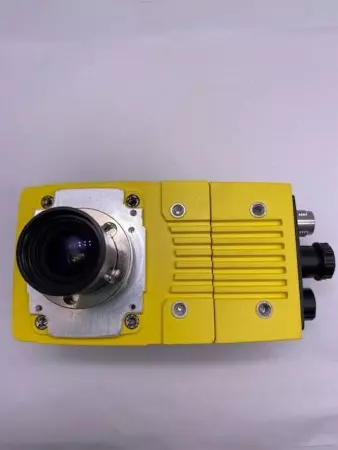

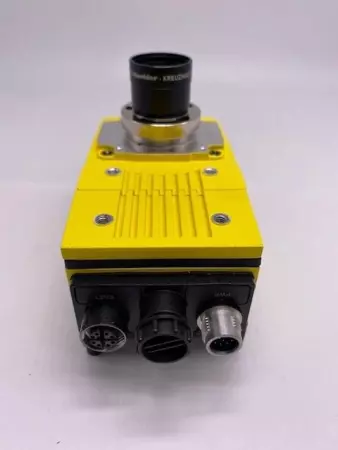

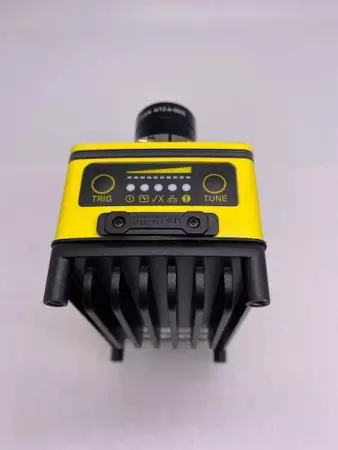

The Cognex LS9902-PG, also known as the In-Sight 9902L, is a high-resolution line scan vision system designed for detailed inspections of large, cylindrical, or continuously moving objects. It captures up to 16,000 lines, each with 2,000 pixels, resulting in a 32-megapixel image that enables the detection of fine defects. With a rapid acquisition rate of 67,000 lines per second, it accommodates high-speed production environments. Key Specifications: Sensor: 1-inch CMOS line sensor with 7µm x 7µm pixel size Maximum Resolution: 2,048 x 16,384 pixels Line Rate: Up to 66 kHz (15µs per line) Memory: 7.2GB non-volatile flash for job/program storage; up to 832MB SDRAM for image processing Connectivity: One Ethernet port (10/100/1000 BaseT), RS-232C serial communication, and multiple discrete I/O options Power Requirements: 24VDC ±10%, 1.5A maximum Dimensions: 53.4mm x 60.5mm x 121.0mm (without accessories) Weight: Approximately 400 grams (without accessories) Protection Rating: IP67 with proper assembly, safeguarding against dust and liquid ingress This self-contained system eliminates the need for an external controller, simplifying integration into existing setups. Its IP67-rated housing ensures durability in industrial environments. The In-Sight 9902L is particularly effective for inspecting cylindrical objects, such as automotive filters and batteries, by capturing their entire surface as they rotate. It's also suitable for assessing large items like solar cells and car door panels, as well as for label inspections on curved surfaces.
Condition: New – Open box
Weight: 3.00
Depth: 5.00
Length: 12.00
Width: 9.00
SKU: 54557 4.S2.9.3D
