In stock 1 available

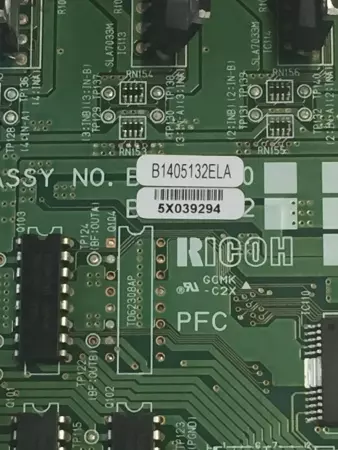

Ricoh B1405132ELA is a PFC (Power Factor Correction) and power interface circuit board, used in Ricoh multifunction printers and copiers. It handles high-voltage AC-to-DC conversion, EMI filtering, and power factor regulation before delivering regulated power to internal subsystems. Description: This board is marked “PFC” and includes large electrolytic capacitors, multiple switching transistors, and filtering components typical of a power conditioning stage. It interfaces directly with the printer's power supply unit (PSU) and connects to control and logic boards via multi-pin headers. Technical Specifications: Manufacturer: Ricoh Part number: B1405132ELA Assembly marking: PFC Function: Power factor correction and power management board Input: AC mains (likely 100–240V) Output: Regulated high-voltage and/or control signals to main board and subsystems Key components: – Power transistors/IGBTs – Large electrolytic capacitors – Transformers and inductors – Signal processing ICs (Ricoh-branded and standard logic) Connectors: – Multi-pin signal/power headers – JST and ribbon connectors Application: Ricoh Aficio and MP series MFPs, laser printers, or production printers Role: Converts and conditions incoming AC power, manages electrical noise and power factor for high-efficiency operation Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.50
Depth: 6.00
Length: 12.00
Width: 9.00
SKU: 5467 4.S8.7.5B
