In stock 1 available

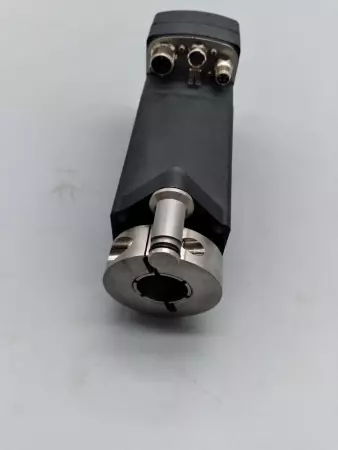

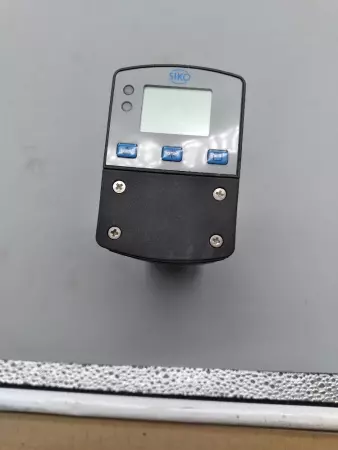

The SIKO AG06-0003 is a high-precision fieldbus actuator designed for automated positioning tasks in industrial applications. It features an integrated position controller and a magnetic absolute sensor for reliable and accurate operation. Key Features: Easy Installation: Stainless steel hollow shaft with a clamping ring allows for direct mounting without additional couplings. Durable Construction: Glass-fiber reinforced plastic housing provides robust protection against environmental conditions. Long Service Life: Brushless 24 VDC motor ensures extended operation with minimal maintenance. Integrated Absolute Sensor: Magnetic sensing technology for precise position feedback. Fieldbus Communication: Supports RS485/SIKONETZ5 and CANopen for seamless integration into industrial control networks. User Interface: Two-line LCD display with target and actual position values, along with operating keys for easy configuration. Technical Specifications: Nominal Torque/Rated Speed: 7 Nm at 30 min⁻¹ (±10%) with gear ratio i = 188 13 Nm at 15 min⁻¹ (±10%) with gear ratio i = 368 Operating Mode: Intermittent operation (S3), 25% duty cycle over 10 minutes. Protection Class: Available in IP54 and IP65 versions for varying levels of dust and water protection. Shaft Design/Diameter: Clamping ring with a 20 mm diameter shaft; other configurations available on request.
Condition: Used
Weight: 2.00
Depth: 6.00
Length: 10.00
Width: 6.00
SKU: 54671 4.S5.5.3
