In stock 1 available

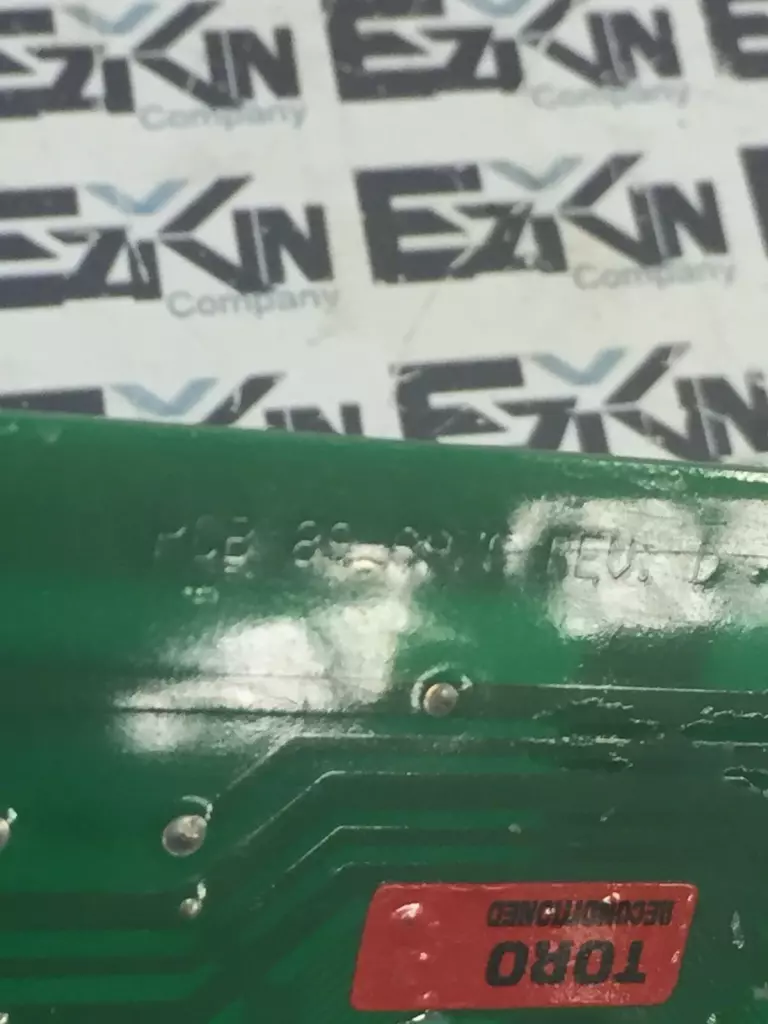

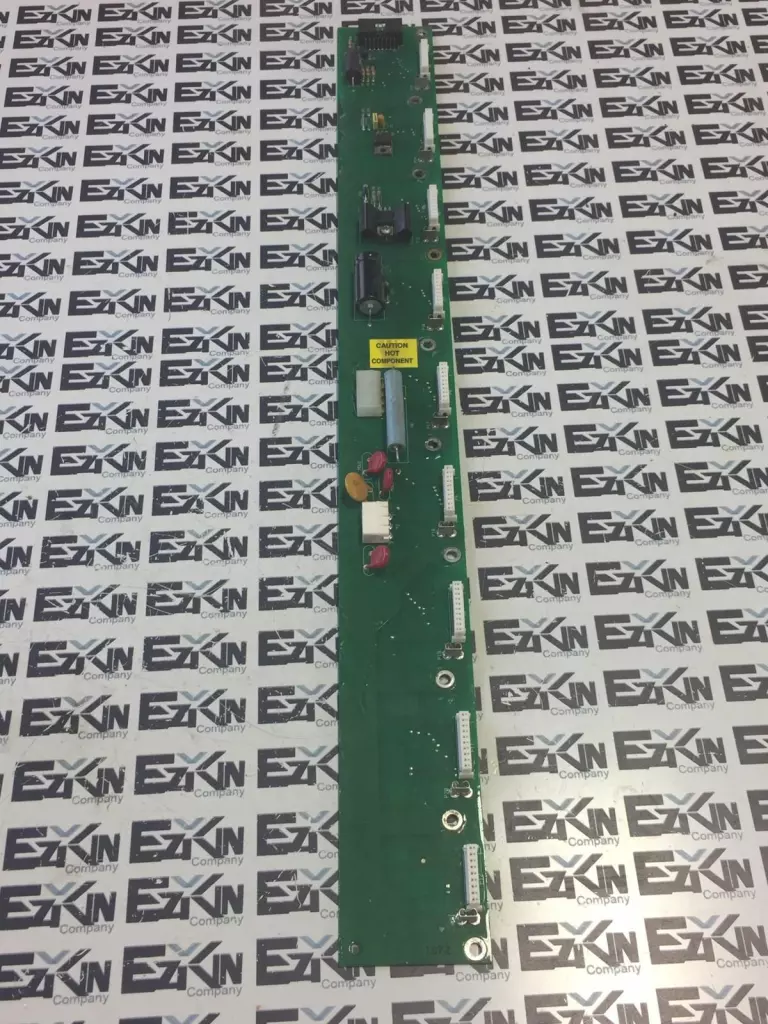

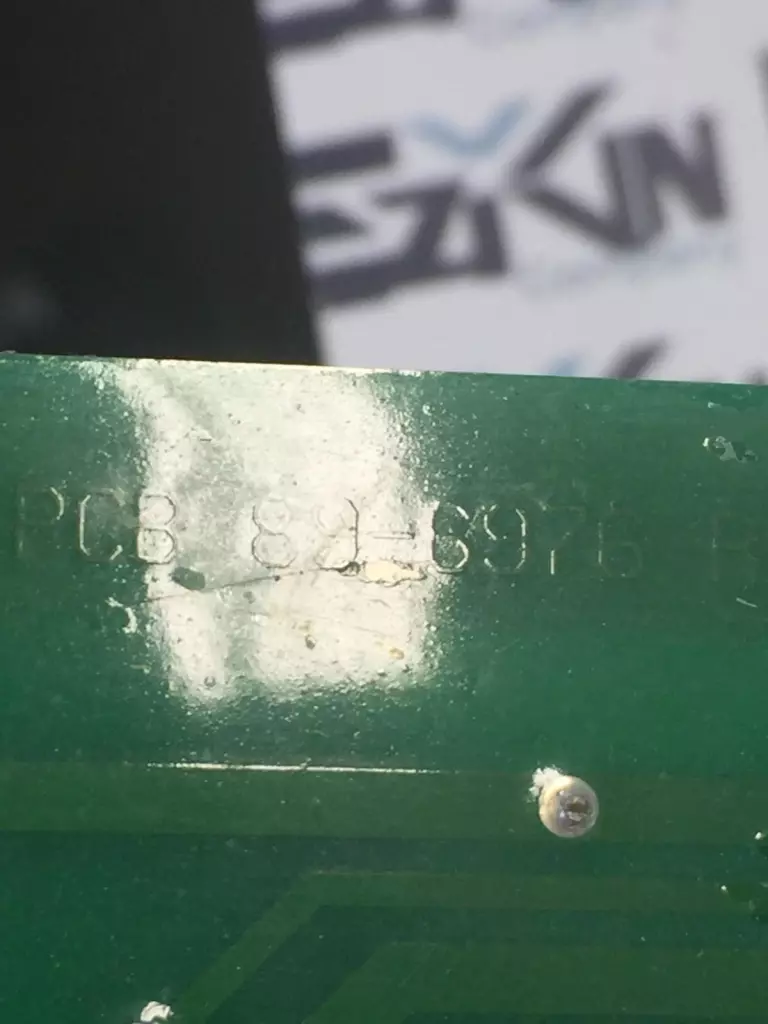

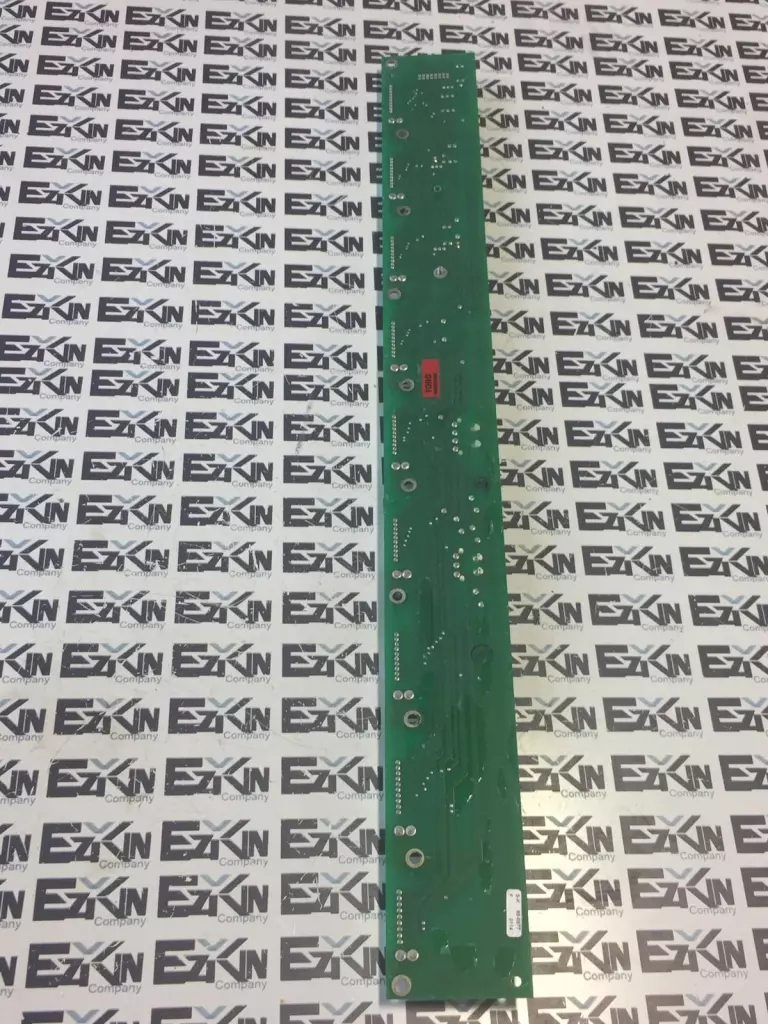

The 89-6976 REV.D is a backplane circuit board, likely used in a modular industrial or commercial system such as a printer, control panel, or server-grade assembly. Based on its form factor, layout, and edge connectors, this board serves as an interface or distribution platform for multiple daughter boards or modules. Description: This long, narrow PCB features multiple connectors along one edge, used to plug in slave boards, sensors, or submodules. It distributes power and signal lines while minimizing cabling. Passive components and a few ICs suggest limited logic, possibly for basic signal conditioning or status indication. Technical Features: Part number: 89-6976 Revision: D Type: Backplane board Function: Signal and power distribution Key elements: – Multiple white edge connectors (likely for ribbon or pin headers) – Passive components (resistors, diodes, caps) – A few ICs (possibly buffers, drivers, or communication interface chips) – Silkscreened component labels and test points Typical applications: – Industrial printing systems (likely from context and connector spacing) – I/O modules in control cabinets – Communication buses in embedded systems Markings: No brand indicated, suggesting it may be an OEM/custom-manufactured board for a specific system like Ricoh, Zebra, or HP industrial devices Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.10
Depth: 1.00
Length: 23.00
Width: 3.00
SKU: 5473 4.S7.8.6
