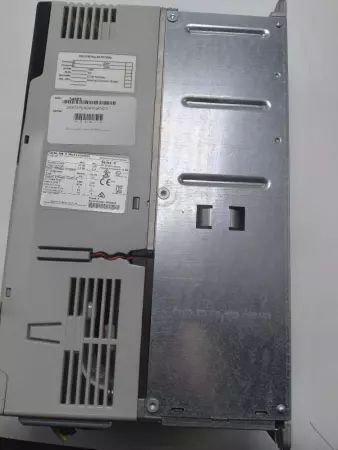

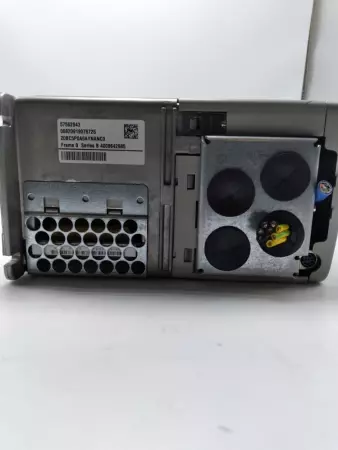

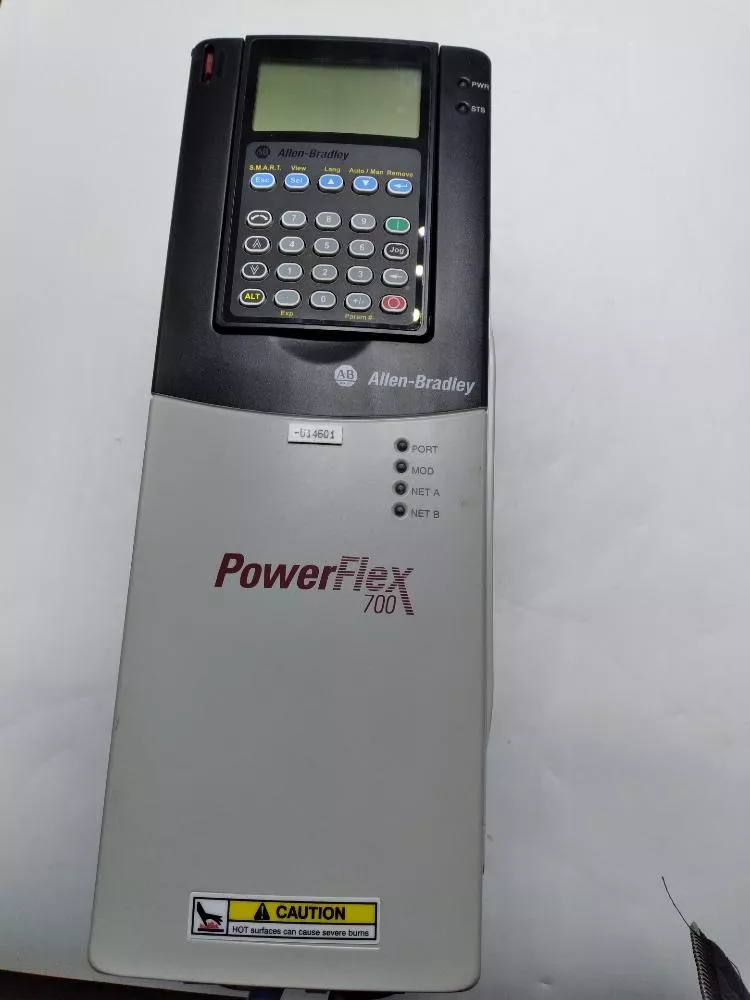

Allen-Bradley 20BC5P0AOAYNANCO SER. B PowerFlex 700 Servo Drive, 2.2kW

The Allen-Bradley 20BC5P0A0AYNANCO Series B is a PowerFlex 700 AC drive designed for variable-speed motor control in industrial automation systems. It offers flexible integration, reliable torque control, and high-performance vector or V/Hz drive modes. Model: 20BC5P0A0AYNANCO Series: B Manufacturer: Allen-Bradley (Rockwell Automation) Drive Family: PowerFlex 700 Power Rating: 2.2 kW (3 HP) Input Voltage: 3-phase, 480 VAC ±10% Input Frequency: 50/60 Hz Input Current: Approx. 5.0 A Output Voltage: 3-phase, 0–480 VAC Output Current: 5.0 A Control Modes: – Sensorless Vector Control – Flux Vector Control (with encoder) – Volts per Hertz (V/Hz) Enclosure Type: Open Type (IP20 / NEMA 1 with cover) Interface: HIM (Human Interface Module) optional or remote Feedback Support: Encoder (vector mode) Communication Options: Optional modules (EtherNet/IP, DeviceNet, ControlNet, Profibus) Digital Inputs/Outputs: Configurable – 7 DI / 3 DO standard Analog Inputs/Outputs: 2 AI / 2 AO standard Its dimensions are 11 x 8 x 9 inches, making it an easy fit for most industrial settings Protection Features: Overvoltage, undervoltage, overcurrent, motor overload, ground fault Ambient Operating Temperature: 0°C to +50°C (with derating up to +60°C) Mounting: Panel-mounted Certifications: UL, CE, cUL, RoHS compliant Applications: Conveyors, mixers, pumps, fans, packaging, and positioning applications

Condition: Used

Weight:   15.00

Depth:   6.00

Length:   12.00

Width:   15.00

SKU:   54803 4.R1.6.3
