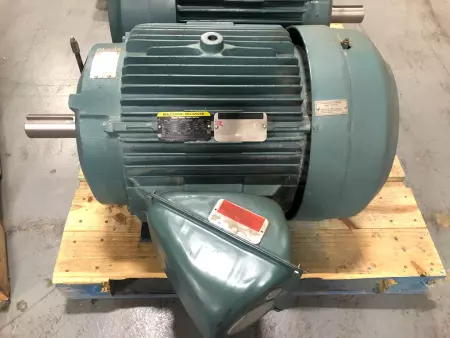

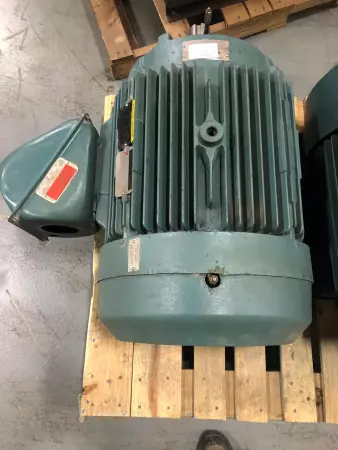

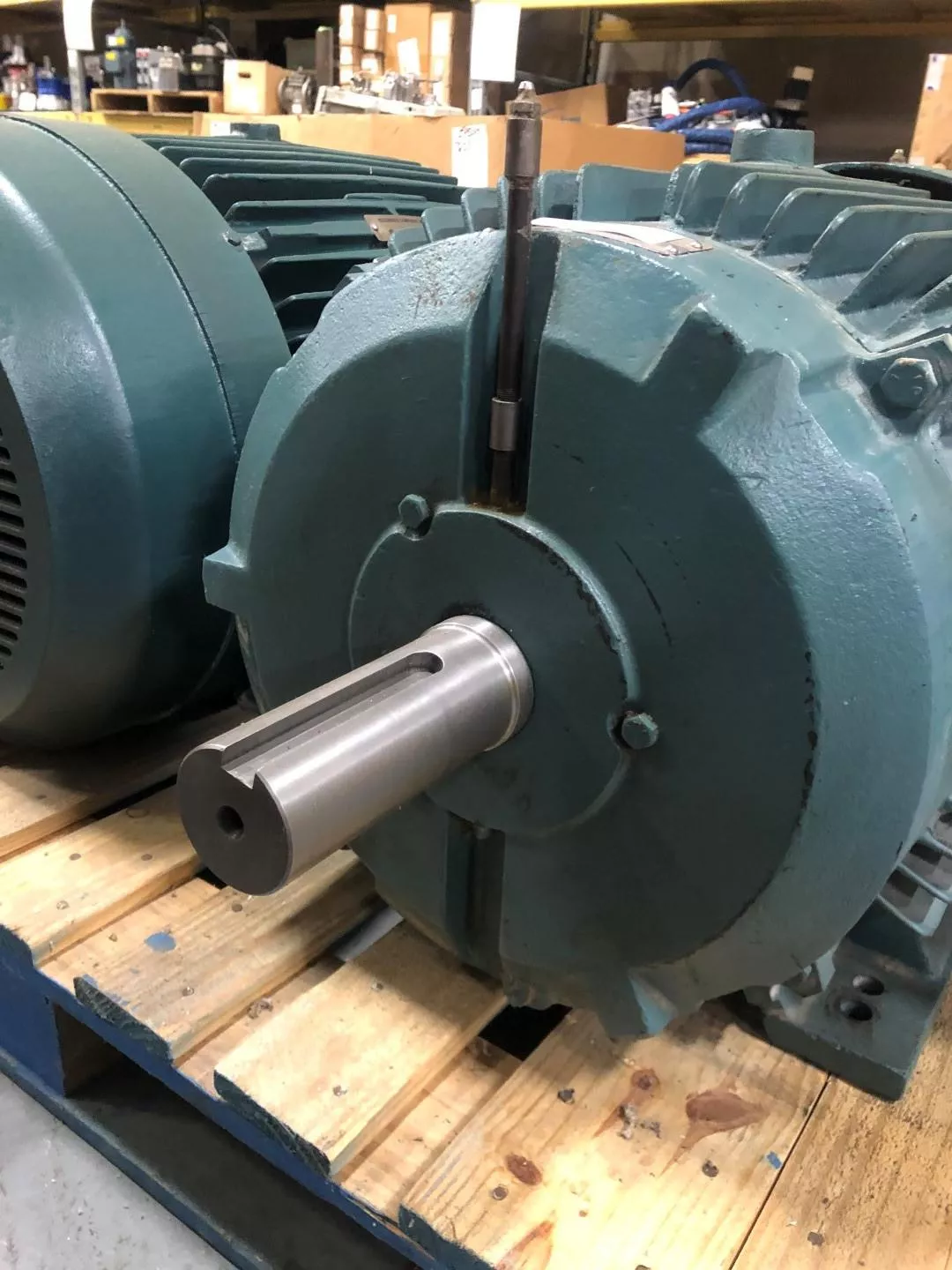

Baldor/Reliance B496928 SuperE 3-Phase Motor, 60HP Frame 364T

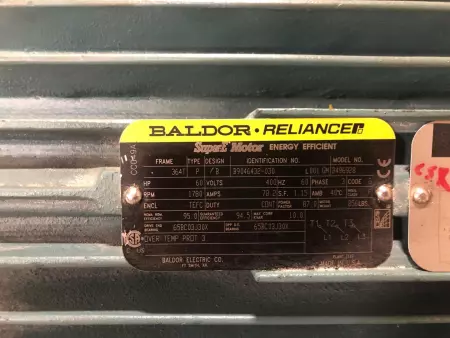

Energy-efficient industrial-grade AC motor engineered for continuous-duty applications requiring reliable power and high efficiency. Model No: B496928 Identification No: B9046432-030 Frame: 364T Type: P Design: B Horsepower: 60 HP Voltage: 400 V Frequency: 60 Hz Current: 78.2 A Speed: 1780 RPM Phase: 3 Service Factor: 1.15 Ambient Temperature: 40 °C Insulation Class: F Code: G Enclosure: TEFC (Totally Enclosed Fan Cooled) Duty Cycle: Continuous (CONT) Power Factor: 87.0 Drive End Bearing: 65BC03J30X Opp. DE Bearing: 65BC03J30X NEMA Nominal Efficiency: 95.0% Guaranteed Efficiency: 94.5% Max KVAR: 10.0 Over Temp Protection: PRDT 3 Motor Weight: 856 lbs Manufacturer: Baldor Electric Co., Fort Smith, AR, USA Origin: Made in U.S.A.

Condition: Used

Weight:   906.00

Depth:   26.00

Length:   36.00

Width:   36.00

SKU:   55109 4.R5.5.1
