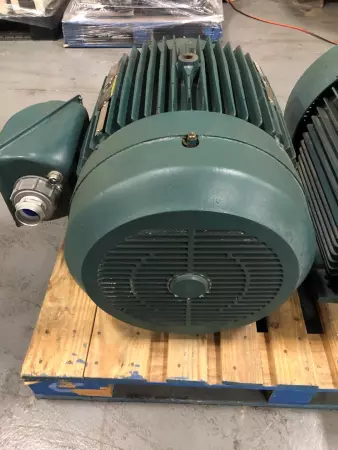

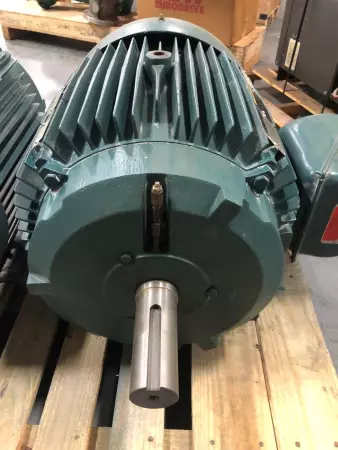

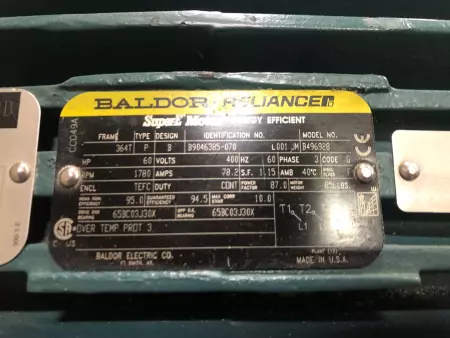

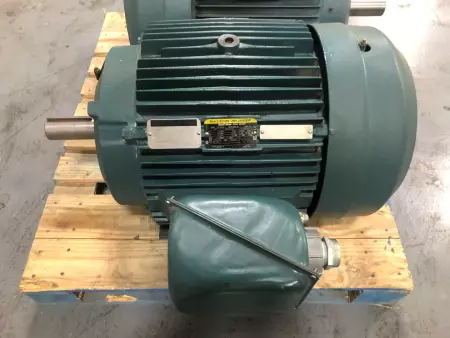

Baldor/Reliance B496928 SuperE 3-Phase Motor, 60HP Frame 364T

The Baldor/Reliance B496928 is a Super-E premium efficiency 3-phase AC induction motor rated at 60 HP. Designed for industrial applications, this motor offers high energy efficiency, long service life, and compatibility with variable frequency drives (VFDs). It is built in a rugged 364T frame for demanding environments. Technical Specifications: Series: Super-E Premium Efficiency Motor Type: AC Induction, 3-phase Horsepower: 60 HP Voltage: 400 V AC (standard, dual voltage models may include 230/460 V) Frequency: 60 Hz Full Load Amps: ~78.2 A @ 460 V Speed: 1780 RPM (4-pole, synchronous 1800 RPM) Frame Size: 364T Mounting: Foot mount (T-frame, rigid base) Enclosure: TEFC (Totally Enclosed Fan Cooled) Insulation Class: F (Class B temperature rise) Service Factor: 1.15 Efficiency: Premium Efficiency, NEMA MG1 Table 12-12 Compliant Bearings: Double shielded ball bearings, regreasable Shaft: Keyed, standard NEMA dimensions Ambient Temperature: Up to 40°C Altitude: Up to 1000 m without derating Duty Cycle: Continuous (S1) VFD Compatibility: Yes – inverter-duty rated per NEMA MG1 Part 31

Condition: Used

Weight:   856.00

Depth:   12.00

Length:   18.00

Width:   24.00

SKU:   55114 4.R5.5.1
