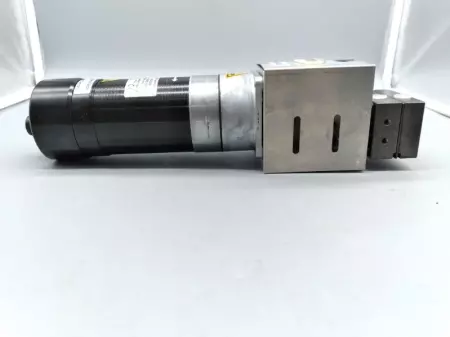

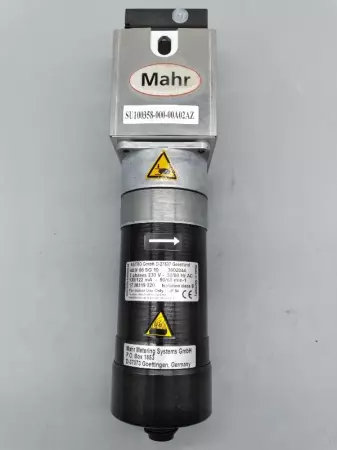

Mahr ASM 86 SG 10 Synchronous And Stepper Motor W/N19LC1 Feinpruef Pump

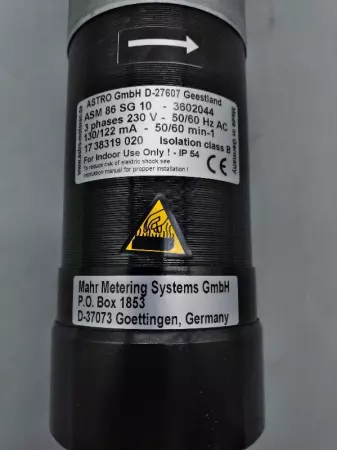

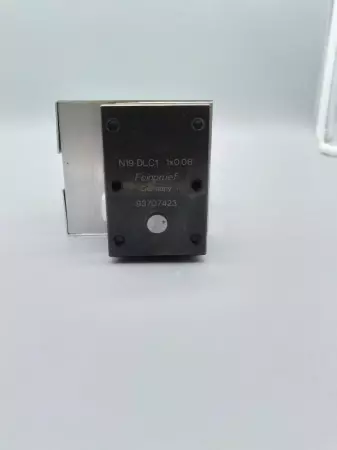

The Mahr ASM 86 SG 10 is a synchronous geared motor, often paired with the Feinpruef N19LC1 metering pump, designed for precise dosing applications in various industrial processes.​ Mahr ASM 86 SG 10 Synchronous Geared Motor: Voltage: 1-230 V, 50/60 Hz​ Speed: 1000/1200 rpm​ Input Power: 41.4 VA​ Output Power: 23 W​ Protection Class: IP 40​ Gearbox: Helical gear ASG 10 with a ratio of 83.33:1, resulting in an output speed of 12/14.4 rpm​ Torque: 14.30 Nm​ This motor is characterized by its maintenance-free operation, high efficiency (up to 0.85), and compatibility with various gear types, including spur, planetary, flat, and worm gears. ​ Feinpruef N19LC1 Metering Pump: Feinpruef metering pumps by Mahr are renowned for their precision and reliability in dosing applications. These pumps are capable of handling high pressures, up to 700 bar (10,000 psi), and are constructed from high-quality materials to ensure durability and resistance to wear, corrosion, and high temperatures. ​

Condition: Used

Weight:   7.00

Depth:   6.00

Length:   12.00

Width:   15.00

SKU:   55745 4.S3.11.2
