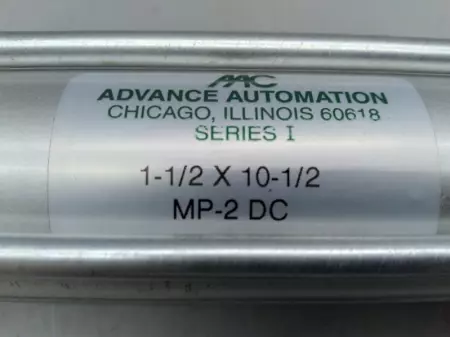

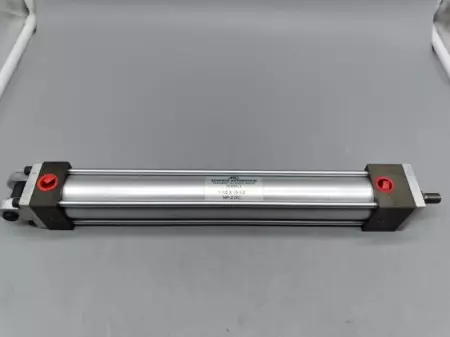

Advance Automation MP-2 DC Pneumatic Air Cylinder 1-1/2" Bore 10-1/2" Stroke

The Advance Automation MP-2 DC pneumatic cylinder is a heavy-duty, double-acting air cylinder designed for precision linear motion in automation and industrial systems. With a 1-1/2" bore and 10-1/2" stroke, it offers reliable performance in medium-force applications. Technical Information: Manufacturer: Advance Automation Company Model: MP-2 DC Cylinder Type: MP Series – Double-Acting Pneumatic Cylinder Bore Size: 1-1/2 inches Stroke Length: 10-1/2 inches Action: Double-acting (air extends and retracts piston) Mounting Style: Typically includes rear or front pivot, flange, or nose mount options (verify specific build) Rod Type: Chrome-plated steel piston rod Operating Pressure: Up to 250 psi (depending on seal and construction) Port Size: Commonly 1/8" or 1/4" NPT (verify for MP-2 size) Body Material: Aluminum or stainless steel (MP series typically anodized aluminum) End Caps: Machined aluminum Seals: Buna-N standard (Viton or other materials optional) Temperature Range: Approx. -20°F to +200°F (-29°C to +93°C) Applications: Clamping, lifting, pushing, indexing in packaging, assembly, and automation systems

Condition: New – Open box

Weight:   5.00

Depth:   8.00

Length:   18.00

Width:   18.00

SKU:   56253 4.S5.12.4
