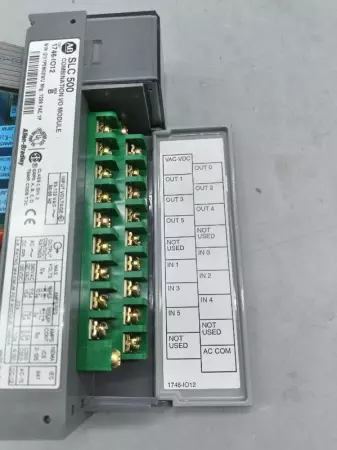

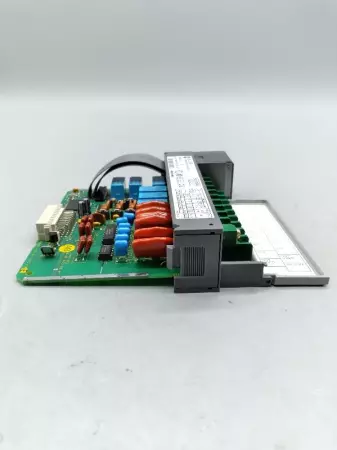

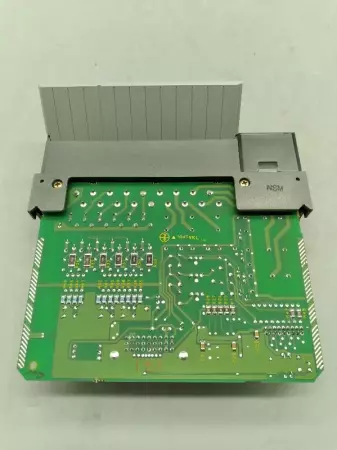

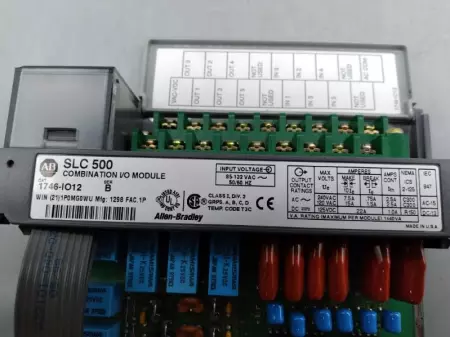

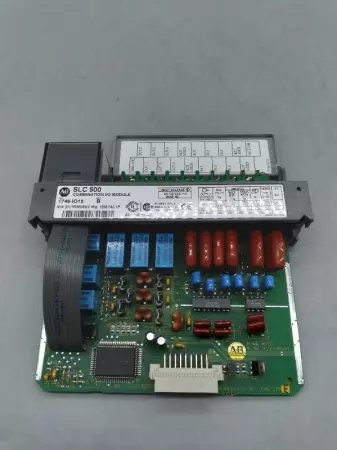

Allen-Bradley 1746-IO12 SLC 500 Combination I/O Module

The Allen-Bradley 1746-IO12 is a combination I/O module for the SLC 500 series, providing both AC input and relay output capabilities in a single unit. It is ideal for compact control applications requiring mixed signal integration. Catalog Number: 1746-IO12 Series: B Module Type: Combination I/O Input Points: 8 (AC) Input Voltage Range: 85–132 VAC, 50/60 Hz Output Points: 4 (Relay) Output Contact Ratings (AC): 240 VAC: 7.5 A make, 2.5 A break 120 VAC: 7.5 A make, 1.3 A break Output Contact Ratings (DC): 125 VDC: 0.55 A make, 0.3 A break Continuous Current per Output: 2.0 A max Total Module Output Current: 4.0 A max Max Voltage (Relay Contacts): 240 VAC / 125 VDC Output Type: Mechanical relay (Form C) Isolation: 1500 V RMS VA Rating: Max 1440 VA per module Standards: UL Listed, CE, CSA Certified Enclosure: Open-style (for mounting in SLC rack) Temperature Code: T3C Environment: Class I, Div. 2 Groups A, B, C, D

Condition: Used

Weight:   0.90

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   56261 4.S1.11.4D, 4.S2.12.3A
