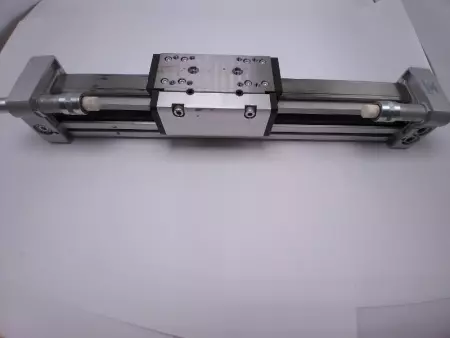

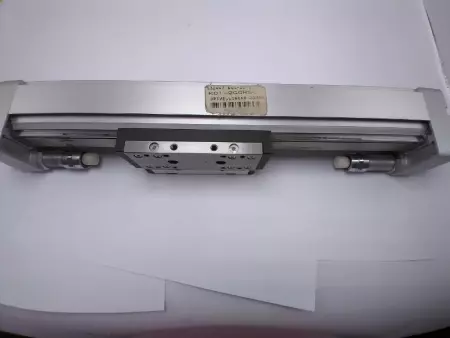

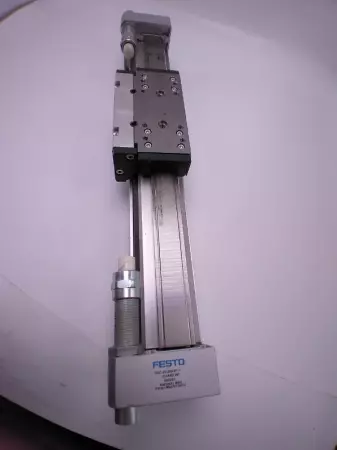

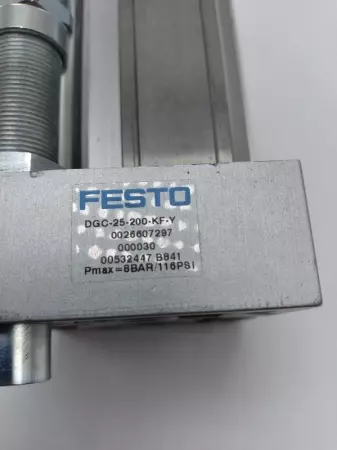

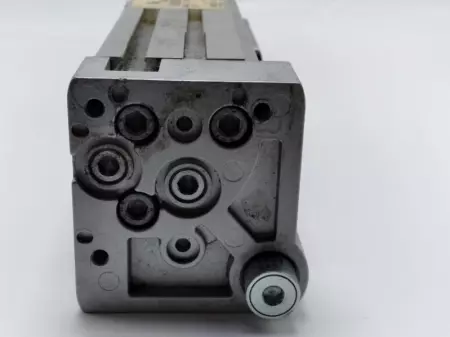

Festo DGC-25-200-KF-Y Pneumatic Linear Drive, 25mm Piston 200mm Stroke

Description: Compact guided pneumatic linear drive with high precision and rigidity Drive Series: DGC Guide Type: KF (recirculating ball bearing guide) Piston Diameter: 25 mm Stroke Length: 200 mm Operating Pressure: 1 to 8 bar Medium: Filtered compressed air, lubricated or non-lubricated Mounting: T-slot and foot mountable in various orientations Cushioning: Adjustable pneumatic cushioning at both ends Max Speed: Up to 1.2 m/s Repetition Accuracy: ±0.02 mm Position Sensing: Magnetic piston for use with proximity sensors Ambient Temperature Range: -20°C to +80°C Theoretical Force at 6 bar: 294 N Material – Cylinder Barrel: Anodized aluminum Material – Piston Rod: Stainless steel Application: Used for high-precision linear motion in automation, pick-and-place, and material handling systems

Condition: Used

Weight:   6.70

Depth:   10.00

Length:   12.00

Width:   16.00

SKU:   56367 4.S6.6.3
