Elektrim ESG182T Energy Efficient Electric Motor, 3HP 182T Frame

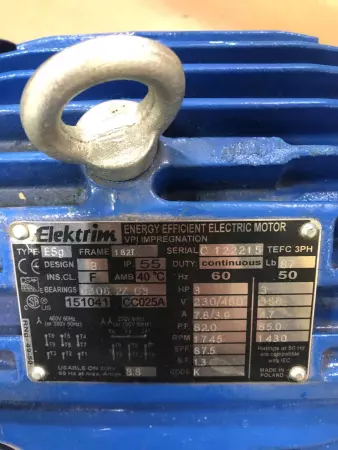

The Elektrim ESG182T is a premium energy-efficient electric motor designed for industrial and commercial applications requiring reliability, durability, and optimal power efficiency. Built to meet or exceed NEMA Premium efficiency standards, this 3HP, 182T frame motor is well-suited for pumps, fans, conveyors, and various heavy-duty mechanical systems. General Information Model: ESG182T Horsepower (HP): 3 HP Frame Size: 182T Enclosure Type: Totally Enclosed Fan Cooled (TEFC) Efficiency Rating: Energy Efficient (MEPS / NEMA Premium Efficiency) Application: Industrial, pumps, fans, compressors, conveyors Electrical Specifications Voltage: Dual Voltage (208-230V / 460V) Phase: Three-phase (3-Phase) Frequency: 60 Hz Full Load Amps (FLA): 208V: Approx. 8.2A 230V: Approx. 7.6A 460V: Approx. 3.8A Service Factor: 1.15 Insulation Class: F (Suitable for high temperatures up to 155°C) Ambient Temperature Rating: 40°C Duty Cycle: Continuous Duty (S1) RPM 1745/1430

Condition: New – Open box

Weight:   10.00

Depth:   20.00

Length:   20.00

Width:   20.00

SKU:   56368 4.R6.6.5
