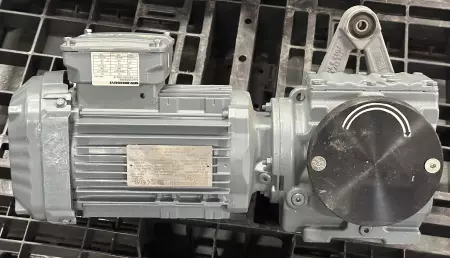

Sew-Eurodrive SA47 DRN80M4 Gearmotor 0.75kW W/Gearbox 20.33:1 Ratio

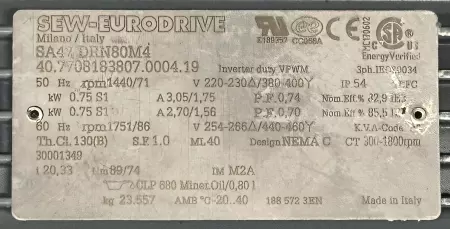

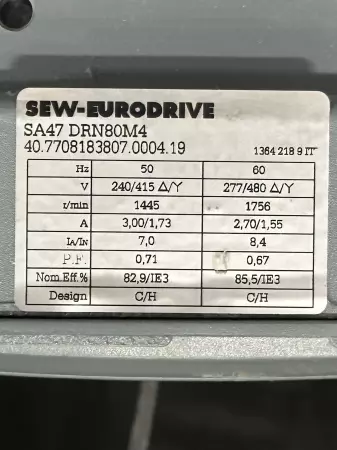

This is a compact helical gearmotor assembly by SEW-Eurodrive combining a DRN-series motor with an SA-series gear reducer. It is designed for continuous-duty industrial applications where reliable torque and speed control are required. Gearmotor Overview Motor model: DRN80M4 (IE3 efficiency class) Gear unit model: SA47 (helical gear unit) Complete part number: SA47 DRN80M4 40.770813807.0004.19 Country of origin: Made in Italy Electrical Specifications Rated power: 0.75 kW (1 HP) Voltage (50 Hz): 220–230 V Δ / 380–400 V Y Voltage (60 Hz): 254–266 V Δ / 440–460 V Y Current (50 Hz): 3.05 A / 1.75 A Current (60 Hz): 2.70 A / 1.56 A Frequency: 50/60 Hz Power factor (cos φ): 0.74 (50 Hz), 0.70 (60 Hz) Efficiency: 82.9% (IE3 at 50 Hz), 85.5% (IE3 at 60 Hz) Duty cycle: S1 (continuous) Service factor (SF): 1.0 Thermal class: 130(B) Insulation class: F Enclosure: IP54 (TEFC) Mechanical Specifications Rated speed (motor): – 1440 rpm (50 Hz) – 1751 rpm (60 Hz) Gear ratio: 20.33:1 Output speed (approx.): – ~71 rpm (50 Hz) – ~86 rpm (60 Hz) Nominal torque output: ~89/74 Nm (depending on frequency) Mounting: IEC IM M2A Lubrication: CLP 680 mineral oil Oil quantity: 0.80 liters Motor weight: 23.65 kg KVA code: CT 500–1800 rpm Design standard: NEMA C

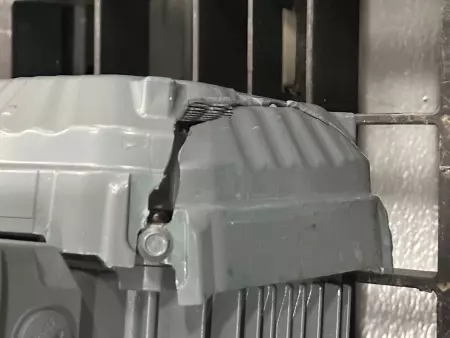

Condition: Used

Weight:   57.00

Depth:   12.00

Length:   14.00

Width:   20.00

SKU:   56371 4.r6.4.1
