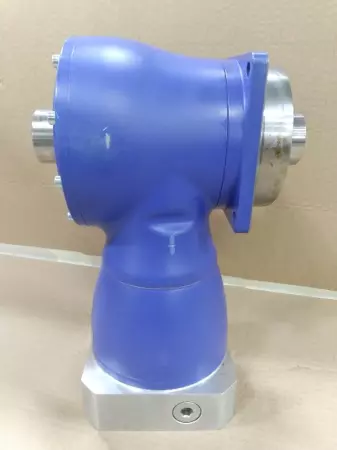

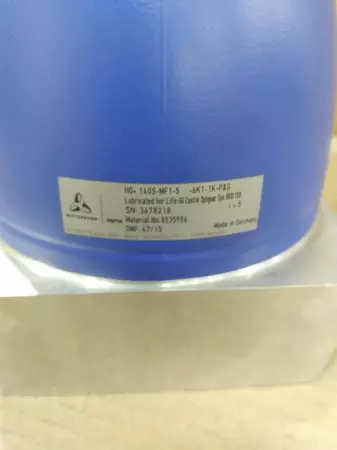

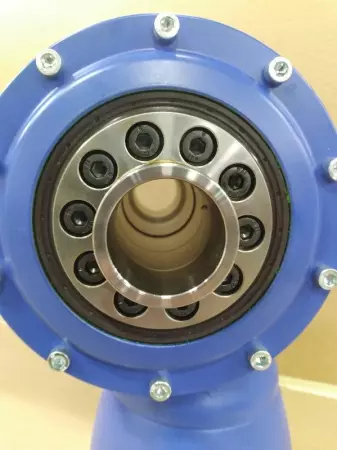

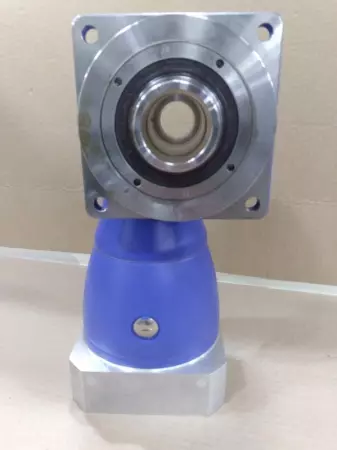

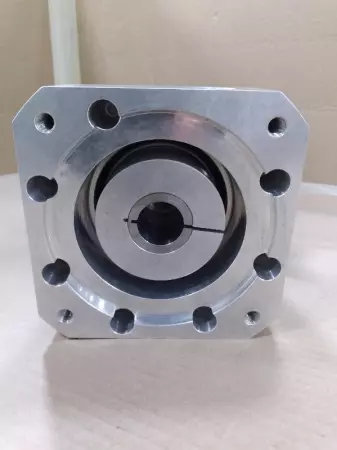

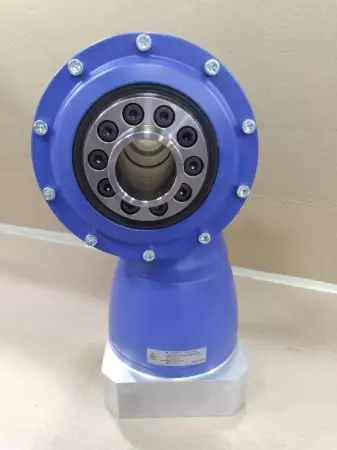

Alpha Wittenstein HG+140SP-MF1-5-6K1-1K Right Angle Gear Box Ratio 5:1

The Alpha Wittenstein HG+140SP-MF1-5-6K1-1K is a high-precision right-angle planetary gearbox from the HG+ series, designed for dynamic, heavy-duty servo applications. It features a spiral bevel stage for the 90° redirection and a planetary gear stage for torque amplification. Product Overview Series: HG+ (HypoGearPlus) Model: HG+140SP-MF1-5-6K1-1K Gear type: Spiral bevel input, planetary output Mounting: Right-angle, square output flange Gear ratio: 5:1 Size: 140 mm frame Orientation: MF1 input configuration Shaft type: Hollow shaft output and input Lubrication: Lifetime lubrication, synthetic grease Efficiency: >96% Backlash: ≤3 arcmin (SP precision level) Torque capacity: Approx. 800–1200 Nm nominal (depending on ratio/load) Max input speed: 6,000 rpm (continuous), up to 8,000 rpm intermittent Protection rating: IP64/IP65 sealed housing Weight: Estimated 20–30 kg depending on configuration Cooling: Natural convection, aluminum housing for thermal dissipation Applications: Robotics, automation gantries, machining centers, packaging, and motion systems

Condition: Used

Weight:   55.00

Depth:   12.00

Length:   14.00

Width:   20.00

SKU:   56377 4.R1.5.1
