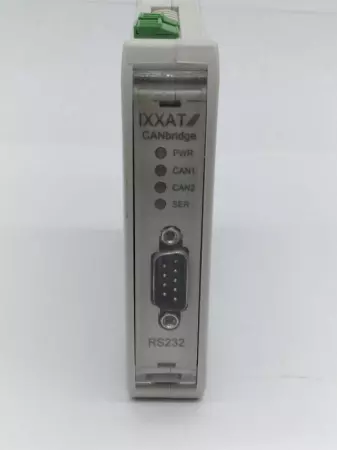

Ixxat RS232 CANbridge Din Rail 1.01.0121.90006

The Ixxat RS232 CANbridge DIN Rail 1.01.0121.90006 is a protocol-transparent CAN-to-CAN bridge designed for coupling two physically separate CAN networks. It uses an RS232 interface for configuration and is DIN rail mountable, ideal for industrial automation and machine communication. Model: 1.01.0121.90006 Manufacturer: Ixxat (a brand of HMS Networks) Type: CANbridge – CAN-to-CAN Bridge Interface: RS232 (for configuration) CAN Channels: 2 independent CAN interfaces CAN Specification: CAN 2.0 A/B compatible Baud Rate: 10 kbps to 1 Mbps (configurable per channel) Mounting: DIN rail Power Supply: 9–36 V DC Galvanic Isolation: Yes (between CAN channels and power supply) Operating Temperature: -20 °C to +70 °C Housing: Industrial-grade plastic or metal enclosure Dimensions: Approx. 100 x 22.5 x 75 mm Application: CAN network extension, protocol separation, message filtering, and load reduction Configuration: Via PC using RS232 interface and Ixxat configuration software Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.90

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   56450 4.S10.4.3A
