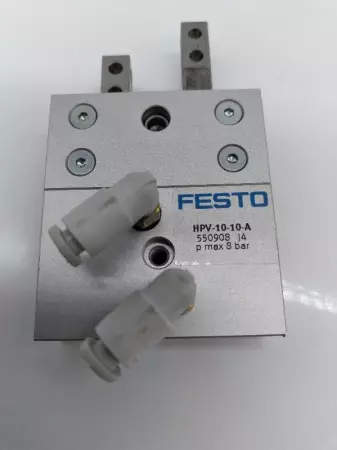

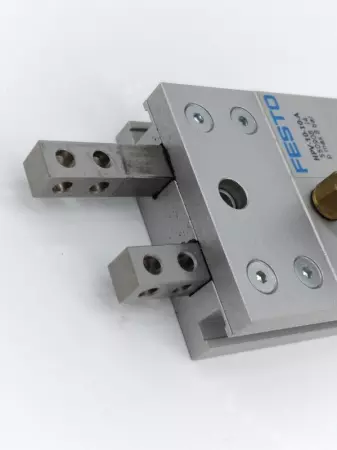

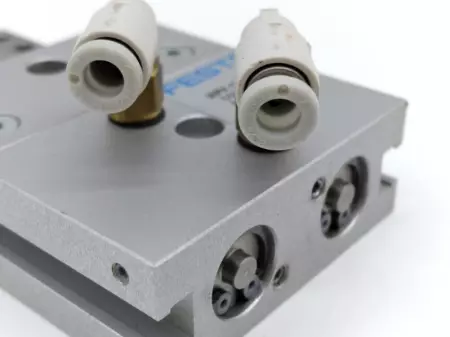

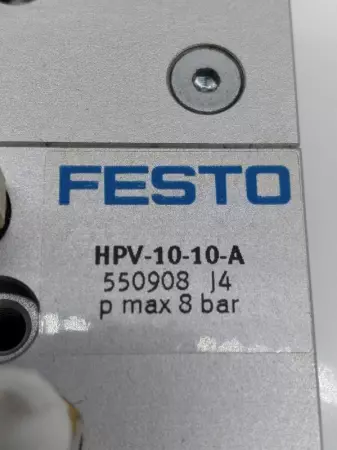

Festo HPV-10-10-A Linear Actuator Feed Separator

The Festo HPV-10-10-A is a compact pneumatic linear actuator designed for feeding and separating individual parts or components in automated handling systems. It's particularly used in part-feeding applications like vibratory bowl feeders or magazine-fed stations, ensuring precise, repeatable separation and positioning of single workpieces. Technical Specifications Model: HPV-10-10-A Type: Linear actuator – feed separator Actuation: Pneumatic, single-acting or double-acting (configurable) Piston Diameter: 10 mm Stroke Length: 10 mm Mounting: Direct mounting via body or end caps Port Size: M5 (typical for compact Festo actuators of this size) Operating Pressure: 2–6 bar Medium: Filtered, lubricated or unlubricated compressed air Body Material: Anodized aluminum Seal Material: NBR (nitrile rubber) Repeatability: ±0.02 mm Cycle Rate: High-frequency (application-dependent) Ambient/Media Temperature: -10 °C to +60 °C Application: Part separation, indexing, and feeding in automation cells DUAL PLUNGER TWIN PISTON NON-ROTATING LOCKING MECHANISM (550908)

Condition: Used

Weight:   3.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   56891 4.S10.2.3R
