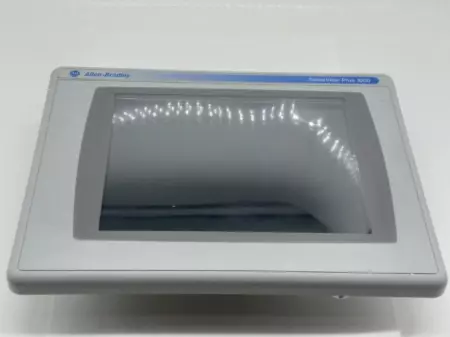

Allen-Bradley 2711P-RDT10C PanelView Plus 1000 Touch Display Module 10.4"

The Allen-Bradley 2711P-RDT10C is a touchscreen display module for the PanelView Plus 1000 series operator interface terminals. It features a 10.4-inch color TFT display, supporting graphic visualization and control in HMI (Human-Machine Interface) systems. This model is part of a modular HMI system designed for industrial automation. Technical Specifications Manufacturer: Allen-Bradley / Rockwell Automation Catalog Number: 2711P-RDT10C Series: PanelView Plus 1000 Display Type: TFT Active Matrix Color LCD Display Size: 10.4 inches (diagonal) Resolution: 640 x 480 pixels (VGA) Touch Interface: Analog resistive touchscreen Color Support: 18-bit color (262,144 colors) Backlight: Replaceable (average life ~50,000 hours) Mounting: Panel mount via clips and gasket Power Supply: Supplied through the logic module (no separate power input) Connection: – Ribbon cable connector for attachment to logic module – USB/Serial pass-through from logic module (not on display itself) Operating Temperature: 0 °C to 55 °C Storage Temperature: -25 °C to 70 °C Enclosure Rating: – NEMA Type 12, 13, 4X (indoor use only) – IP65 (front panel when properly mounted) Certifications: cULus, CE, RoHS, UL 508

Condition: Used

Weight:   8.00

Depth:   6.00

Length:   12.00

Width:   15.00

SKU:   57116 4.S6.9.2
