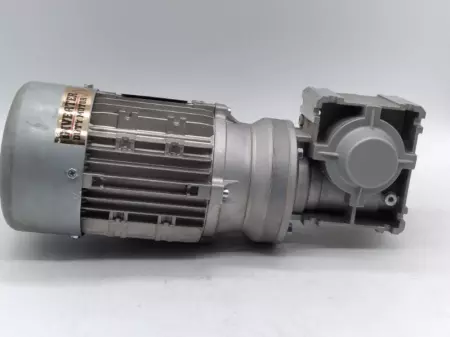

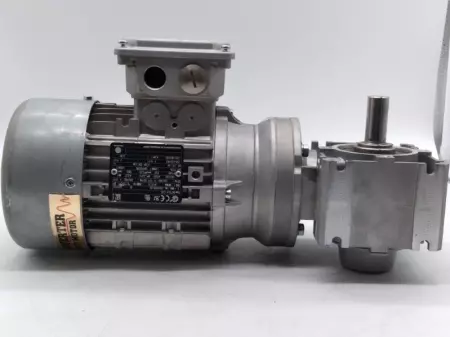

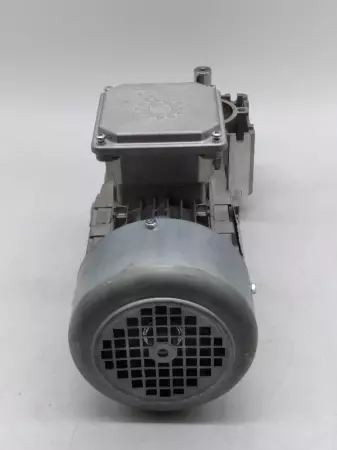

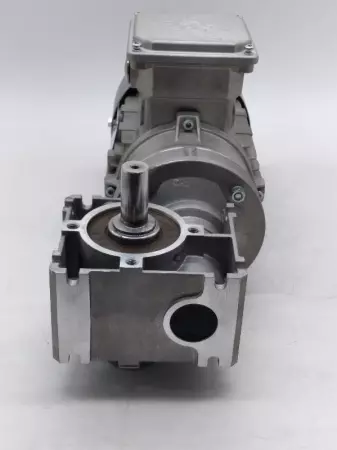

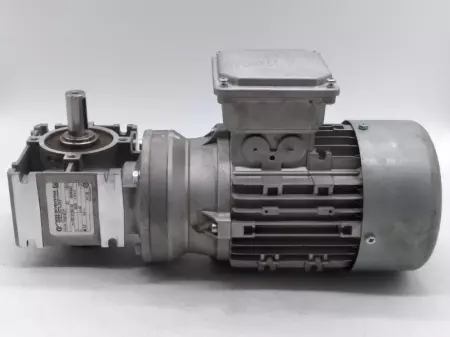

Nord Drivesystems SK71L/4 CUS Gearmotor 0.5HP W/ Gear Reducer 20:1 Ratio

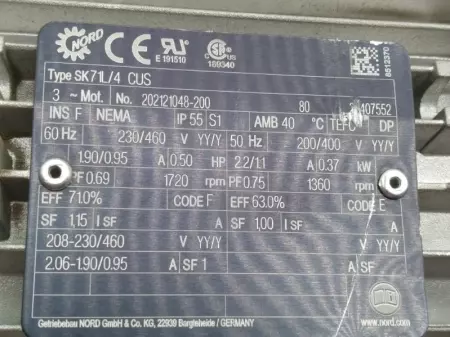

Nord Drivesystems SK71L/4 CUS is a compact gearmotor combining a 0.5 HP (0.37 kW) IEC-frame AC motor with a helical gear reducer offering a 20:1 ratio, designed for reliable, low-speed, high-torque applications in industrial automation and material handling. Specifications: Manufacturer: Nord Drivesystems Model Number: SK71L/4 CUS Motor Power: 0.5 HP (0.37 kW) Voltage: 200/400V AC (50 Hz), 230/460V AC (60 Hz) Frequency: 50/60 Hz Speed: ~86 RPM output (based on 1720 RPM motor and 20:1 ratio) Full Load Current: ~1.1 A @ 400V (typical) Gear Ratio: 20:1 Gear Type: Helical Mounting Style: CUS (Compact Unit Solution) – Foot or flange mount Enclosure: TEFC (Totally Enclosed Fan Cooled), IP55 Insulation Class: F Service Factor: 1.15 Weight: Approx. 20–25 kg Lubrication: Pre-filled, maintenance-free (synthetic oil) Applications: Conveyor drives, packaging systems, light-duty machinery, OEM equipment

Condition: Used

Weight:   25.00

Depth:   8.00

Length:   18.00

Width:   18.00

SKU:   57208 4.R4.5.3
