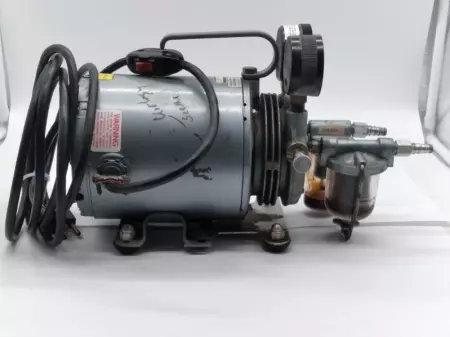

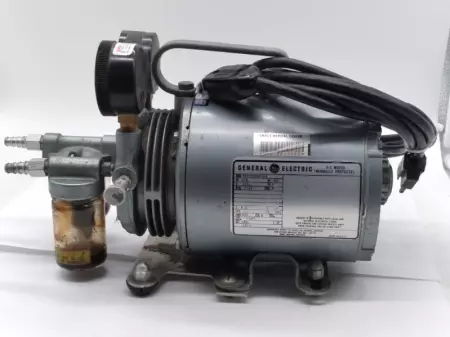

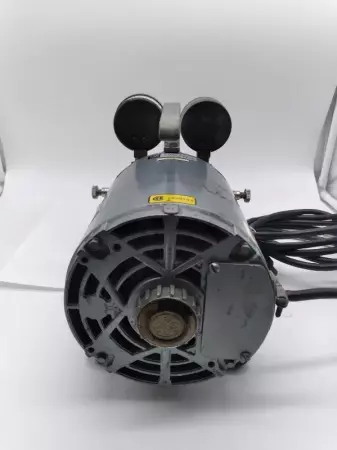

General Electric 5KH33DN16AX AC Motor, 1/6HP with Pump

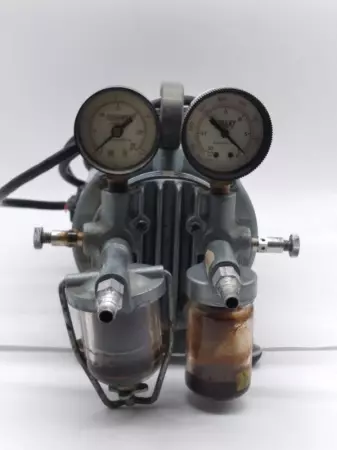

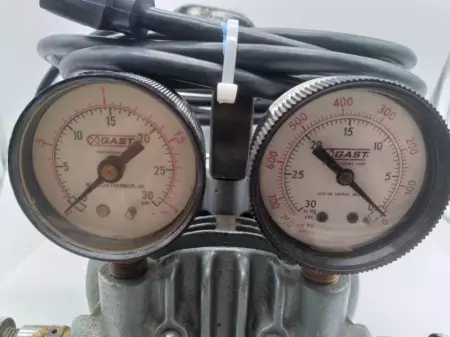

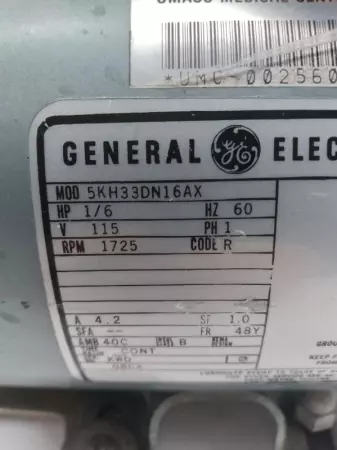

This is a General Electric AC motor integrated with a vacuum pump, often used in laboratory, medical, or light industrial applications for suction or low-pressure air flow. It features thermal protection and a compact build suitable for continuous operation. Technical Specifications: Model: 5KH33DN16AX Horsepower (HP): 1/6 Voltage (V): 115 Frequency (Hz): 60 Phase (PH): 1 Speed (RPM): 1725 Current (A): 4.2 Service Factor (SF): 1.0 Insulation Class: B Ambient Temperature: 40°C Frame: 48Y Duty: Continuous Thermal Protection: Yes (Thermally Protected) Mounting: Base mounted Enclosure: Open Drip Proof (ODP) Pump: Twin-head vacuum pump with dual intake filters and analog pressure/vacuum gauges Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   25.00

Depth:   12.00

Length:   14.00

Width:   20.00

SKU:   57491 4.S1.10.1
