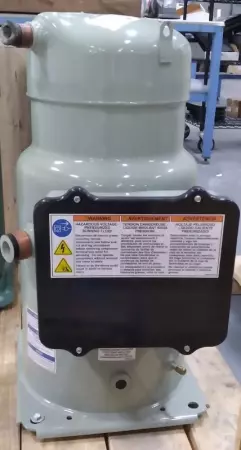

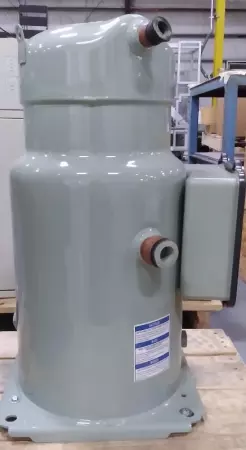

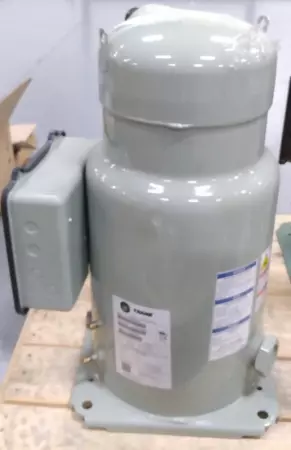

Trane CSHN250X0BKM Scroll Compressor, Volume 17Ton 28.2-29L

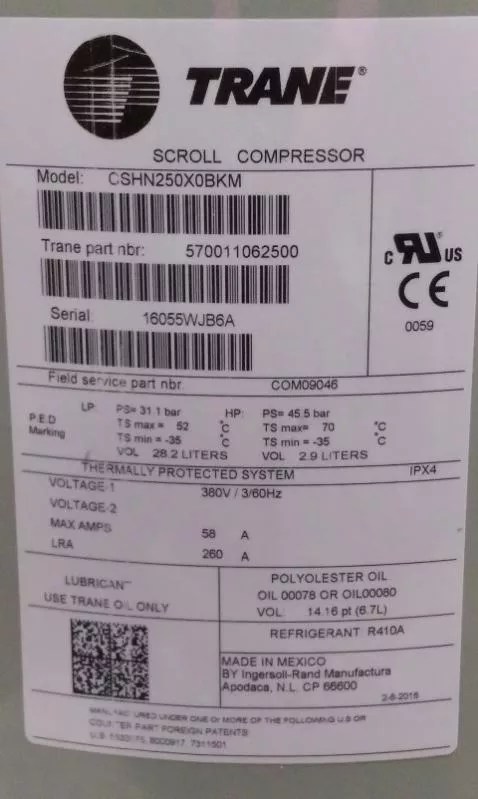

The Trane CSHN250X0BKM is a high-capacity scroll compressor designed for HVAC systems, offering reliable cooling performance with R-410A refrigerant. It is factory-charged with polyester oil and suited for commercial or industrial air conditioning applications. Model: CSHN250X0BKM Trane Part Number: 570011062500 Serial Number: 16055WJB6A Field Service Part Number: COM09046 Compressor Type: Scroll Cooling Capacity: Approx. 17 Tons Internal Volume: – LP Side: 28.2 Liters – HP Side: 29.0 Liters Refrigerant: R-410A Operating Voltage: 380V / 3PH / 60Hz Maximum Amps: 58 A Locked Rotor Amps (LRA): 260 A Lubricant: Polyester Oil (Trane Oil 00078 or 00080) Oil Volume: 14.1 pints (6.7 liters) Protection Rating: IPX4 (splash-resistant) Pressure Ratings: – LP (Low Pressure): PS = 31.1 bar, TS max = 52°C, TS min = -35°C – HP (High Pressure): PS = 45.5 bar, TS max = 70°C, TS min = -35°C Country of Manufacture: Mexico (by Ingersoll-Rand Manufactura, Apodaca, N.L.)

Condition: New

Weight:   155.00

Depth:   36.00

Length:   40.00

Width:   48.00

SKU:   57571 4.R2.6.1
