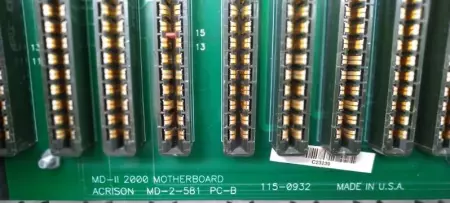

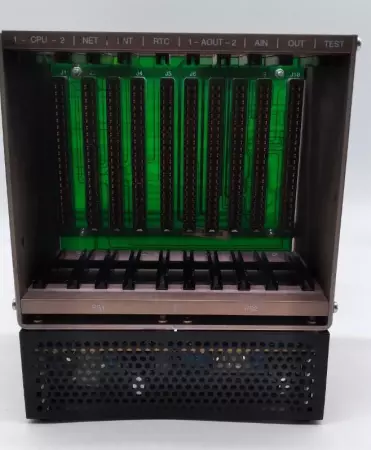

Acrison MD-2-581 PC-B 10-Slot Module Rack

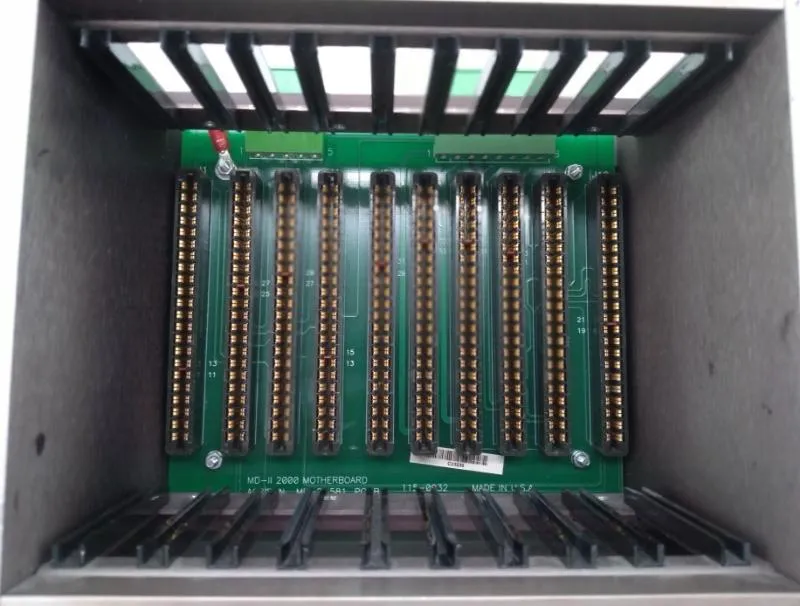

The Acrison MD-2-581 PC-B is a 10-slot modular rack used primarily in Acrison’s weight-loss and continuous metering systems. It forms the backbone of a modular controller system, providing physical mounting and electrical backplane connectivity for various control, I/O, and interface modules. Technical Specifications: • Model: MD-2-581 PC-B • Rack Type: Backplane-based 10-slot module rack • Number of Slots: 10 • Compatibility: Designed for Acrison MD series modules including weigh feeder controls, I/O, and communication modules • Construction: Rugged metal chassis with DIN-rail or panel-mount capability • Backplane: Integrated PCB-style electrical bus providing inter-module communication and power distribution • Module Connection: Edge card connector for plug-in modules • Power Input: Typically powered via dedicated power supply • Operating Voltage (Backplane): +5 VDC and ±12 VDC (distributed via power supply module) • Cooling: Passive (vented enclosure recommended) • Enclosure Rating: Intended for installation inside NEMA-rated enclosures (typically NEMA 12 or 4) • Operating Temperature: 0 °C to 50 °C • Humidity: 5% to 90% non-condensing • Dimensions (Approx.):  - Width: ~450 mm  - Height: ~180 mm  - Depth: ~120 mm • Weight: Approx. 3.5 – 4.5 kg (empty rack, without modules)

Condition: Used

Weight:   7.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   57602 4.S1.11.2
