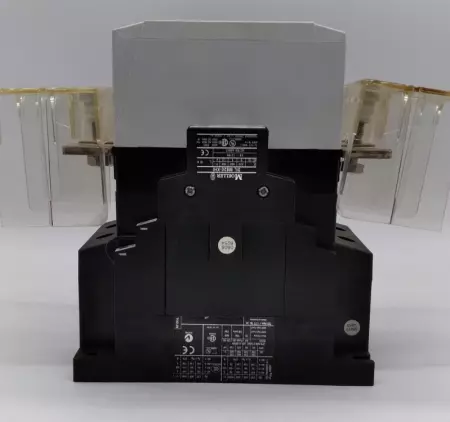

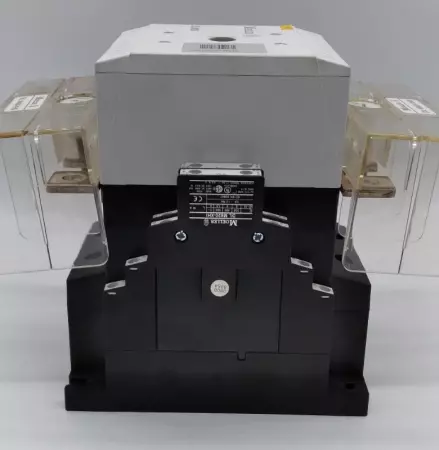

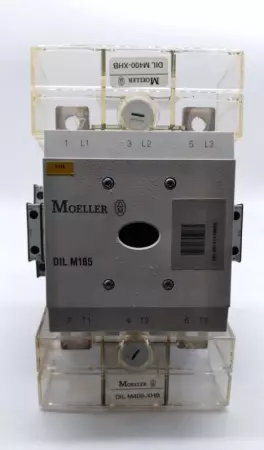

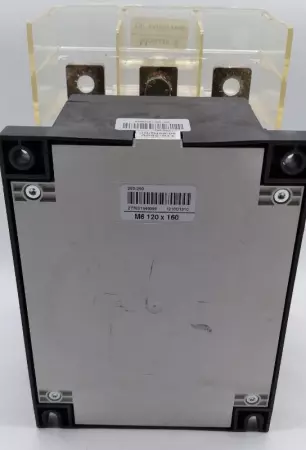

Moeller DIL M185 Contactor 600V 225A w/Coperture

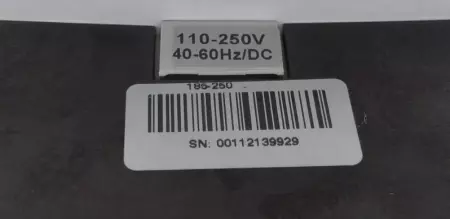

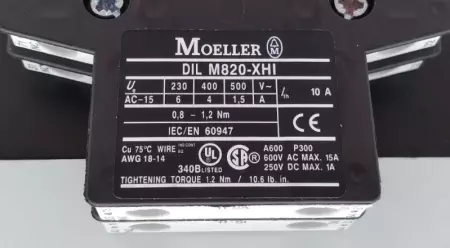

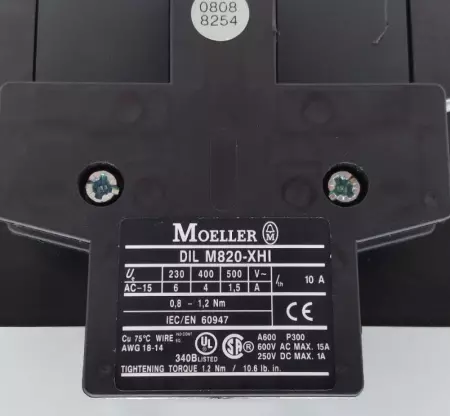

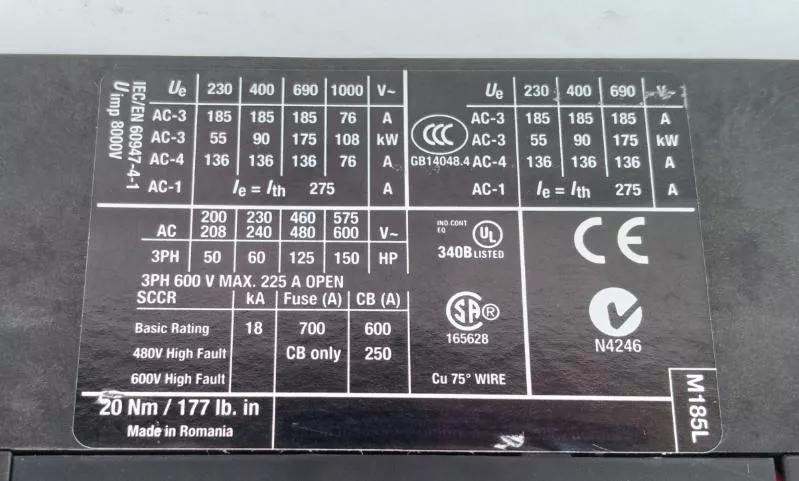

The Moeller DIL M185 is a heavy-duty 3-pole power contactor rated for high-power switching applications up to 225A and 600V. It is equipped with the DIL M820-XHI auxiliary contact block to provide additional control signaling for automation and safety interlocks. This assembly is commonly used in motor control centers and industrial power distribution systems. Technical Information – DIL M185 Contactor: Manufacturer: Moeller (Now Eaton) Model: DIL M185 Contactor Type: 3-pole power contactor Rated Operational Voltage: Up to 600V AC Rated Current (AC-3): 225 A @ 400/415V AC Control Voltage Coil Options: 110V- 250V AC Mounting: Panel or DIN rail mount Power Terminals: Screw or bolt connections for large gauge cables/busbars Mechanical Durability: Over 1 million operations Electrical Life (AC-3): ~1 million operations (depending on load) Standard Compliance: IEC/EN 60947, UL, CSA Applications: Motor starters, pumps, compressors, HVAC systems, power distribution Enclosure: Open frame (IP00), designed for enclosure mounting Technical Information – DIL M820-XHI Auxiliary Contact Block: Model: DIL M820-XHI Type: Auxiliary contact module Contact Configuration: Typically 2 N/O + 2 N/C (verify specific version) Mounting: Snap-on top or side mount to main contactor Current Rating: 10 A @ 400V AC Function: Status signaling, interlocking, or control circuit feedback

Condition: Used

Weight:   18.00

Depth:   16.00

Length:   16.00

Width:   16.00

SKU:   57655 4.S1.10.1
