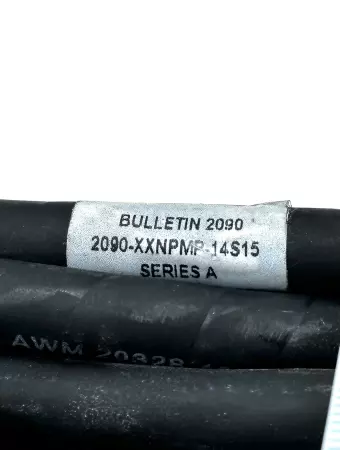

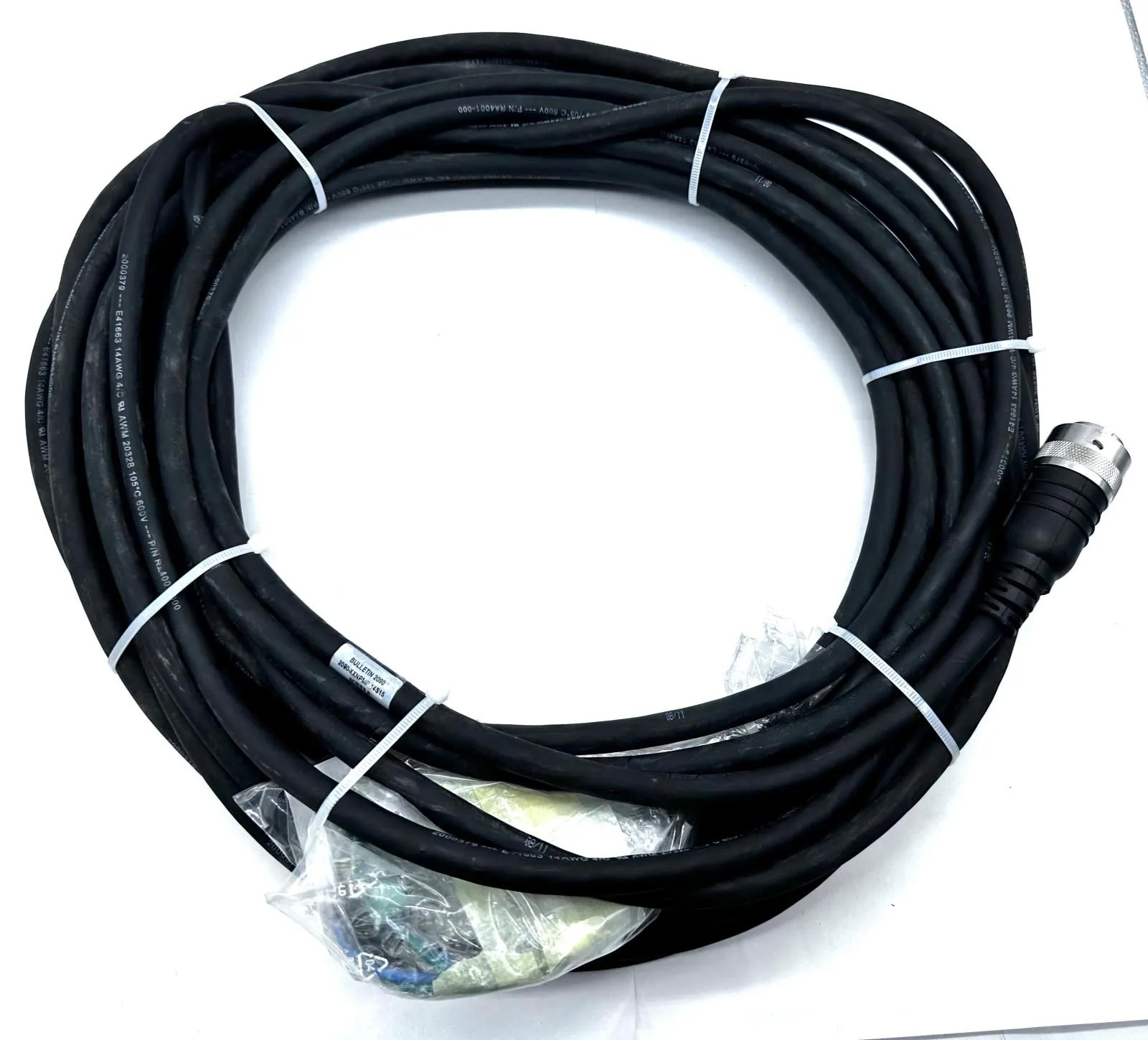

Allen-Bradley 2090-XXNPMP-14S15 SER.A Servo Motor Cable, 42 Ft

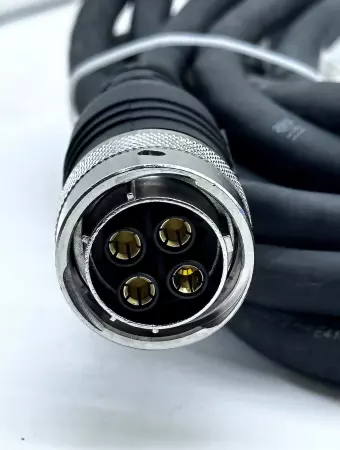

Flexible, factory-terminated servo motor cable designed for use with Allen-Bradley Kinetix motion control systems. The Allen-Bradley 2090-XXNPMP-14S15 SER.A is part of the 2090 series, providing secure power and feedback transmission between servo drives and motors. Technical Specifications: Catalog Number: 2090-XXNPMP-14S15 Series: A Cable Type: Combination power and feedback cable Length: 42 feet (12.8 meters) Connector A: Drive-end flying leads (non-terminated or prepared for terminal block) Connector B: Motor-end SpeedTec DIN connector (M23, 14-pin) Cable Diameter: Approx. 14 mm Conductor Gauge: 14 AWG (power), 22–24 AWG (feedback/signal) Voltage Rating: 600 V (power conductors) Temperature Rating: –20 °C to +80 °C (fixed), –10 °C to +80 °C (flexible) Shielding: Overall foil and braided shielding for EMI/RFI protection Jacket Type: Industrial-grade PVC or TPE (black) Flex Rating: Standard flex (non-continuous motion) Motor Compatibility: MPL, MPF, VPL, and TL-series motors with M23 connectors Certifications: UL, CSA, RoHS compliant Application: Fixed installation in industrial automation systems connecting Kinetix drives to servo motors

Condition: Used

Weight:   19.00

Depth:   5.00

Length:   20.00

Width:   20.00

SKU:   58127 4.S2.16.3
