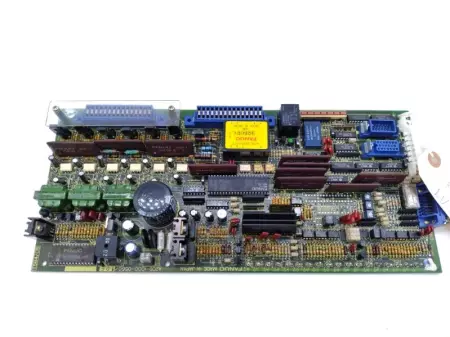

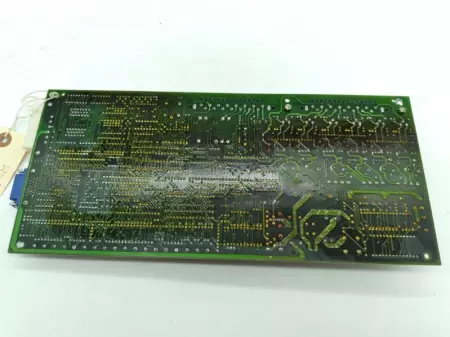

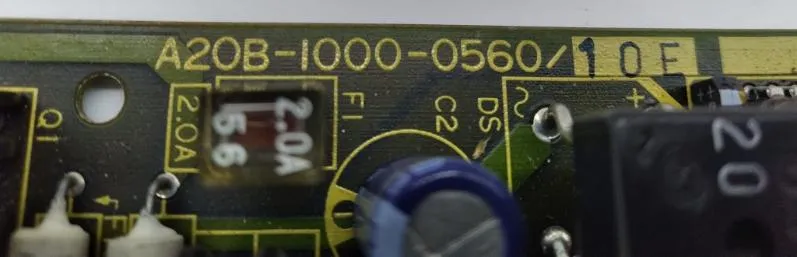

Fanuc A20B-1000-0560/10E PC Circuit Board

The Fanuc A20B-1000-0560/10E is an industrial-grade printed circuit board (PCB) used in CNC control systems. It is a main CPU board designed for use in Fanuc Series 6, 10, or 11 control systems, facilitating system processing and machine control functions. Technical Information: Manufacturer: Fanuc Part Number: A20B-1000-0560/10E Type: Main CPU PC board Application: CNC controllers (commonly in Fanuc 6M/6T, 10M/10T, or 11M/11T series) Slots/Connectors: Multiple ribbon and edge connectors for peripheral and I/O interface Memory: Onboard RAM/ROM with EPROM sockets Processor: Fanuc proprietary or Motorola processor (variant depending on version) Mounting: Plug-in style for backplane or rack system Power Requirements: Supplied via backplane (standard Fanuc bus voltage, typically +5V DC) Status Indicators: May include onboard LEDs for diagnostics Cooling: Passive (reliant on cabinet airflow) Form Factor: Standard Fanuc CNC rack-mount board size Typical Use: Drives CNC operations, motion control, and I/O management

Condition: Used

Weight:   14.00

Depth:   8.00

Length:   18.00

Width:   18.00

SKU:   58182 4.S1.12.2
