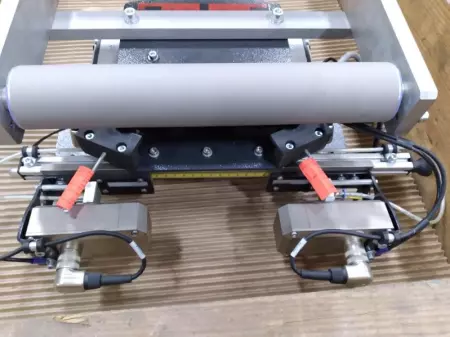

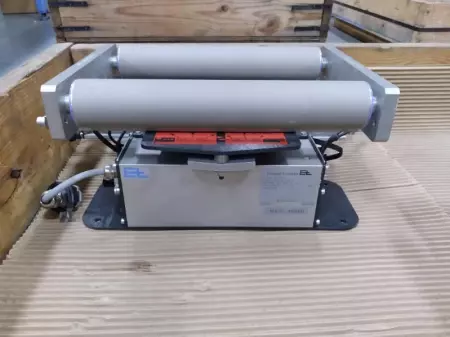

Erhardt+Leimer DRS2275 Web Guide System

The Erhardt+Leimer DRS2275 is a compact web guide system designed for precise lateral correction of web materials in various continuous processing industries such as printing, converting, packaging, and textiles. Known for its reliability and fast response time, the DRS2275 ensures accurate edge or centerline guiding of webs using a combination of electromechanical actuators and high-performance sensors. Technical Specifications: Manufacturer: Erhardt+Leimer Model: DRS2275 System Type: Compact web guiding system Function: Corrects lateral web position based on edge or centerline sensing Guiding Principle: Typically uses edge sensors (ultrasonic or optical) and closed-loop servo control Actuator Type: Integrated electromechanical actuator Stroke Length: Common stroke lengths range from 50 mm to 150 mm (model-dependent) Web Width Range: Suited for narrow to medium-width webs (exact width depends on configuration) Max Correction Speed: High-speed response suitable for fast-moving webs Mounting: Flange or bracket-mounted in line with the web path Control System Compatibility: Can be connected to E+L controllers such as DO 2001 or EL.NET systems Sensors: Compatible with E+L edge sensors (e.g., FR 52, FE 52) Material Types Supported: Paper, film, foil, textiles, nonwovens, etc. Power Supply: Typically 24 VDC 2.5 Amps (for actuator and sensor systems) Applications: Narrow web printing, label production, packaging, and converting lines NB 300mm, LUE 250mm

Condition: Used

Weight:   51.00

Depth:   12.00

Length:   18.00

Width:   24.00

SKU:   58232 4.R2.6.4
