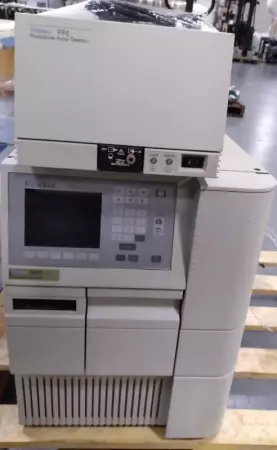

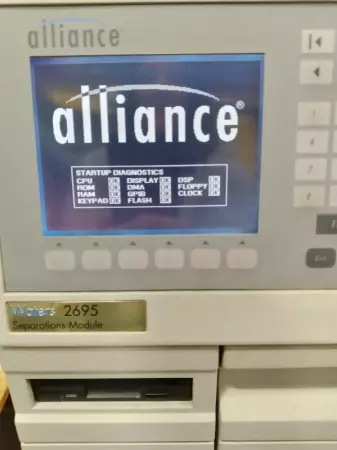

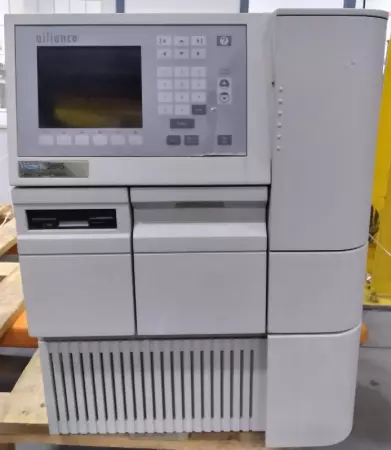

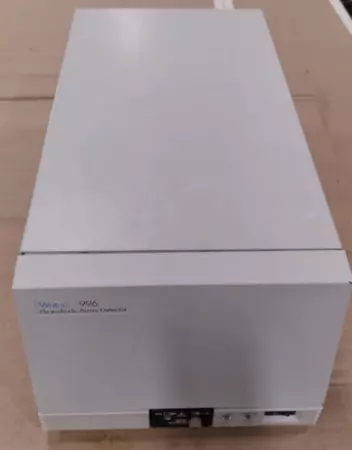

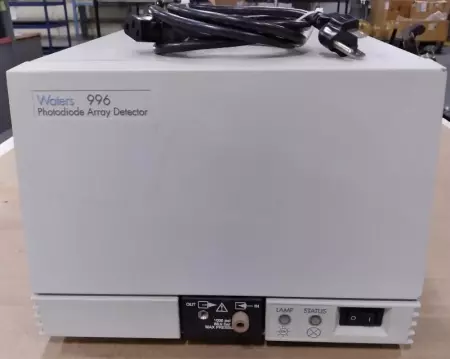

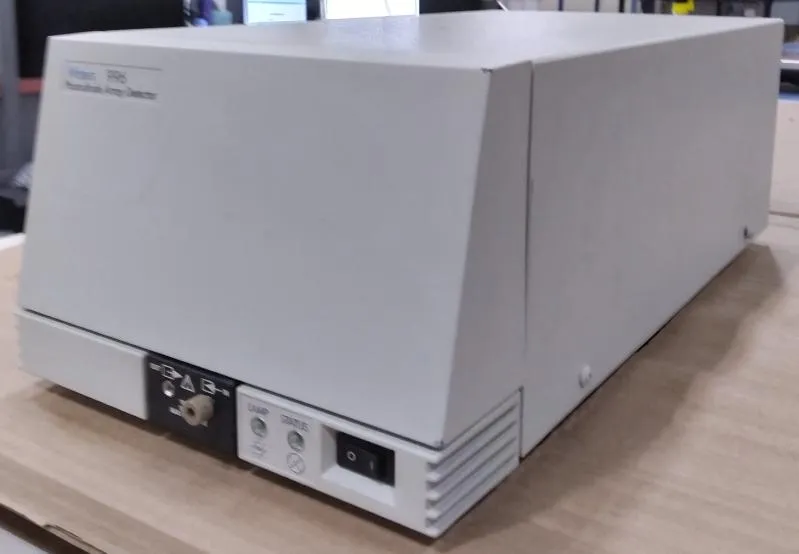

Alliance WATERS 996 Separation Module 2695 W/Photodiode Array Detector

High-performance liquid chromatography (HPLC) system combining the Waters 2695 separation module with the Waters 996 photodiode array detector, designed for robust and precise chromatographic analysis across multiple wavelengths. Technical Specifications: System Type: HPLC with integrated separation and detection Separation Module Model: Waters 2695 Pump Type: Quaternary low-pressure mixing pump Flow Rate Range: 0.000–10.000 mL/min, in 0.001 mL/min increments Flow Accuracy: ±1% Flow Precision: ±0.1% RSD or 0.02 min SD Operating Pressure: Up to 5000 psi (345 bar) Injector: Fixed loop or variable volume (typically 1–100 µL programmable) Sample Capacity: Up to 120 vials (2 mL standard) Column Oven: Temperature-controlled, ambient to 65°C Detector Model: Waters 996 Photodiode Array Detector Detection Method: Photodiode array (PDA) Wavelength Range: 190–800 nm Wavelength Accuracy: ±1 nm Data Collection Rate: 1 to 20 Hz Optical Resolution: 1.2 nm Light Source: Deuterium lamp Communications: RS-232 or Ethernet (depending on configuration) Power Requirements: 100–240 VAC, 50/60 Hz Applications: Pharmaceutical analysis, environmental testing, food safety, chemical research Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   149.00

Depth:   36.00

Length:   36.00

Width:   36.00

SKU:   58404 4.R4.7.4
