In stock 1 available

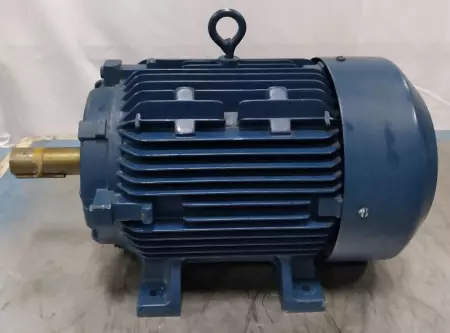

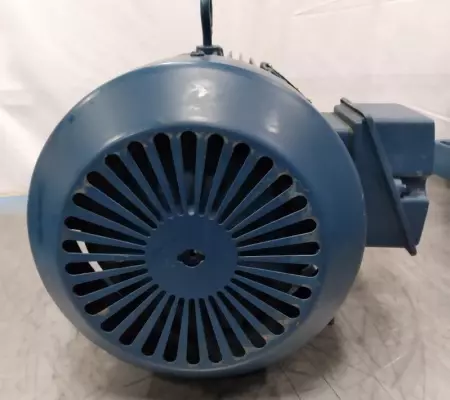

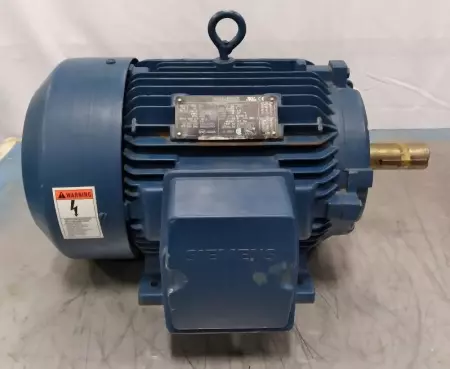

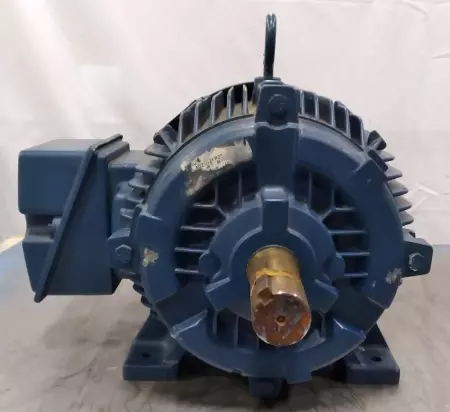

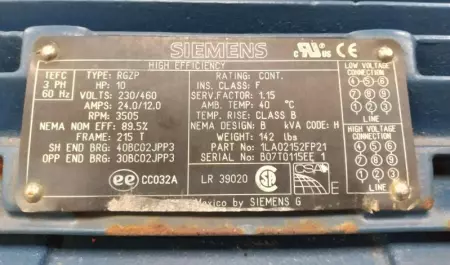

The Siemens 1LA02152FPZ1 is a 10 HP high-efficiency AC induction motor, designed for industrial applications requiring reliable performance, energy efficiency, and robust construction. With a 215T frame, this motor is built to NEMA standards and is ideal for pumps, compressors, conveyors, and other general-purpose machinery. Technical Specifications: Manufacturer: Siemens Model Number: 1LA02152FPZ1 Motor Type: Three-phase AC induction motor Horsepower: 10 HP Voltage: Typically 230/460V (dual-voltage, 60 Hz) – verify specific nameplate Full Load Amps (FLA): ~24 A @ 230V / ~12 A @ 460V (approximate) Speed: 3505 rpm Frame Size: 215T (NEMA standard) Mounting: Foot-mounted (horizontal, rigid base) Enclosure Type: TEFC (Totally Enclosed Fan Cooled) Efficiency Class: NEMA Premium Efficiency or High Efficiency (depends on specific sub-model) Service Factor: 1.15 (typical) Insulation Class: Class F Duty: Continuous (S1) Bearings: Grease-lubricated, sealed (maintenance-friendly design) Construction: Cast iron frame for durability Certifications: UL recognized, CSA certified, and CE marked (typically)
Condition: Used
Weight: 151.00
Depth: 14.00
Length: 26.00
Width: 20.00
SKU: 58634 4.R4.6.4
