In stock 1 available

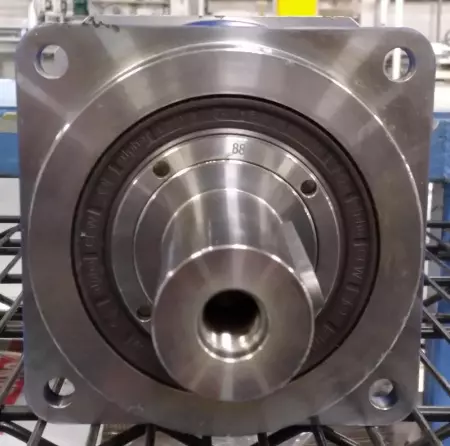

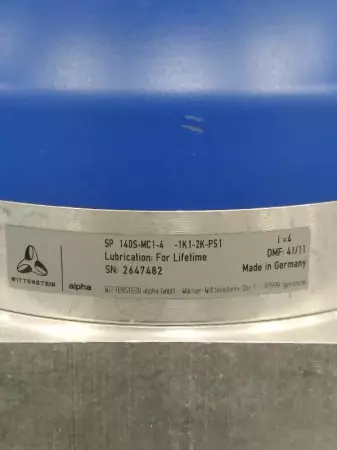

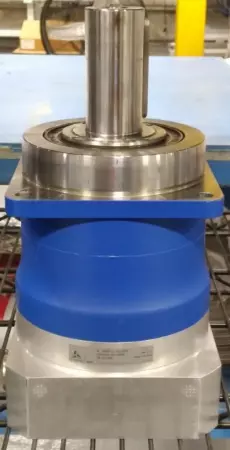

Description: High-precision, low-backlash planetary gearbox designed for dynamic servo applications requiring accurate torque transmission and positioning Gearbox Type: SP+ Series Size: 140 Design: MC1 (motor-mounted configuration) Gear Ratio: 4:1 Number of Stages: 1 Output Shaft: Keyed shaft with a diameter of 40 mm Input Compatibility: Designed for servo motor integration Nominal Output Torque (T2N): Approximately 195 Nm Maximum Acceleration Torque (T2B): Up to 480 Nm Torsional Backlash: Standard ≤ 4 arcmin; Reduced ≤ 2 arcmin Torsional Rigidity: High rigidity for precise motion control Efficiency: Up to 97% at full load Lubrication: Lubricated for life Protection Class: IP65 (dust-tight and protected against water jets) Operating Temperature Range: -15°C to +40°C Mounting: Flange with slotted holes for versatile mounting options Applications: Ideal for use in robotics, automation, packaging machinery, and other applications requiring precise motion control
Condition: Used
Weight: 40.00
Depth: 16.00
Length: 16.00
Width: 16.00
SKU: 58639 4.R5.3.1
