Stober K21R-71-G-4 Gearmotor, 0.37kW, Reducer Ratio 56.36:1

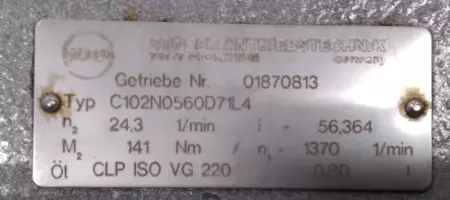

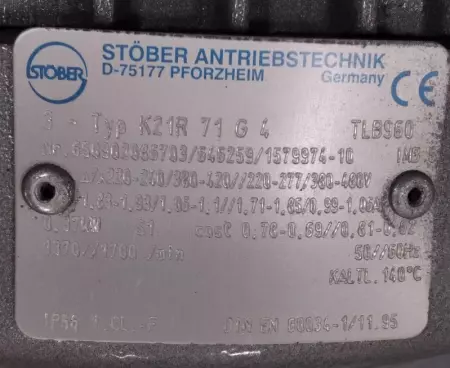

This unit combines a Stöber K-series gearmotor with a precision planetary reducer. It's built for high-torque, low-speed output with a compact footprint, ideal for continuous-duty industrial automation. Motor Specs (Stöber K21R-71-G-4): Power: 0.37 kW Voltage: 220–240/380–420 V or 220–277/380–480 V (3-phase) Speed: 1370 / 1700 rpm Duty Cycle: S1 (continuous) Frequency: 50/60 Hz Insulation Class: F Enclosure: IP56 Max Ambient Temp: 140°C Cosφ: 0.78–0.62 (varies by configuration) Gearbox Specs (C102N0560D71L4): Gear Ratio: 56.364:1 Output Speed: 24.3 rpm Output Torque: 141 Nm Input Speed: 1370 rpm Oil Type: CLP ISO VG 220 Oil Volume: 0.80 liters Application: Heavy-duty, continuous-process environments such as conveyors, packaging lines, material handling, and robotics requiring low-speed, high-torque precision.

Condition: Used

Weight:   35.00

Depth:   20.00

Length:   20.00

Width:   20.00

SKU:   58698 4.R4.3.3
