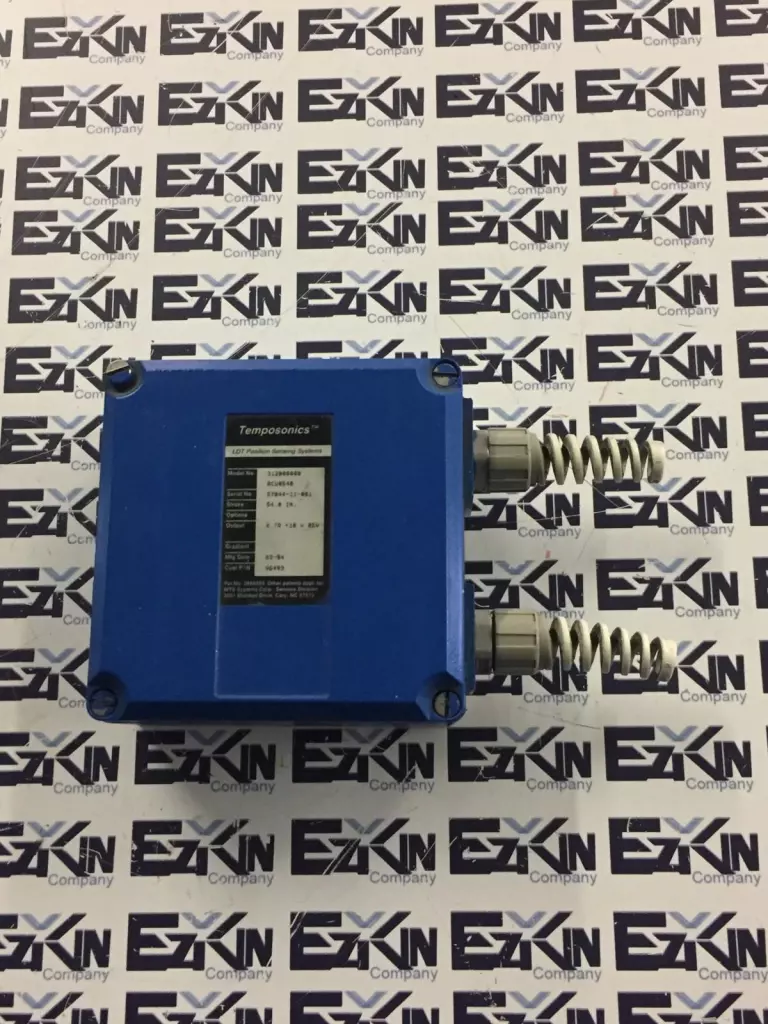

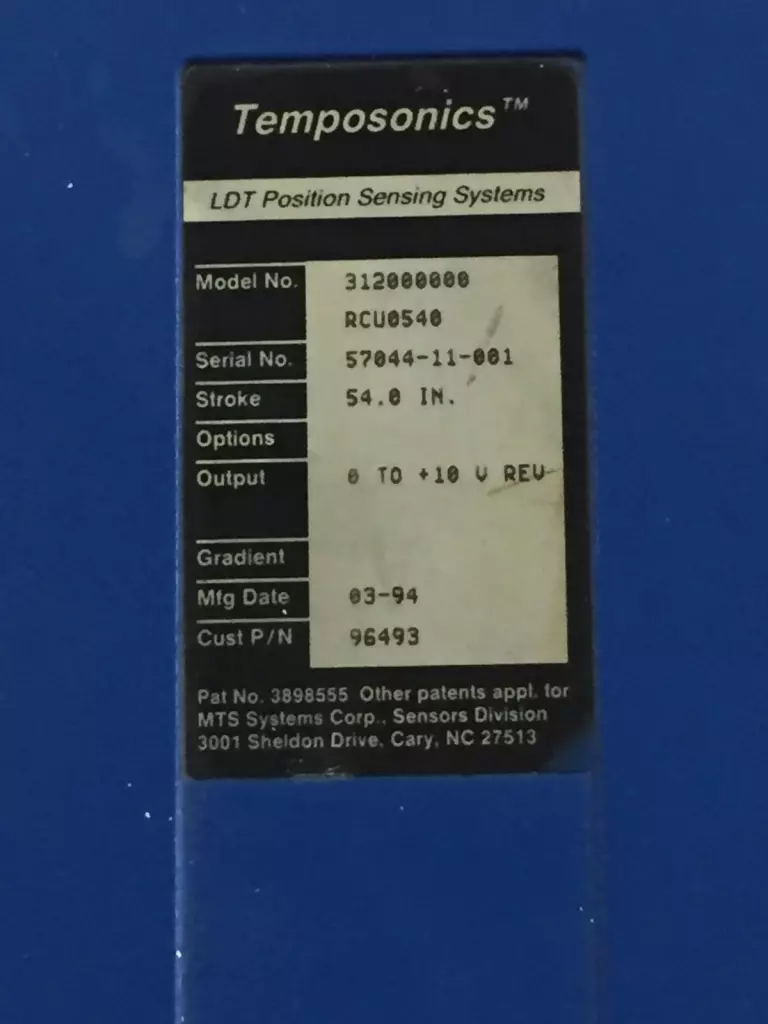

Temposonics 312000000 RCU0540 LDT position sensing system, magnetostrictive linear displacement transducer designed for precise, non-contact measurement of linear position in industrial automation and motion control applications. Model: 312000000 RCU0540 Type: Magnetostrictive linear displacement transducer (LDT) Measuring Range: 540 mm Output Signal: Analog or digital (model-dependent, typically 0–10V, 4–20mA, SSI, or start/stop pulse) Resolution: Up to 0.001 mm (depending on configuration) Linearity: ±0.02% of full scale Repeatability: ±0.001 mm Operating Pressure: Up to 350 bar (for in-cylinder versions) Rod Material: Stainless steel, corrosion-resistant Electronics Housing: Aluminum or stainless steel with IP67 protection Operating Temperature: -40°C to +75°C (electronics), -40°C to +100°C (sensor rod) Mounting: Threaded or flange mount for hydraulic/pneumatic cylinders or external mounting Connection: M12, DIN, or cable gland Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.50
Depth: 4.00
Length: 10.00
Width: 8.00
SKU: 5939 4.S5.15.5
