In stock 1 available

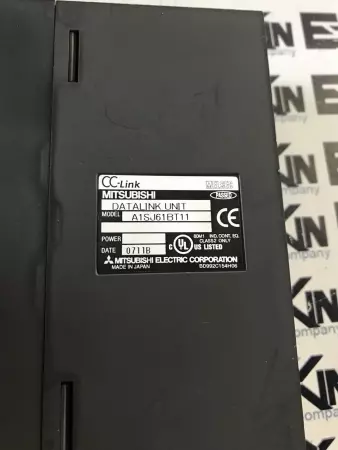

Compact communication module designed for Mitsubishi MELSEC System Q PLCs. Enables data link communication over the CC-Link field network for high-speed and decentralized control across various devices in industrial automation environments. Technical Specifications: Model: A1SJ61BT11 Applicable Network: CC-Link Network Type: Open Field Network Transmission Speed: 156 kbps / 625 kbps / 2.5 Mbps / 5 Mbps / 10 Mbps (auto-switching) Station Type: Remote Device Station Max Number of Occupied Stations: 2 stations Maximum Cable Distance: 100 m (10 Mbps), 1,200 m (156 kbps) Connector Type: 1 x 5-pin terminal block (CC-Link cable) Power Supply: Supplied from the base unit Power Consumption: 0.4 W Mounting: MELSEC-Q Series base unit Operating Temperature: 0°C to 55°C Storage Temperature: -25°C to 75°C Ambient Humidity: 5% to 95% RH (non-condensing) Insulation Resistance: Minimum 10 MΩ (500 VDC) Dielectric Withstand Voltage: 500 VAC for 1 minute Weight: Approx. 0.15 kg Certifications: CE, UL, cUL, KC Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.50
Depth: 4.00
Length: 10.00
Width: 8.00
SKU: 659 4.S9.14.4
