In stock 1 available

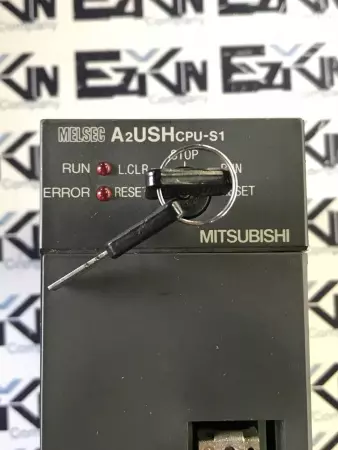

High-performance CPU module from the MELSEC AnSH series designed for complex control applications. It offers enhanced processing speed, increased program capacity, and compatibility with various MELSEC system modules for flexible automation system configuration. Technical Specifications: Model: A2USHCPU-S1 Series: MELSEC AnSH Type: High-performance CPU unit Program Capacity: 32K steps Internal Relay (Device) Capacity: 8192 points (X/Y), 8192 points (M), 2048 timers, 1024 counters, 8000 data registers Execution Speed: 0.1 µs per basic instruction Interface Ports: 1 x RS-232 (programming/monitoring) Number of I/O Points: Up to 8192 points Number of I/O Modules: Up to 63 modules Memory Type: Battery-backed RAM Peripheral Devices Supported: GX Developer, GX IEC Developer Mounting: MELSEC AnSH Series base unit Power Supply: Supplied from base unit Power Consumption: Approx. 1.1 A at 5 VDC Operating Temperature: 0°C to 55°C Storage Temperature: -25°C to 75°C Ambient Humidity: 5% to 95% RH (non-condensing) Dimensions: Approx. 130 mm (H) × 35 mm (W) × 98 mm (D) Weight: Approx. 0.25 kg Battery: Lithium battery for program retention (replaceable) Diagnostics: Self-diagnosis function included Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.15
Depth: 6.00
Length: 12.00
Width: 9.00
SKU: 661 4.S8.4.4
