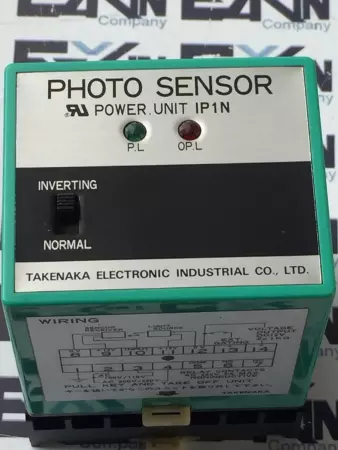

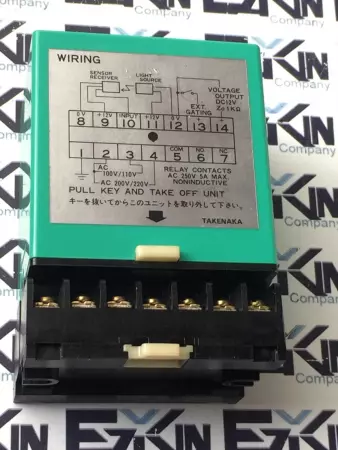

Takenaka Electronic IP1N Photo Sensor Power Unit

Dedicated power supply unit for Takenaka photoelectric sensors. Provides regulated DC voltage to enable stable operation of multiple photo sensors in industrial automation applications, with overload protection and robust performance. Technical Specifications: Model: IP1N Type: Photo sensor power unit Output Voltage: 12 VDC Output Current: 200 mA max Input Voltage: 100 to 240 VAC, 50/60 Hz Power Consumption: Approx. 5 A Number of Sensor Channels: Typically supports 1 to 2 sensors (depending on sensor type) Output Protection: Overcurrent protection included Connection Type: Terminal block Mounting Method: DIN rail or panel mount Case Material: Metal enclosure Operating Temperature: 0°C to 50°C Storage Temperature: -20°C to 70°C Ambient Humidity: 35% to 85% RH (non-condensing) Dimensions: Approx. 100 mm (H) × 50 mm (W) × 120 mm (D) Weight: Approx. 0.35 kg Indicator: Power ON LED Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.10

Depth:   4.00

Length:   7.00

Width:   7.00

SKU:   665 4.S5.14.4
