In stock 2 available

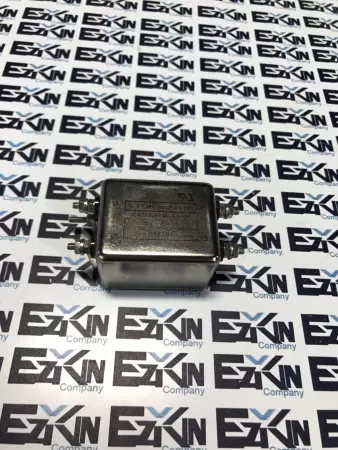

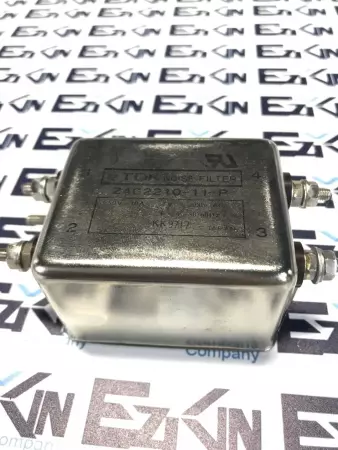

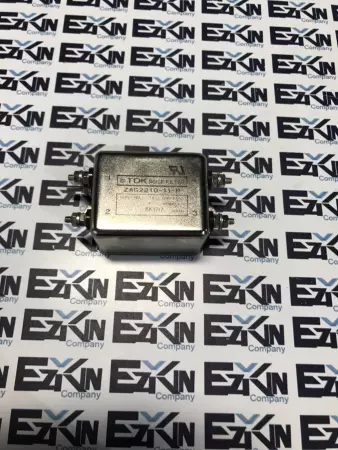

Single-phase EMI/RFI noise filter designed to suppress electromagnetic interference in industrial and commercial power line applications. Provides effective attenuation of conducted noise to protect sensitive electronic equipment. Technical Specifications: Model: ZAG2210-11-P Manufacturer: TDK Corporation Rated Voltage: 250 VAC Rated Current: 10 A Rated Frequency: 50/60 Hz Leakage Current: ≤1.0 mA max (typical at 250 V / 60 Hz) Attenuation Characteristics: High-frequency noise suppression in both differential and common mode Impedance Type: Low impedance (suitable for general-purpose applications) Connection Type: Quick-connect terminals or screw terminal (varies by version) Mounting Style: Chassis mount with metal flanged case Operating Temperature Range: -25°C to +85°C (with derating above 50°C) Insulation Resistance: ≥100 MΩ at 500 VDC Dielectric Withstand Voltage: Line to ground 2000 VAC for 1 minute Case Material: Metal enclosure (nickel-plated steel) Dimensions: Approx. 85 mm (L) × 45 mm (W) × 30 mm (H) Weight: Approx. 150 g Safety Standards: UL, CSA, VDE approved Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.40
Depth: 6.00
Length: 4.00
Width: 6.00
SKU: 694 4.S8.13.4
