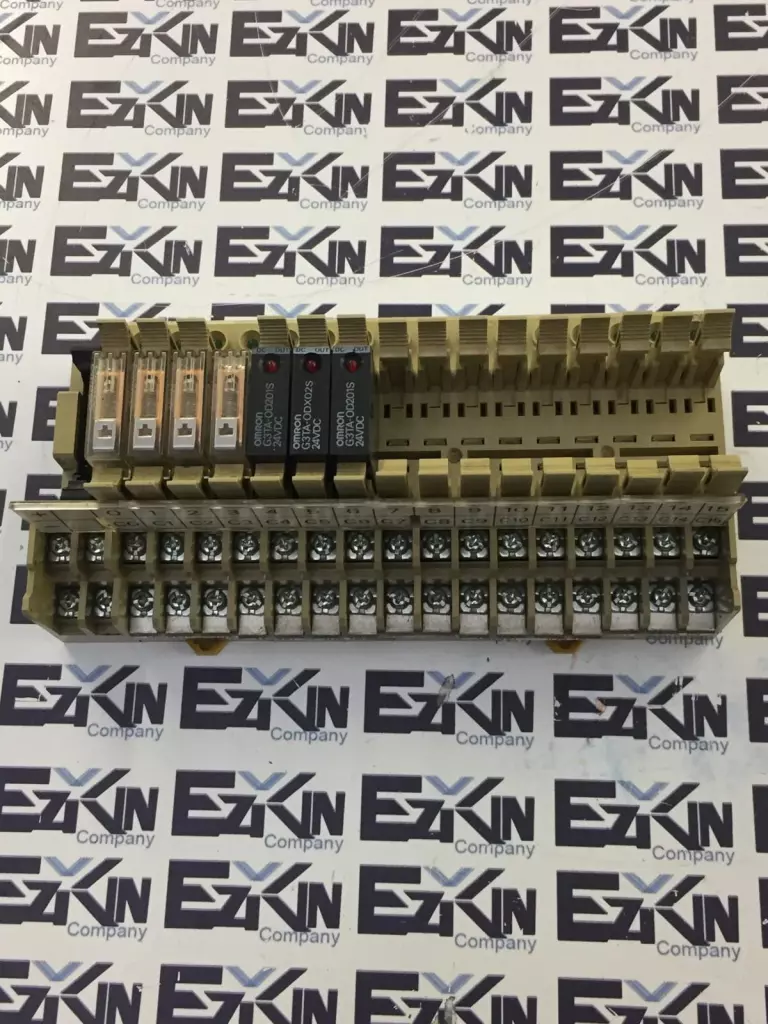

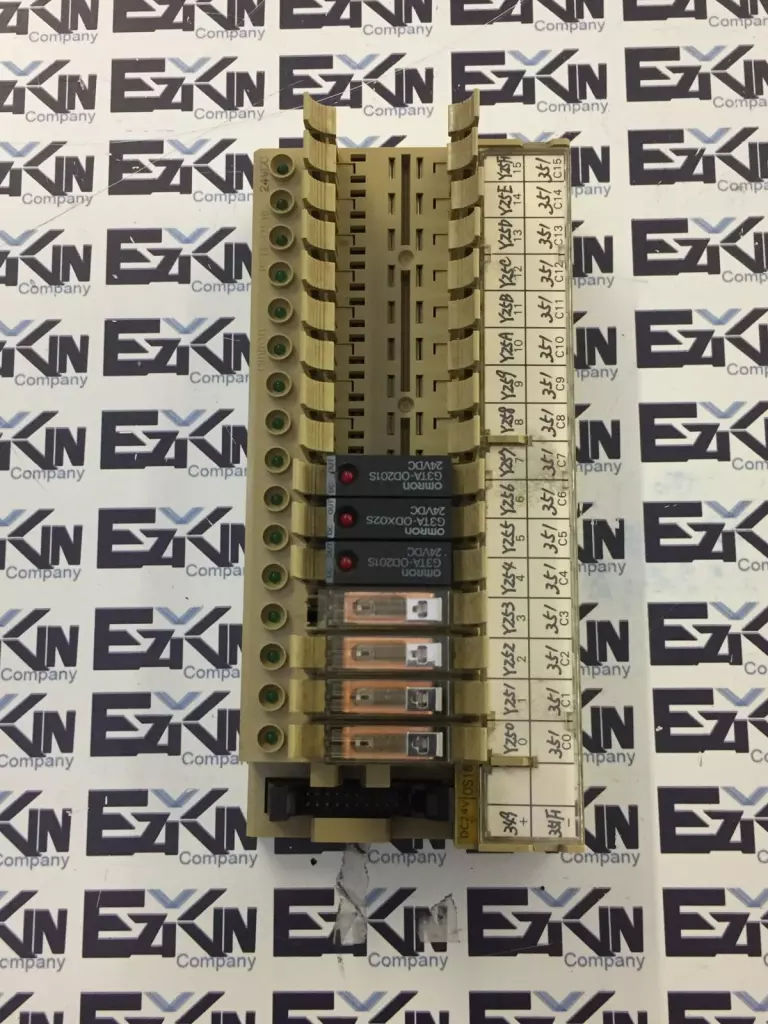

Omron P7TF-OS16 Relay Block Base 16-Slot with 7 Relays 24 VDC

Modular relay terminal block for housing up to 16 plug-in relays. Pre-assembled with 7 Omron MY-series relays operating at 24 VDC, suitable for compact control panel installations and efficient I/O distribution.

Technical Specifications:

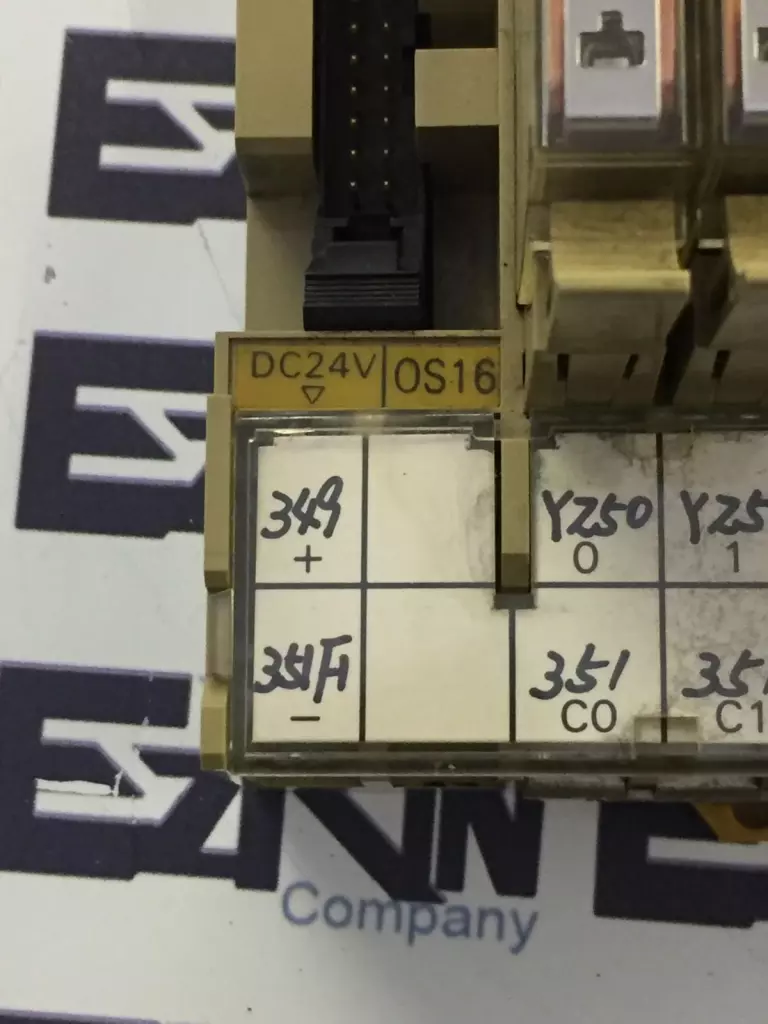

Model: P7TF-OS16
Relay Base Type: 16-slot terminal block for plug-in relays

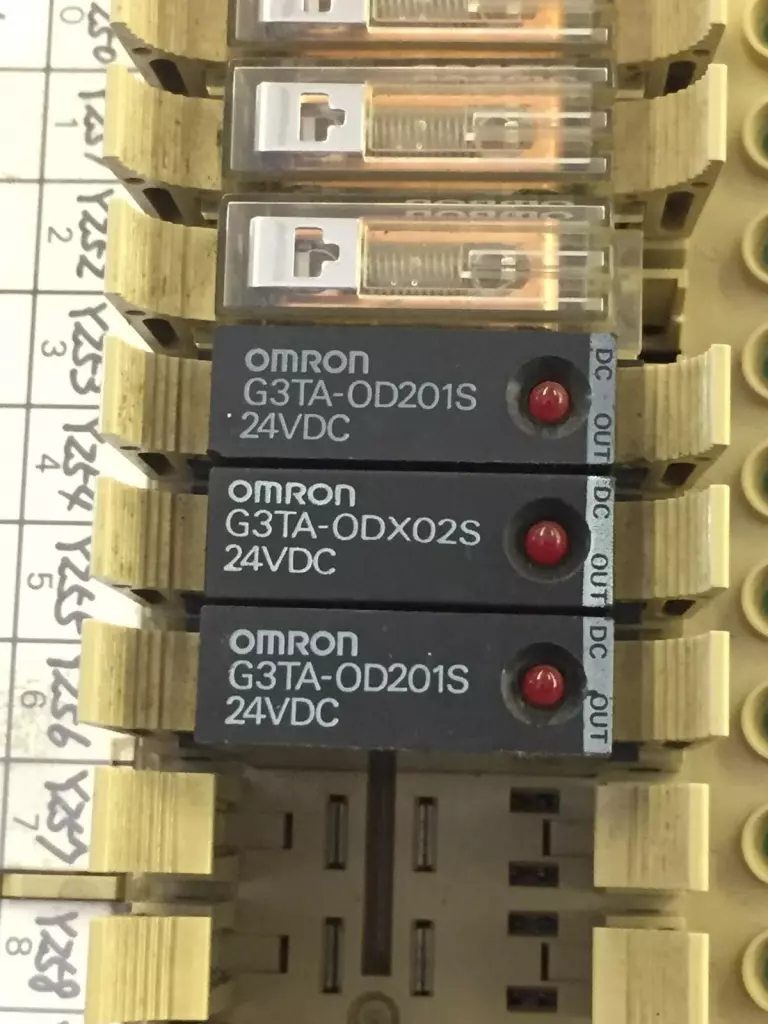

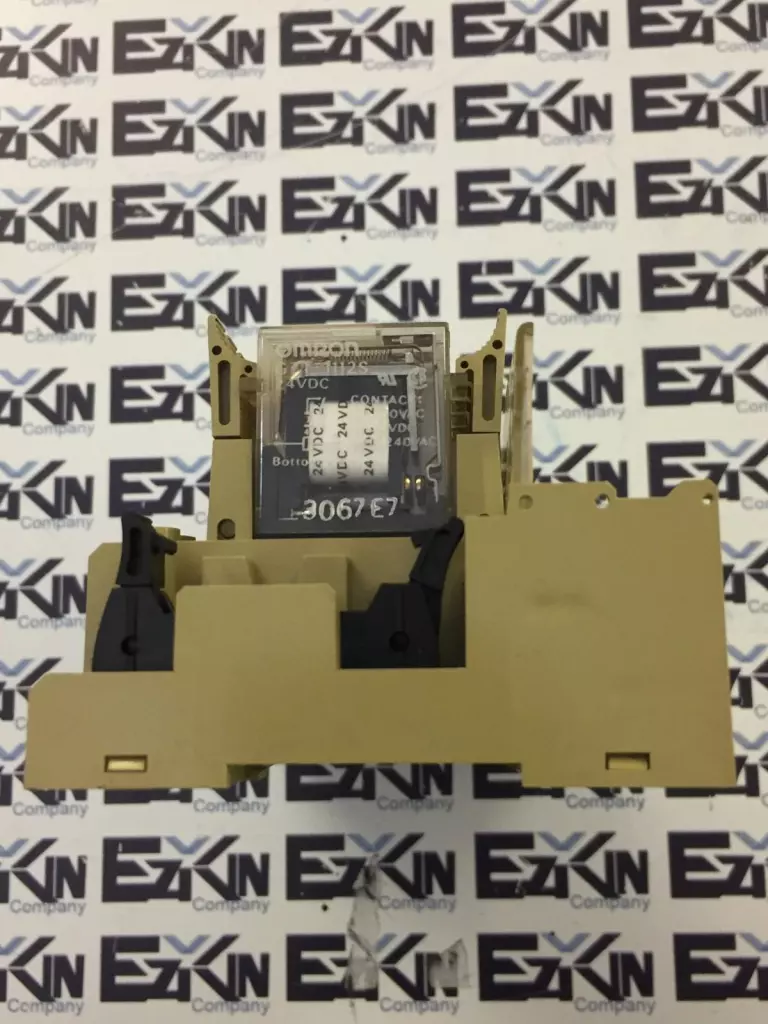

Pre-installed Relays: 7 x Omron MY series relays
Relay Coil Voltage: 24 VDC
Relay Contact Type: DPDT (Double Pole Double Throw) per MY relay
Rated Load (Resistive): 5 A at 250 VAC / 30 VDC per contact
Dielectric Strength: 2000 VAC for 1 minute between coil and contacts
Mounting Type: DIN rail or panel mount
Socket Type: Push-in terminal base (P7TF series)
Indicator: Relay operation indicator (LED, built-in per relay)
Protection: Built-in diode for coil surge suppression
Ambient Operating Temperature: -10°C to +55°C
Storage Temperature: -25°C to +70°C
Humidity Range: 5% to 85% RH (non-condensing)
Dimensions (Approx.): 195 mm (L) × 65 mm (H) × 90 mm (D)
Weight: Approx. 400 g (with 7 relays installed)
Manufacturer: Omron Corporation
Made in: Japan Please review pictures carefully and let us know if you have any questions!
