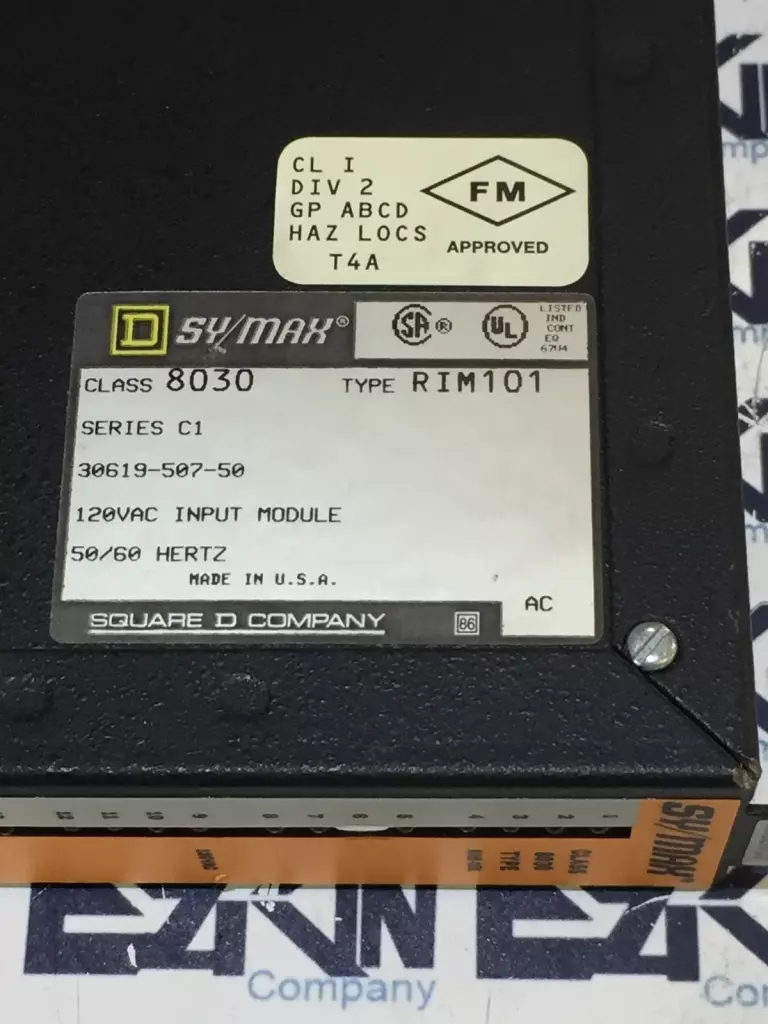

Square D RIM-101 SER. C1 Class 8030 SY/MAX Input Module 16-Channel

Digital input module from the Square D SY/MAX Class 8030 family, designed for monitoring 16 discrete field signals. Interfaces sensors, switches, and contacts to the SY/MAX programmable controller for high-speed logic processing in industrial automation.

Technical Specifications:
Model: RIM-101 SER.B
Series: SY/MAX Class 8030
Module Type: Remote Input Module (RIM)
Number of Channels: 16 digital inputs
Input Voltage: 120 VAC nominal
Input Type: AC (discrete signal)
Input Frequency: 50/60 Hz
Input Current: Approx. 10 mA per channel at 120 VAC
ON-State Voltage: 79–138 VAC
OFF-State Voltage: 0–20 VAC
Response Time: <15 ms (typical)
Input Isolation: Optical isolation between field and logic circuitry
Field Wiring Connector: Removable terminal block
Mounting: SY/MAX rack-mounted system
LED Indicators: Yes (1 per channel for status indication)
Ambient Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to +85°C
Humidity: 5% to 95% RH (non-condensing)
Weight: Approx. 0.5 kg
Manufacturer: Square D (Schneider Electric)
Made in: USA Please review pictures carefully and let us know if you have any questions!
