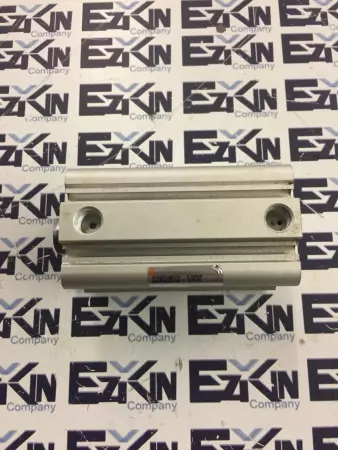

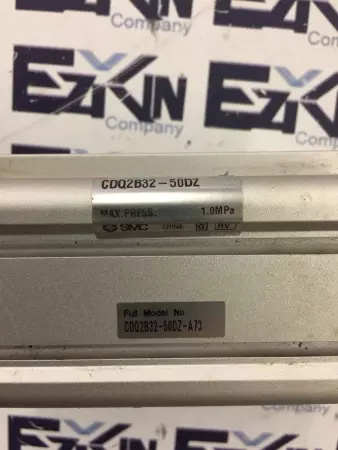

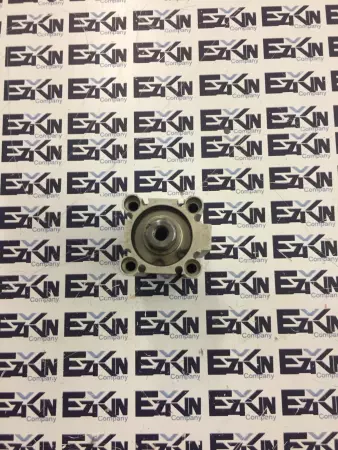

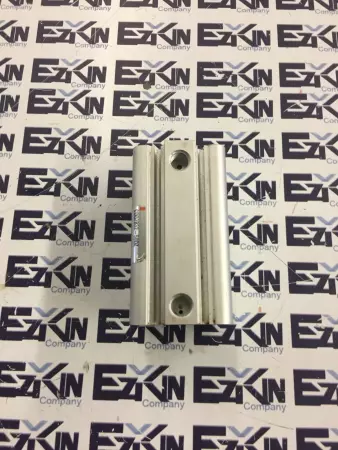

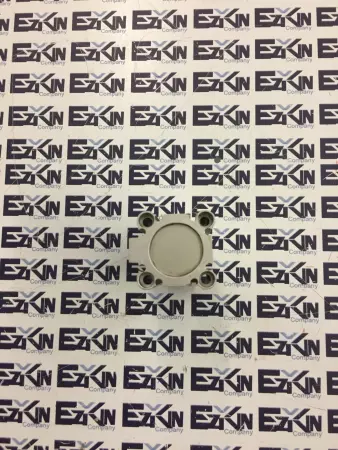

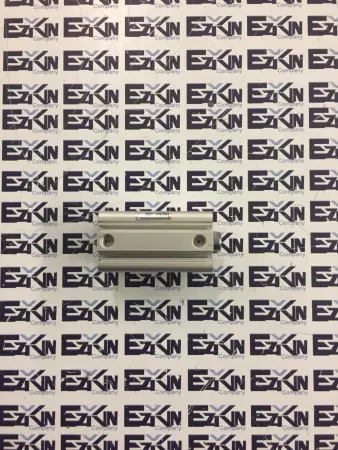

SMC CDQ2B32-50DZ-A73 Air Cylinder, 32mm Bore 50mm Stroke, 1.0MPa Max

Double-acting compact pneumatic actuator from SMC’s CQ2 series. Designed for space-saving linear motion in automated systems, featuring built-in auto switch mounting grooves and optional stroke adjusters. Technical Specifications: Model: CDQ2B32-50DZ-A73 Series: CQ2 Type: Double-acting, compact cylinder Bore Size: 32 mm Stroke Length: 50 mm Mounting Style: Basic type (standard through-hole or tapped) Cushion: Rubber bumper Port Size: M5 or 1/8" (depending on series version) Rod Type: Male thread Max Operating Pressure: 1.0 MPa (10.2 kgf/cm² or 145 psi) Minimum Operating Pressure: 0.1 MPa Proof Pressure: 1.5 MPa Ambient and Fluid Temperature: -10°C to +70°C (no freezing) Piston Speed: 50 to 500 mm/s Stroke Adjuster: Yes (–DZ type with adjustable stroke end) Magnet: Yes (for auto switch compatibility) Auto Switch: Includes A73 (reed switch type) Repeatability: ±0.1 mm Body Material: Aluminum alloy Rod Material: Stainless steel Lubrication: Not required (pre-lubricated) Weight: Approx. 270–310 g (depending on switch and options) Manufacturer: SMC Corporation Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.14

Depth:   4.00

Length:   7.00

Width:   7.00

SKU:   722 4.S6.1.3
