SMC VXZ2230-03-5GS1 Solenoid Valves Assy W/Block

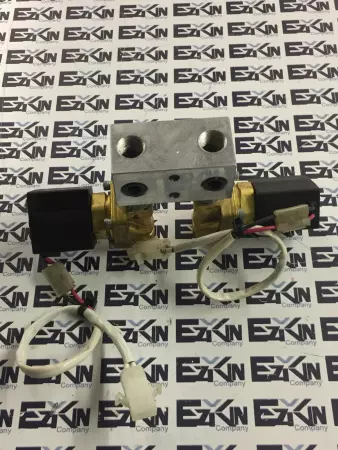

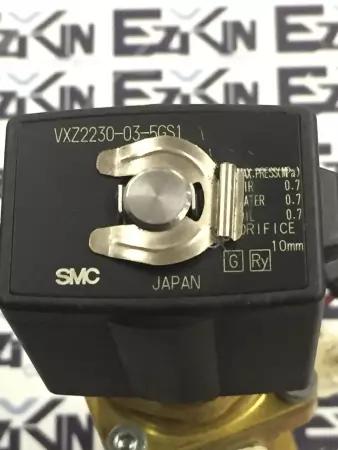

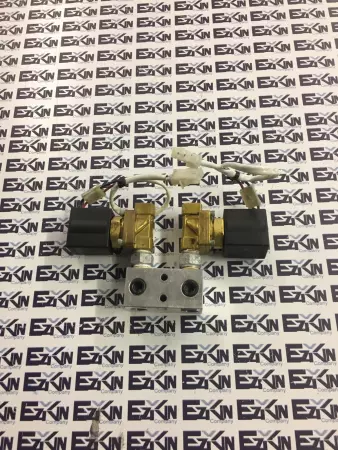

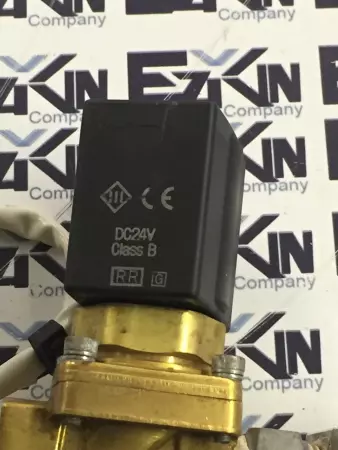

Dual solenoid valve setup from SMC’s VXZ series mounted on a shared manifold block. Designed for controlling fluid or air flow with a normally closed configuration, suitable for medium-pressure applications requiring reliable shutoff and quick response. Technical Specifications: Model: VXZ2230-03-5GS1 (×2 units) Valve Type: 2-port solenoid valve (normally closed) Actuation: Direct solenoid-operated Port Size: Rc 3/8 (03 size) Fluid Type: Air, water, or oil Seal Type: Special FKM for broad chemical compatibility Rated Voltage: 24 VDC (coil spec based on GS1 designation) Orifice Diameter: Approx. 10 mm Operating Pressure Range: 0 – 1.0 MPa Proof Pressure: 1.5 MPa Response Time: ~20 ms Body Material: Brass Seal Material: Special FKM Mounting: Manifold block (2-valve assembly) Manifold Material: Aluminum alloy or stainless (depending on option) Electrical Entry: Lead wire with grommet (integrated cable) Ambient Temperature: -10°C to +60°C Fluid Temperature: 1°C to 60°C Installation Orientation: Free Weight: Approx. 700–800 g (assembly) Manufacturer: SMC Corporation Made in: Japan Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   3.02

Depth:   4.00

Length:   10.00

Width:   8.00

SKU:   731 4.S6.2.2
