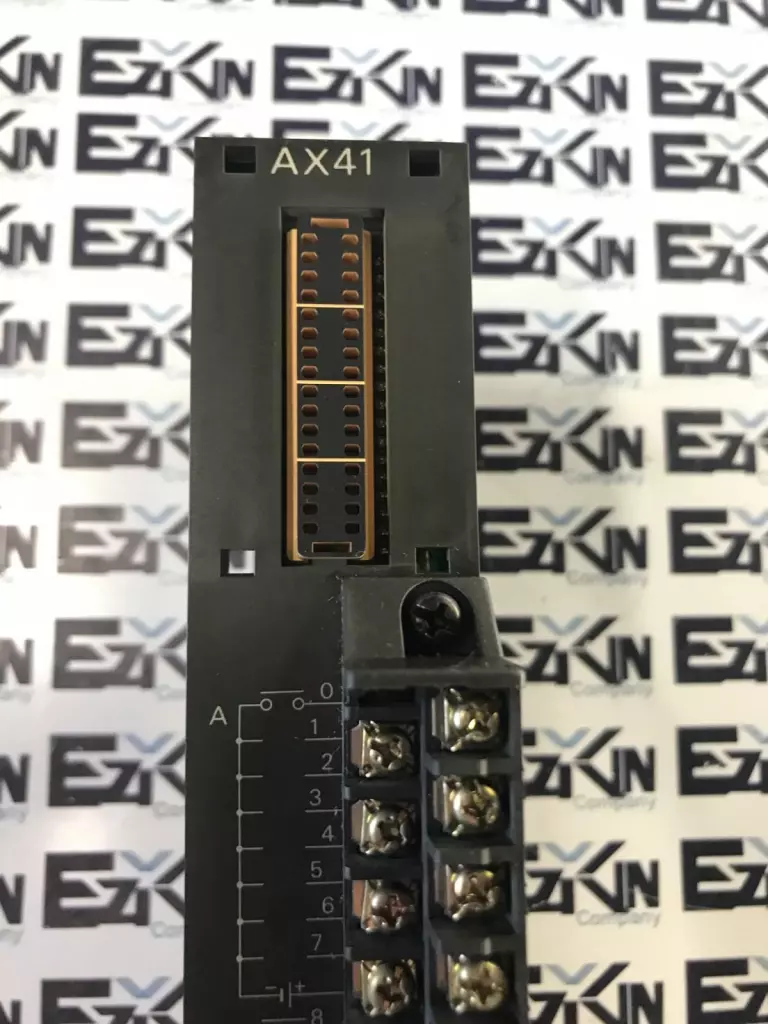

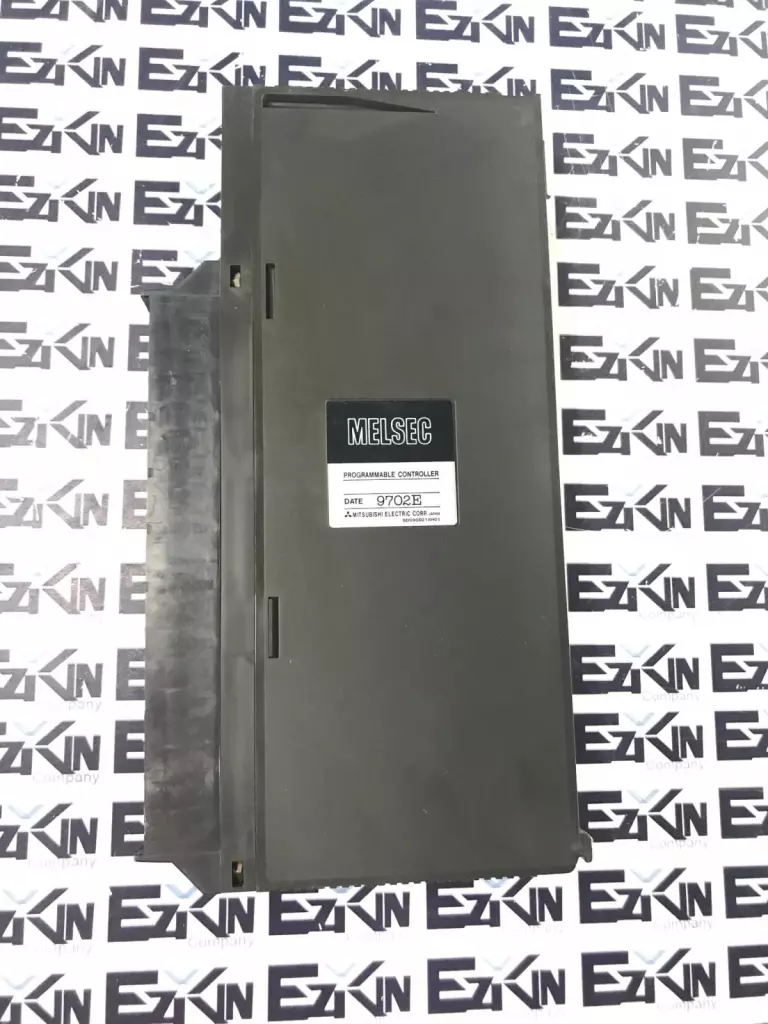

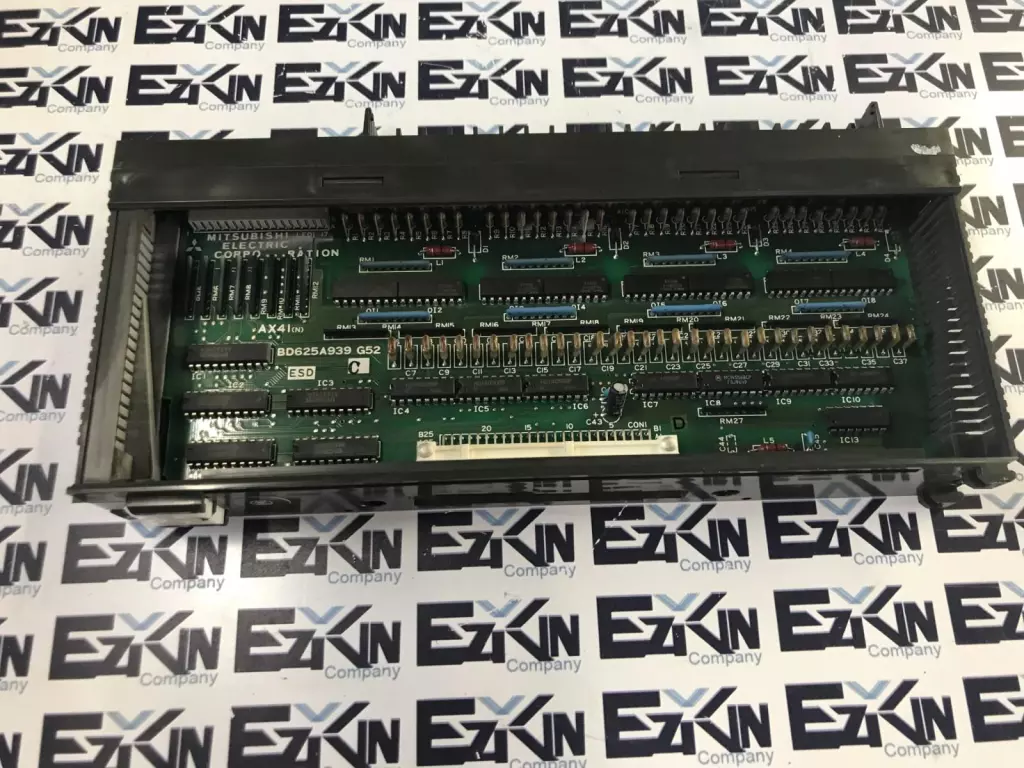

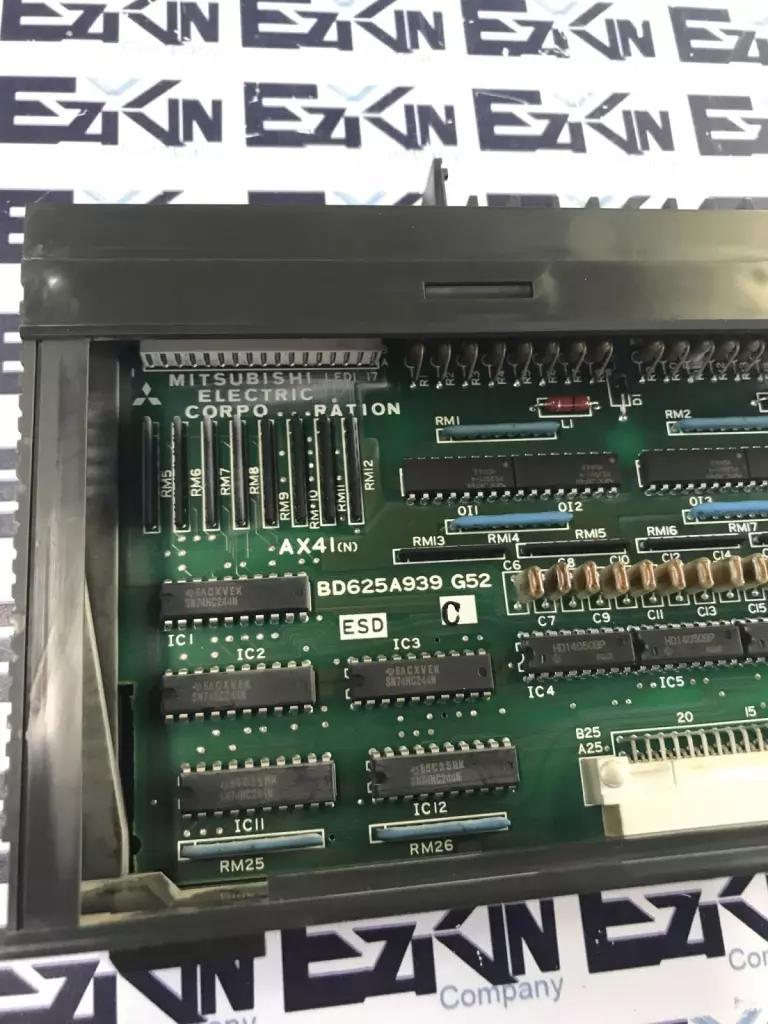

Mitsubishi Electric AX41 Melsec Programmable Controller (Cover Missing)

Digital input module designed for Mitsubishi MELSEC AnS/An series programmable controllers. It provides reliable high-speed signal acquisition for industrial automation systems using 24 VDC-level input devices.

Technical Specifications:
Model: AX41
Series: MELSEC-AnS / MELSEC-An
Type: Digital input module
Number of Input Points: 32 points
Input Voltage: 24 VDC ±10%
Input Current: 7 mA per point
Input Type: Sink type (common negative)
Response Time: 10 ms max
Input Commons: 8 points/common (4 common terminals)
Rated Insulation Voltage: 300 VAC
Isolation Method: Photocoupler isolation per input
Internal Current Consumption: Approx. 0.2 A at 5 VDC
Terminal Type: Screw terminal block
Mounting: Base-mounted on MELSEC AnS/An series rack
Operating Temperature: 0°C to 55°C
Storage Temperature: -25°C to 75°C
Ambient Humidity: 5% to 95% RH (non-condensing)
Insulation Resistance: ≥5 MΩ (500 VDC)
Dielectric Strength: 500 VAC for 1 minute
LED Indicators: Yes (1 per input channel)
Dimensions: Approx. 130 mm (H) × 35 mm (W) × 90 mm (D)
Weight: Approx. 0.3 kg
Manufacturer: Mitsubishi Electric
Made in: Japan Please review pictures carefully and let us know if you have any questions!
