Out of stock

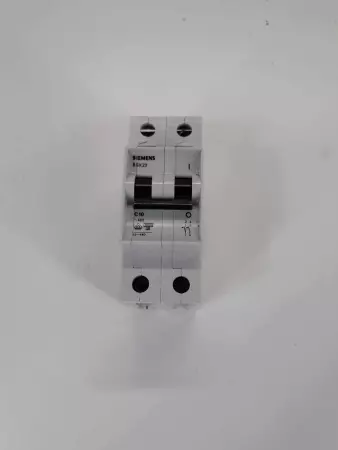

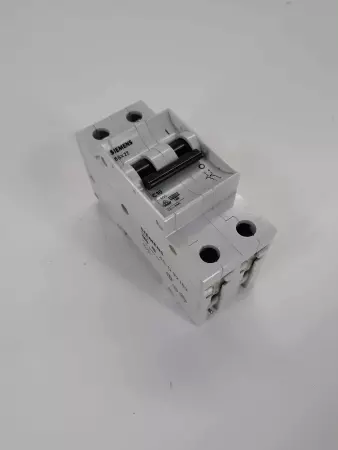

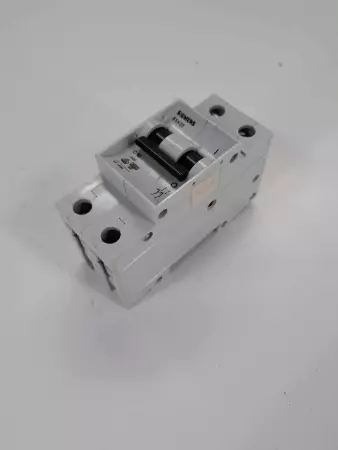

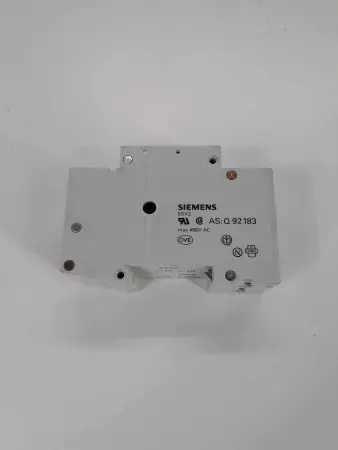

Compact miniature circuit breaker suitable for industrial and commercial use; provides overload and short-circuit protection; designed for DIN-rail mounting; part of the 5SX2 series. Technical Specifications: Manufacturer: Siemens AG Country of Manufacture: Germany Series: 5SX2 Model: 5SX22 C10 (Catalog No. 5SX2-210-7) Type: Miniature Circuit Breaker (MCB) Poles: 2-Pole Rated Current: 10 Amps Rated Voltage: 400 VAC (commonly listed; usage up to 480 VAC implied by similar models) Trip Characteristic: C-Curve, thermal-magnetic protection (moderate inrush capacity) Protection Type: Thermal-magnetic overcurrent Mounting: DIN-rail (EN 60715) (standard for Siemens 5SX2 series) Terminal Type: Screw terminals Standards: IEC/EN 60898 compliant (general standard for such breakers) Housing: Molded thermoplastic, flame-retardant Approximate Dimensions: Similar to 5SX2 series—approx. 90 mm (H) × 36 mm (W) × 76 mm (D) Approximate Weight: ~0.15–0.28 kg (0.3–0.6 lb) (typical for 2-pole MCBs in this series) Operating Temperature: –25 °C to +45 °C (derating above) Storage Temperature: –40 °C to +70 °C Connection Capacity: Rigid/stranded conductors (sizes per series standard up to ~25 mm²) Impulse Withstand Voltage (Uimp) and Rated Insulation Voltage (Ui): as per series typical—Ui 500 V, Uimp 4 kV Life Expectancy: ~20,000 mechanical operations (typical for similar Siemens MCBs) Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.10
Depth: 4.00
Length: 6.00
Width: 4.00
SKU: 8243
