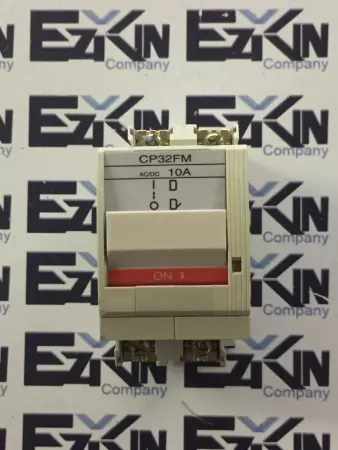

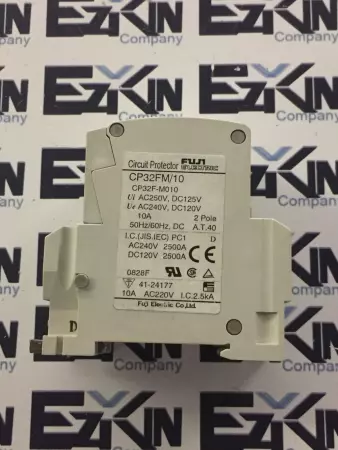

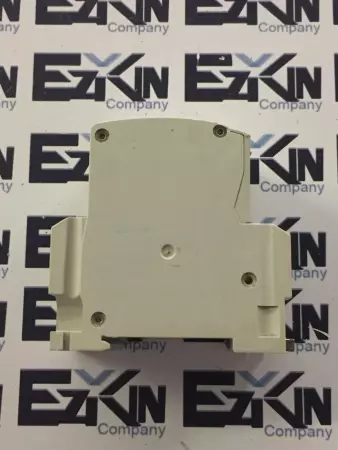

Fuji Electric CP32FM/10 Circuit Protector 220VAC/125VDC 10Amp

Miniature circuit protector designed for protection of control circuits and branch loads in industrial panels. Offers reliable overcurrent protection with a compact form factor and high interrupting capacity. Technical Specifications: Model: CP32FM/10 Rated Current: 10 A Poles: 1P (single-pole) Rated Voltage: 220 VAC / 125 VDC Rated Frequency: 50/60 Hz Interrupting Capacity: – 220 VAC: 2.5 kA – 125 VDC: 2.5 kA Insulation Voltage (Ui): 250 V Frame Size: 32AF Trip Type: Thermal-magnetic Mounting: DIN rail Terminals: Screw type Reset Mechanism: Manual toggle Housing Color: Gray Ambient Temperature: Typically 40°C standard Certifications: UL, CSA, CE Manufacturer: Fuji Electric Made in: Japan Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.40

Depth:   16.00

Length:   12.00

Width:   10.00

SKU:   832 4.S9.9.2
