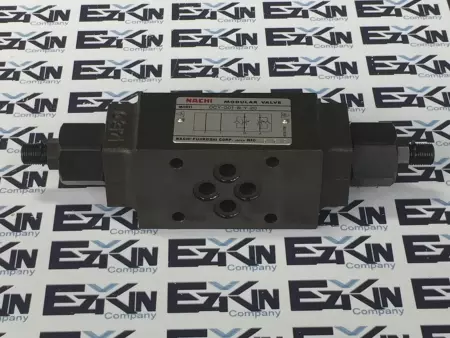

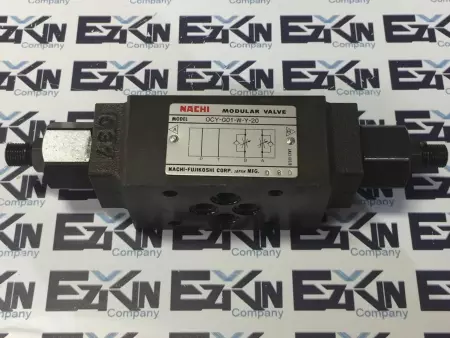

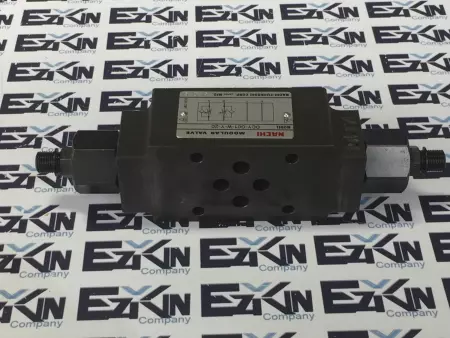

Nachi OCY-G01-W-Y-20 Flow Regulator Modular Valve

Modular type hydraulic flow control valve designed for controlling actuator speed by regulating flow rate in industrial hydraulic systems. The valve mounts between directional valves and subplates for compact integration. Technical Specifications: Model: OCY-G01-W-Y-20 Valve Type: Modular flow control valve with pressure compensation Mounting: G01 (NG6 / CETOP 3 / ISO 4401-03) subplate mounting Function: Adjustable flow regulator with check valve (allows free flow in one direction and controlled flow in reverse) Port Configuration: P → A/B (modular sandwich type) Flow Control Range: Typically up to 20 L/min (varies with application) Operating Pressure: Max 25 MPa (250 bar) Adjustment Type: Manual knob with locking feature Check Valve Cracking Pressure: Standard 0.05 MPa Mounting Surface: ISO 4401-AB-03-4-A Seal Material: Nitrile (standard), FKM optional Body Material: High-strength cast iron Weight: Approx. 1.8–2.1 kg Temperature Range: -20°C to +70°C (fluid and ambient) Hydraulic Fluid: Mineral oil-based hydraulic fluids (ISO VG32, VG46) Filtration Requirement: ISO 4406 18/14 or better Manufacturer: Nachi-Fujikoshi Corp. Made in: Japan Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.08

Depth:   6.00

Length:   8.00

Width:   10.00

SKU:   851 4.S5.14.2
