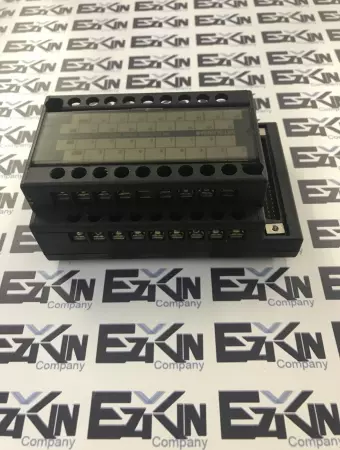

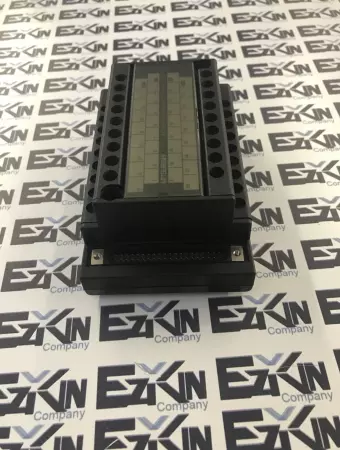

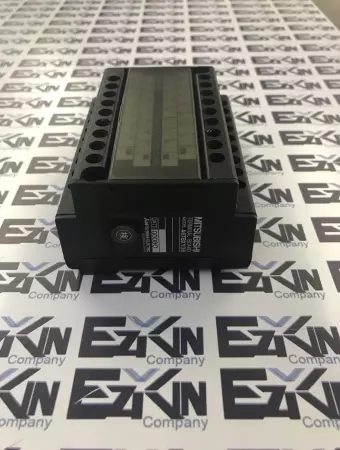

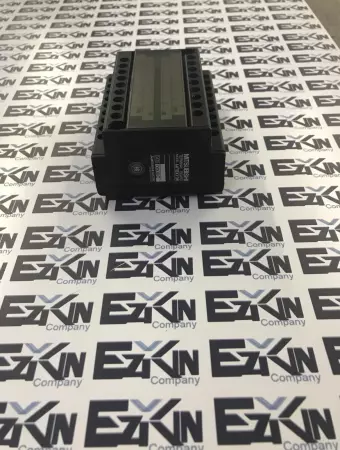

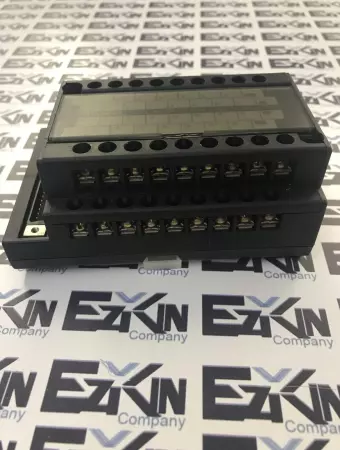

Mitsubishi Electric A6TBXY36 I/O Terminal Block, 18 In 18 Out

Interface terminal block used for simplifying the wiring of input/output signals between PLC modules and field devices. Designed for quick connection with Mitsubishi MELSEC PLCs via flat ribbon cables. Technical Specifications: Model: A6TBXY36 Type: I/O Terminal Block Connection Points: 36 terminals (18 input + 18 output signals) Connector Type: 40-pin flat cable connector (for direct PLC module connection) Signal Type: Digital (discrete I/O) Compatible Modules: Fits I/O modules from MELSEC-A series (e.g., AX, AY series) Terminal Type: Screw terminals (1:1 wiring to field devices) Applicable Wire Size: 0.3 mm² to 2.0 mm² (AWG 22–14) Rated Voltage: 30 VDC / 250 VAC max Rated Current: 2 A per terminal Mounting Method: DIN rail or panel mounting Insulation Resistance: ≥100 MΩ (500 VDC) Dielectric Strength: 500 VAC for 1 minute Ambient Operating Temperature: 0°C to 55°C Storage Temperature: -25°C to 75°C Humidity Range: 5% to 95% RH (non-condensing) Dimensions: Approx. 160 mm (L) × 60 mm (H) × 40 mm (D) Weight: Approx. 300 g Manufacturer: Mitsubishi Electric Made in: Japan Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.60

Depth:   4.00

Length:   10.00

Width:   8.00

SKU:   856 4.S7.10.5, 4.S7.9.2
