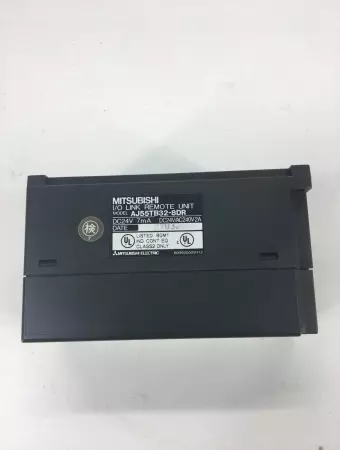

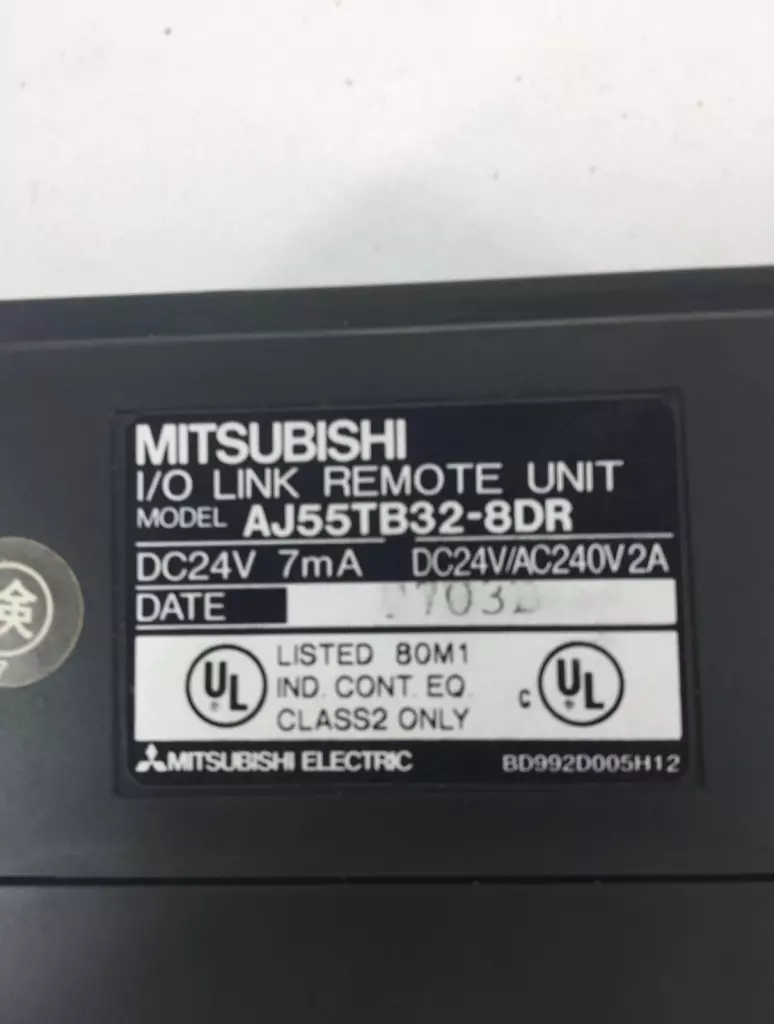

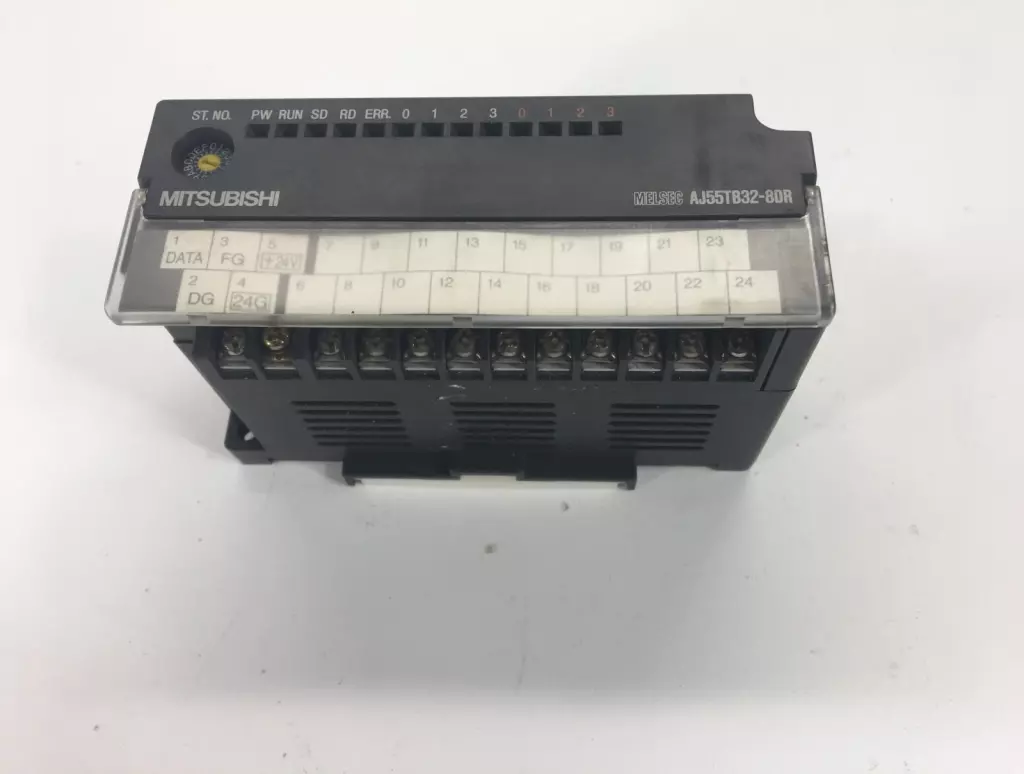

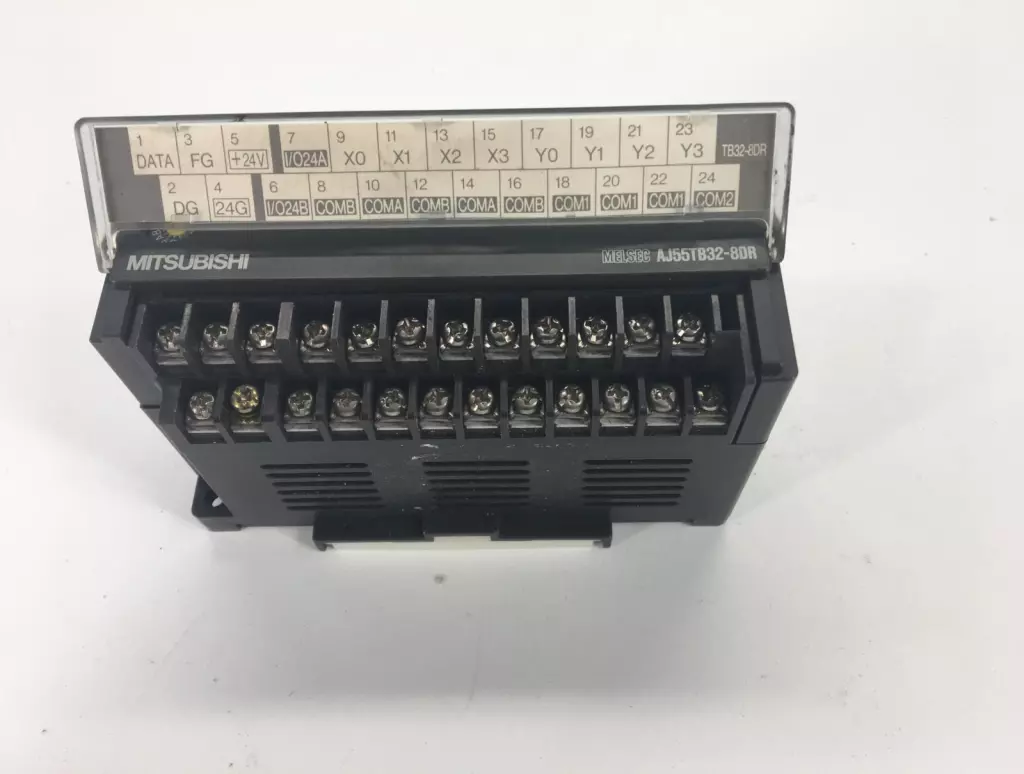

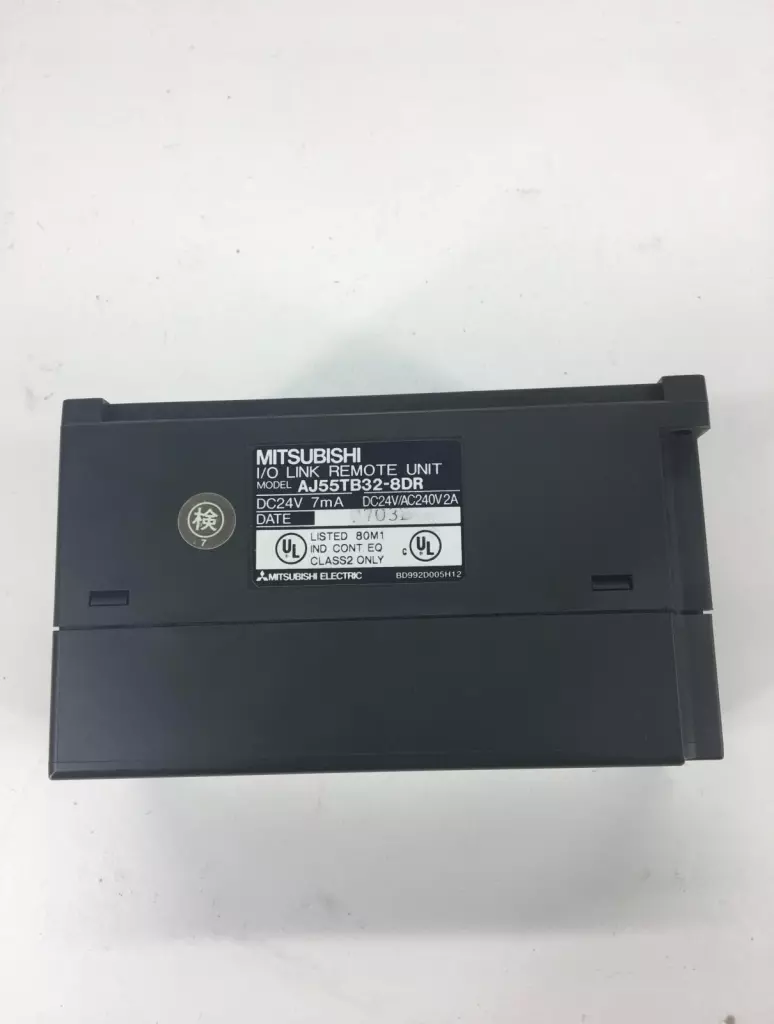

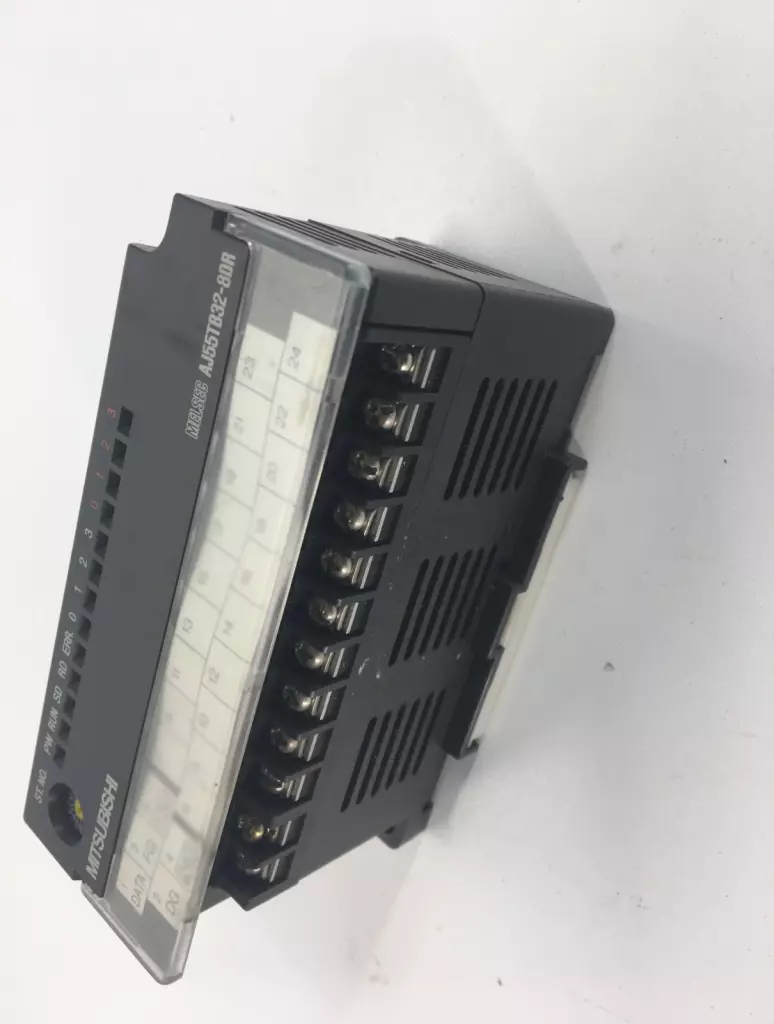

Mitsubishi Electric AJ55TB32-8DR I/O Link Remote Unit, 12 In 12 Out

Remote I/O terminal block designed for use with Mitsubishi MELSEC networked PLC systems. It facilitates distributed control by linking remote digital I/O points over a communication network like CC-Link.

Technical Specifications:
Model: AJ55TB32-8DR
Type: I/O Link Remote Terminal Block
Number of I/O Points: 24 points total (typically 12 inputs + 12 outputs or configurable)
Rated Input Voltage: 24 VDC
Input Current: 7 mA
Output Voltage: DC 24 V / AC 240 V
Output Current: 2 A (per point max)
Power Supply Type: Class 2 (UL listed)
Mounting: DIN rail or panel mount
Indicator: LED indicators for I/O status per channel
Connection Type: Removable terminal block wiring
Network Compatibility: I/O Link or CC-Link remote I/O
Ambient Operating Temperature: 0°C to 55°C
Storage Temperature: -25°C to 75°C
Ambient Humidity: 5% to 95% RH (non-condensing)
Certifications: UL Listed (80M1), CE compliant
Manufacturer: Mitsubishi Electric
Made in: Japan Please review pictures carefully and let us know if you have any questions!
