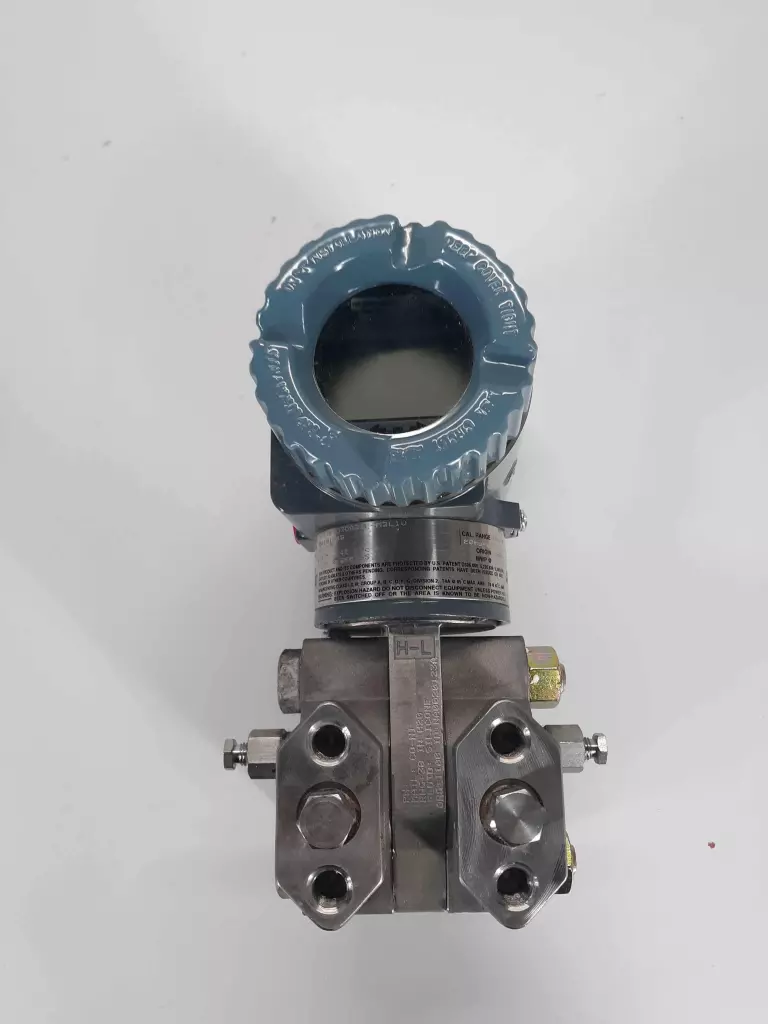

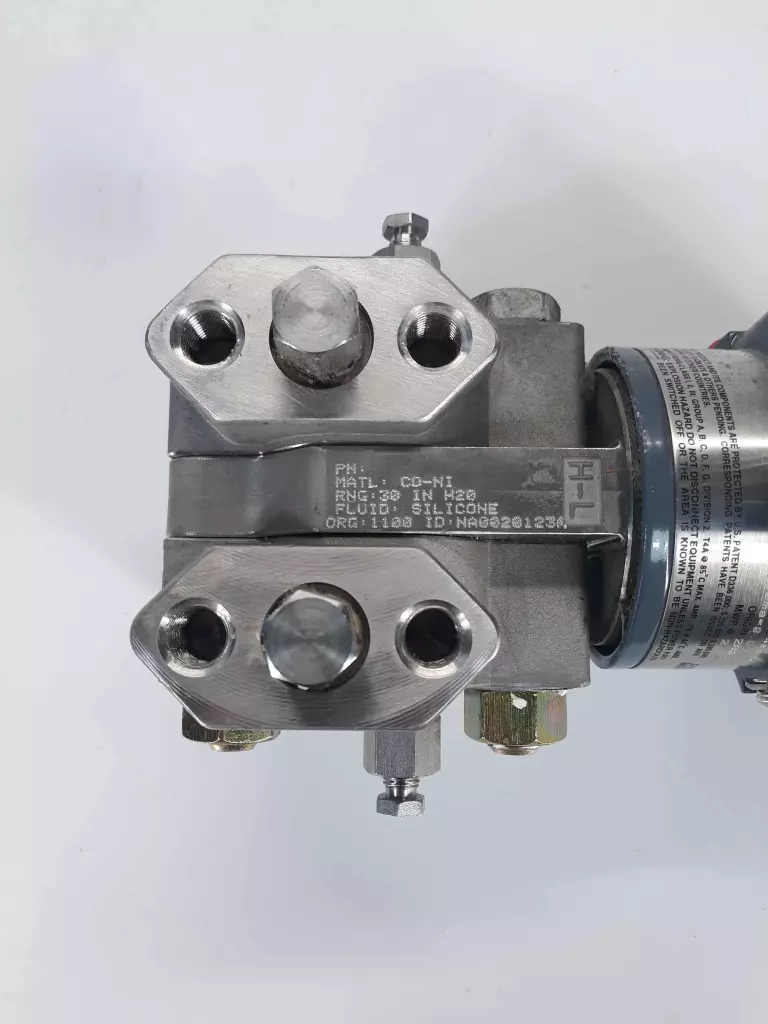

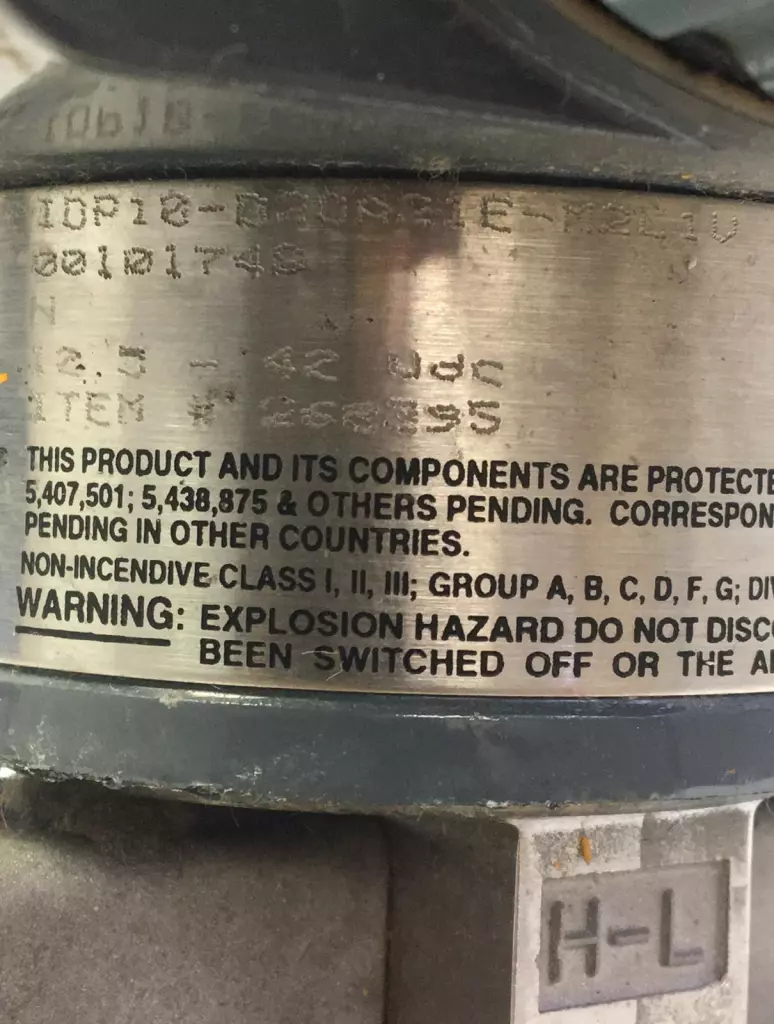

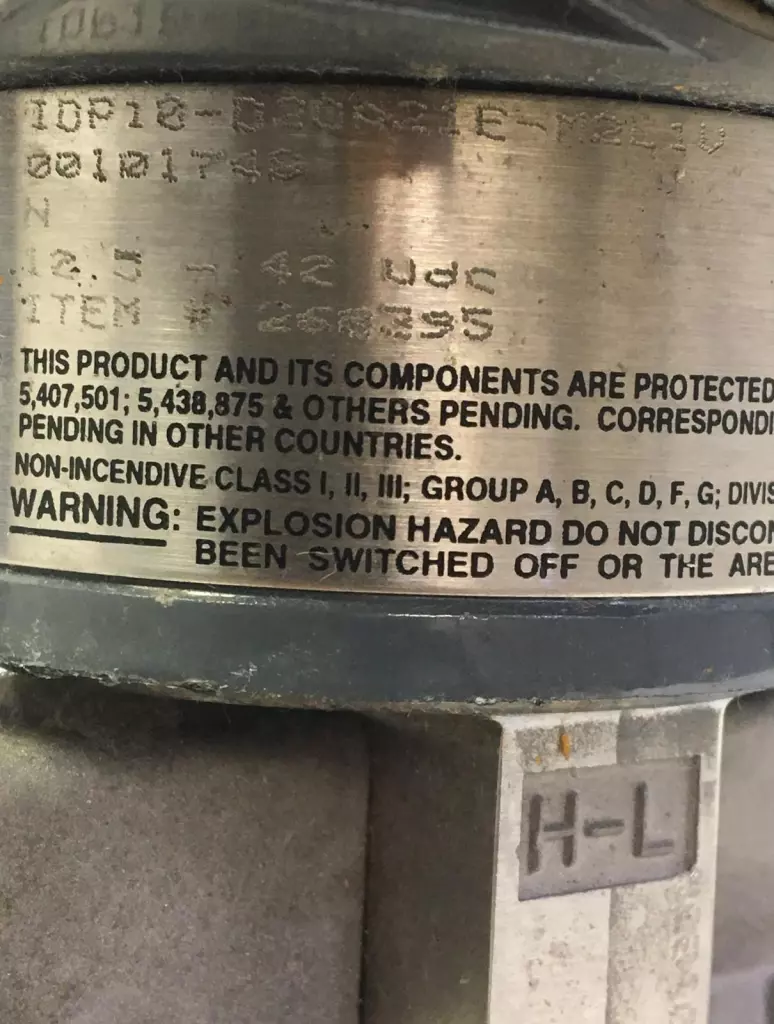

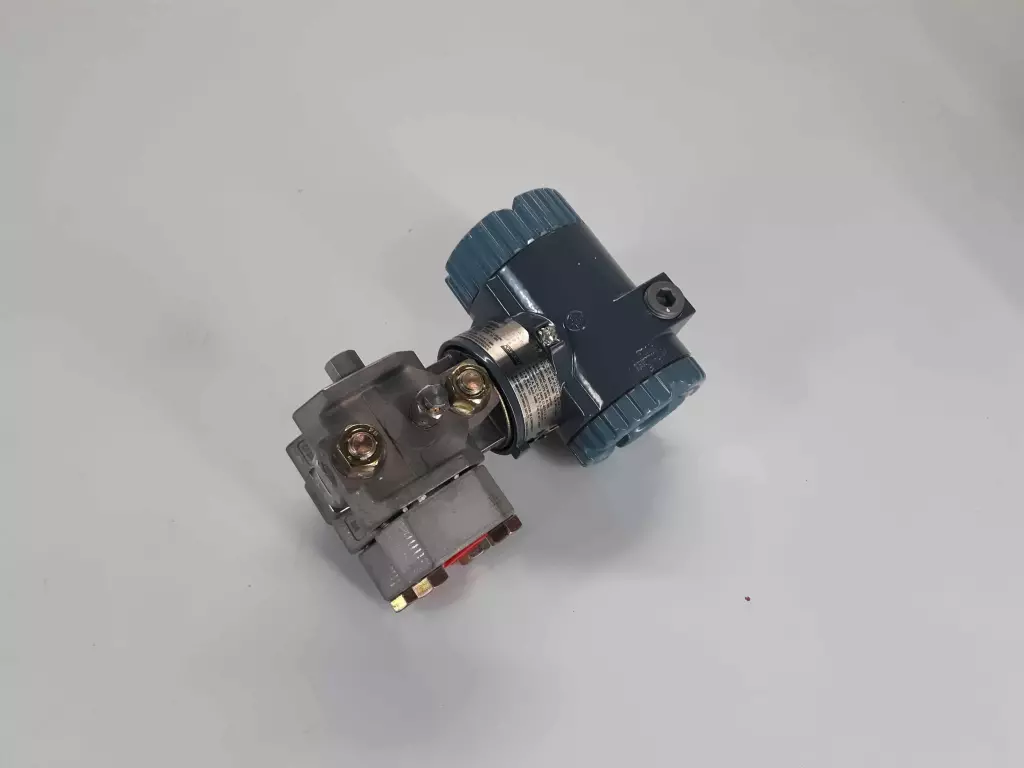

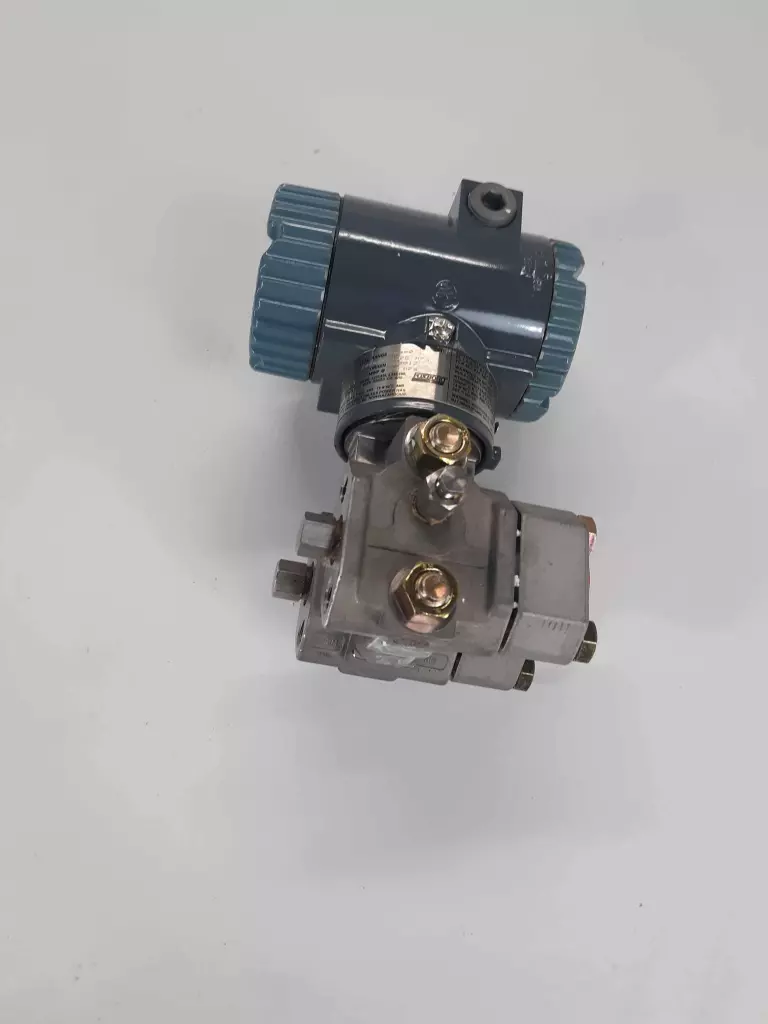

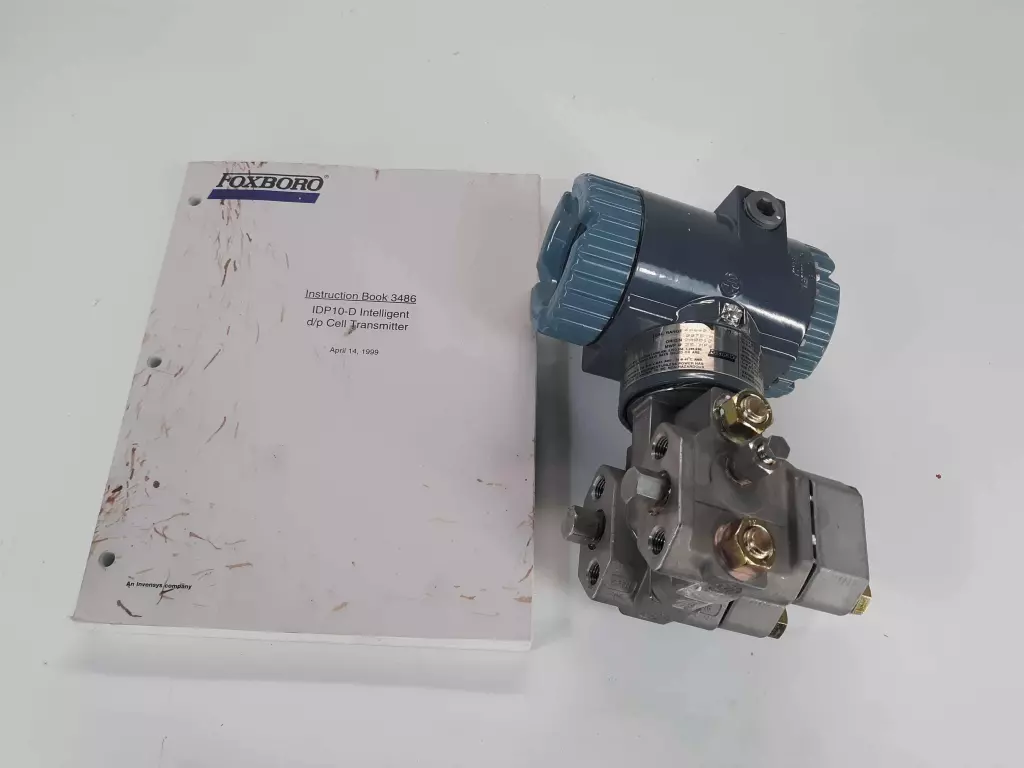

Foxboro IDP10 Differential Pressure Transmitter

The Foxboro IDP10 is a high-performance differential pressure transmitter designed for precise and reliable pressure measurement in industrial applications. It provides a 4-20 mA analog output with HART communication, allowing for remote configuration and monitoring. Technical Specifications: Measurement Type: Differential Pressure Accuracy: ±0.05% of calibrated span (digital mode), ±0.060% (4-20 mA mode) Output Signal: 4-20 mA with HART protocol Sensor Materials: 316L Stainless Steel, Co-Ni-Cr, Hastelloy C, Monel, or Tantalum Pressure Range: 0.5 inches H₂O to 3000 psi Housing Material: Aluminum (epoxy-coated) or 316 Stainless Steel Ingress Protection: NEMA 4X / IP66 Configuration: Local LCD with pushbuttons or remote via HART Operating Temperature: -40 to 185°F (-40 to 85°C) 12.5-42Vdc, Range: 0-75 mbar Please review pictures carefully and let us know if you have any questions!

Condition: New – Open box

Weight:   9.11

Depth:   6.00

Length:   12.00

Width:   9.00

SKU:   8754 4.S7.14.6
