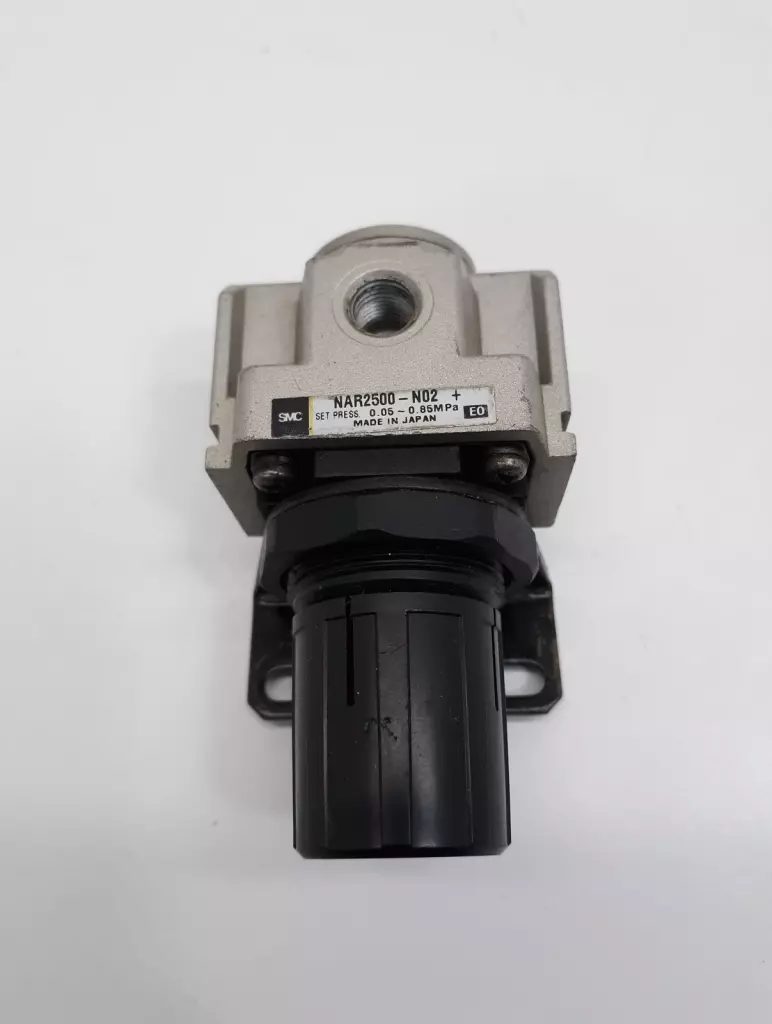

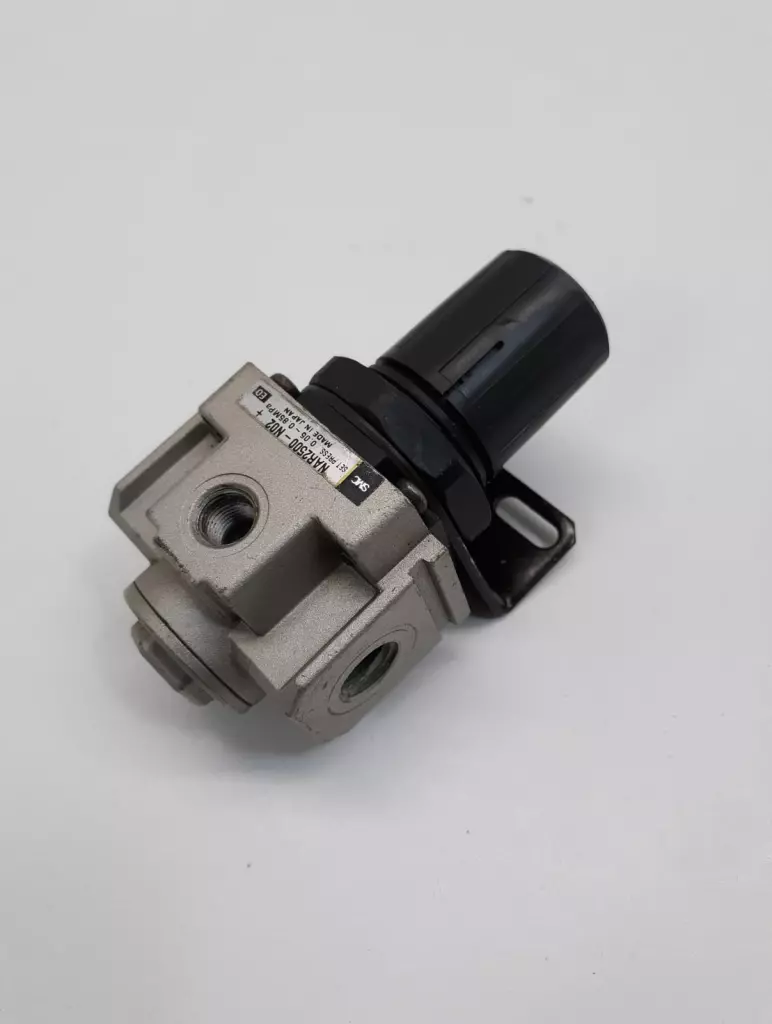

SMC NAR2500-NO2 Air Pressure Regulator 0.05-0.85MPa

Precision air pressure regulator from SMC’s NAR series designed to provide stable outlet pressure in pneumatic systems. Ideal for applications requiring fine control and quick response in industrial automation. Technical Specifications: Model: NAR2500-N02 Type: Air pressure regulator Port Size: 1/4" (NPT thread) Set Pressure Range: 0.05 to 0.85 MPa (7 to 123 psi) Max Operating Pressure: 1.0 MPa (145 psi) Proof Pressure: 1.5 MPa (217 psi) Regulating Method: Relieving type (vent to atmosphere) Gauge Port: 2 ports (1/8" NPT), located on both sides Ambient & Fluid Temperature: -5°C to +60°C (no freezing) Repeatability: ±0.5% F.S. Sensitivity: ≤0.2% F.S. Exhaust Capacity: High-flow type for quick venting Mounting Style: Bracket or panel mount (optional) Body Material: Aluminum die-cast Seal Material: NBR (standard) Weight: Approx. 300 g Manufacturer: SMC Corporation Made in: Japan Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   1.00

Depth:   4.00

Length:   7.00

Width:   7.00

SKU:   876 4.S7.13.4
